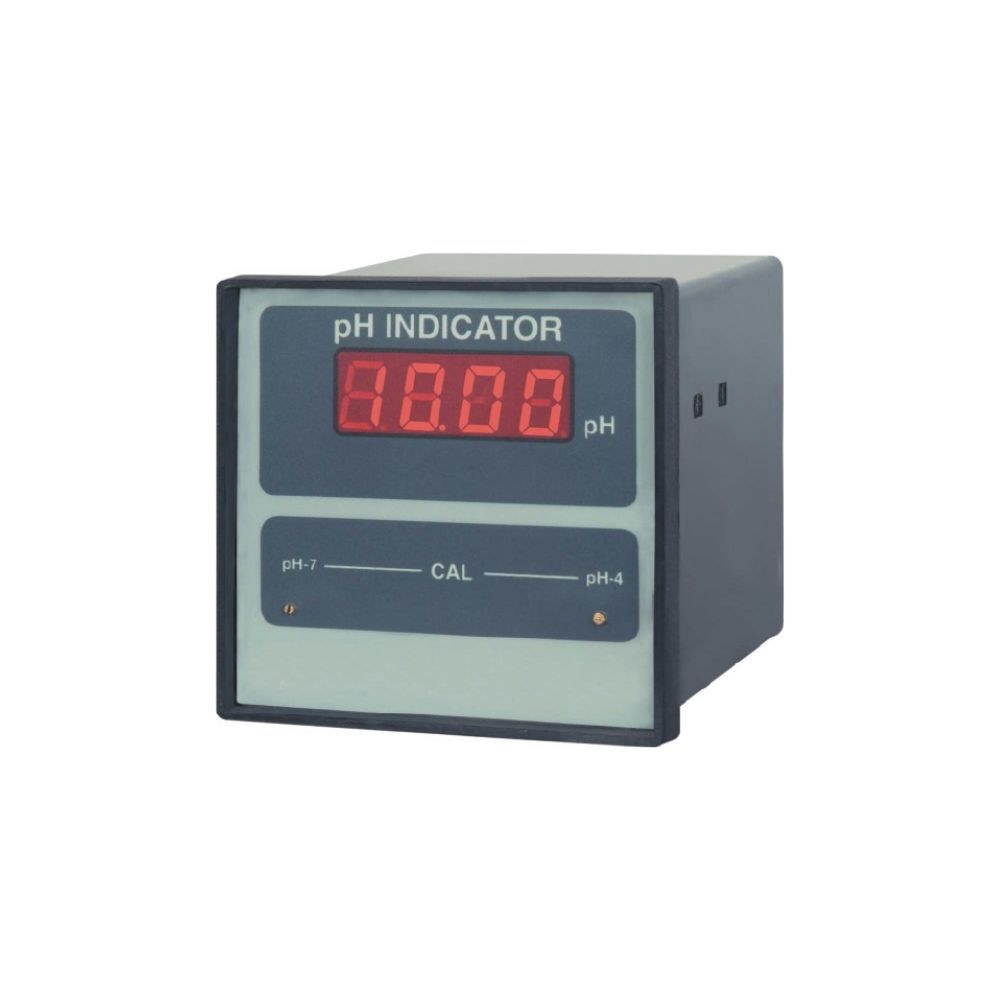

PH1012 : PH Transmitter

Model : PH1012
Download  :

Description

PH Transmitter With Display In Ip67 Enclosure

PH1012 PH Transmitter is one easy-to-use panel mounting transmitter for continuous monitoring. Available with a bright red LED display, the meter can display the PH of your solution together with very high accuracy. With Internal temperature compensation, PH1012 delivers fast and high accuracy. Precision pH transmitter immediately detects changes in solution pH. With a 230V AC power supply, This instrument features a BNC composite electrode making it easier in the world to facilitate the replacement of used electrodes.

Features
  • Precision Online Indication of Total Dissolved Solids.
  • Automatic Temperature Compensation.
  • Front Panel 5 Range Selection from 19.99µS/cm to 199.9 ms/cm.
  • Cell Factor of 1.0 or 0.1 Selectable from the front panel.
  • Bright Red LED Display.
  • Powder Coated Metallic Cabinet.
  • Fast response times of less than 3 seconds.

Additional information

pH Range

0.00- 14.00

Accuracy

±0.5% of F.S Typ ± 1 Digit

Operating Temp.

– 20°C to 70°C

Storage Temp.

– 30°C to 85°C

Power Supply

230V AC

Electrode Connection

BNC Pins

Display

3 1/2 Digit, 12.5mm LED Display

Electrode Type

mV

Output

4-20 mA, 2 Wire

Enclosure

Flame Retardant ABS Moulded Housing

Calibration

pH4 and pH 7 Calibration
