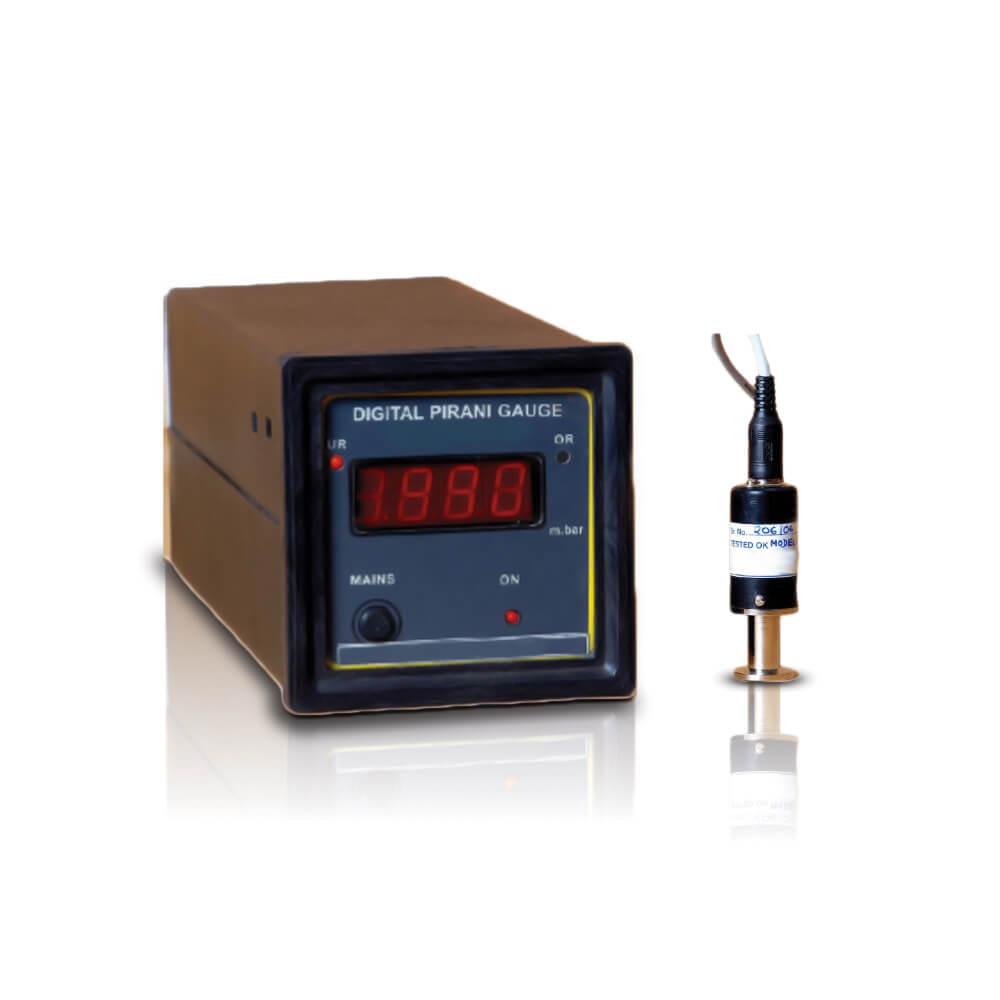

PVG : Digital Pirani Gauge

Model : PVG
Setting : By 4 keys on the front stainless steel panel
Buzzer : Integrated buzzer for Alarm in case of process violation of any of the 3 parameters
Supply Voltage : 24VDC, 250mA/ Optional Any Other Required Voltage
Mounting : Wall mounting / Modular Wall mounting with Stainless Steel Front Flush Plate for Clean Rooms
Sensors : Integrated Humidity & Temperature Sensor flushed to front plate Built in differential pressure sensor with Brass Hose Nipples (Chrome Plated) for Differential Pressure At Rear ( 4nim x 2 Nos.)
Communication : RS 485 Modbus Protocol (Optional)
Dimension : Enclosure : 74(W) X 72(H) X 40(D) mm. Stainless Steel Front Plate : 110W x 90 (H) mm
Enclosure : M.S. Powder Coated Body with Stainless Steel Front Flush Plate for Modular Wall Mounting /Optional Brick Wall Mounting
Download
Download

Description

Applications :

These are Digital Indicators for the measurement of high vacuum in the Pirani Range upto 0.001 mBar. The indicator is panel mounting type with a Pirani Gauge Head (Sensor) which can be clamped onto the point of measurement using a KF Clamp fitting. Models are available for vacuum measurement from 999 mBar (Atmospheric) to 0.001 mBar (1 micron) & from 1 mBar to 0.001 mBar (1 micron) depending on the application. The display is an intelligent 3 Digit 7 segment LED display with auto decimal resolution setting.

All Pirani Gauges are based on the principle of measurement of thermal conductivity of gases. The Digital Pirani Gauges come with a single gauge head or a dual gauge head enabling the use of one instrument to measure the vacuum of 2 points. The Digital Pirani Gauge is a direct replacement for the conventional Analog Pirani Gagues & is mains operated on Single Phase , 230 V.A.C. supply.
