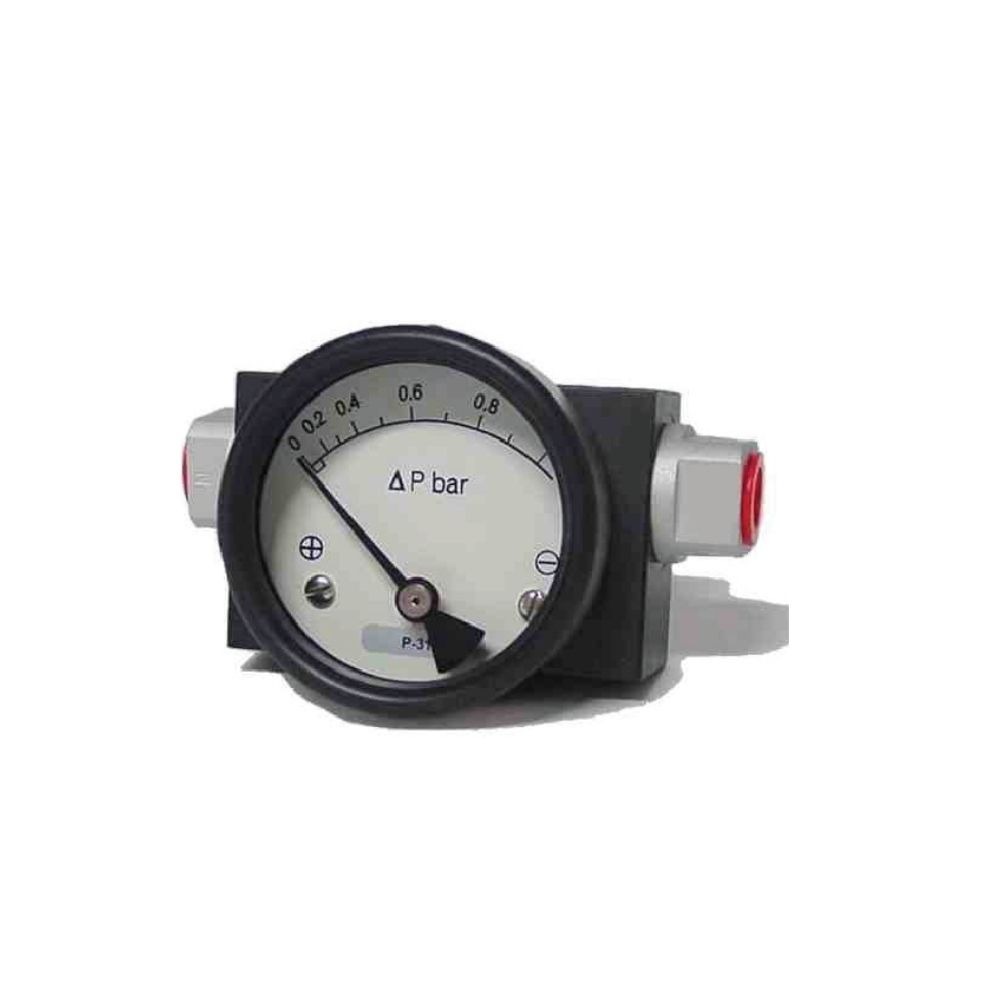

PGDP : Differential Pressure Switch With Indication
|
||||||
Description
Differential Pressure Switch With Indication
Applications
Food & beverage, pharmaceutical, cryogenics, chemical & petrochemical industries, conventional & nuclear power Plants, pumps, hydro-cleaning machines, presses, engine compressors, turbines, diesel engines & refrigerating plants.
Features
- Field Adjustable.
- Compact and Reliable.
- Snap Action Microswitch with Piston.
Additional information
| Sensor | AISI 316L SS Piston |
|---|---|
| Wetted Parts | AISI 316LSS |
| Enclosure | SS304, Weatherproof to IP 65 |
| Ambient temperature | -40°C to + 120 °C |
| Process temperature | -40°C to 120 °C |
| Operating pressure | 75% of the Scale Value |
| Process Media | Air, Oil and Water |
| Scale Accuracy | ±1% of F.S.R |
| Repeatability | ±0.5% of F.S.R |
| Differential | Field Adjustable |
| Mounting | Direct / Panel |
| Process Connection | 1/4” BSP (F) |
| Contact Rating | 175V AC or DC, 0.25 Amp AC or DC |
| Switch | Snap Action Microswitch |
| Dial Size | 2.5”, 4”, 6” |
