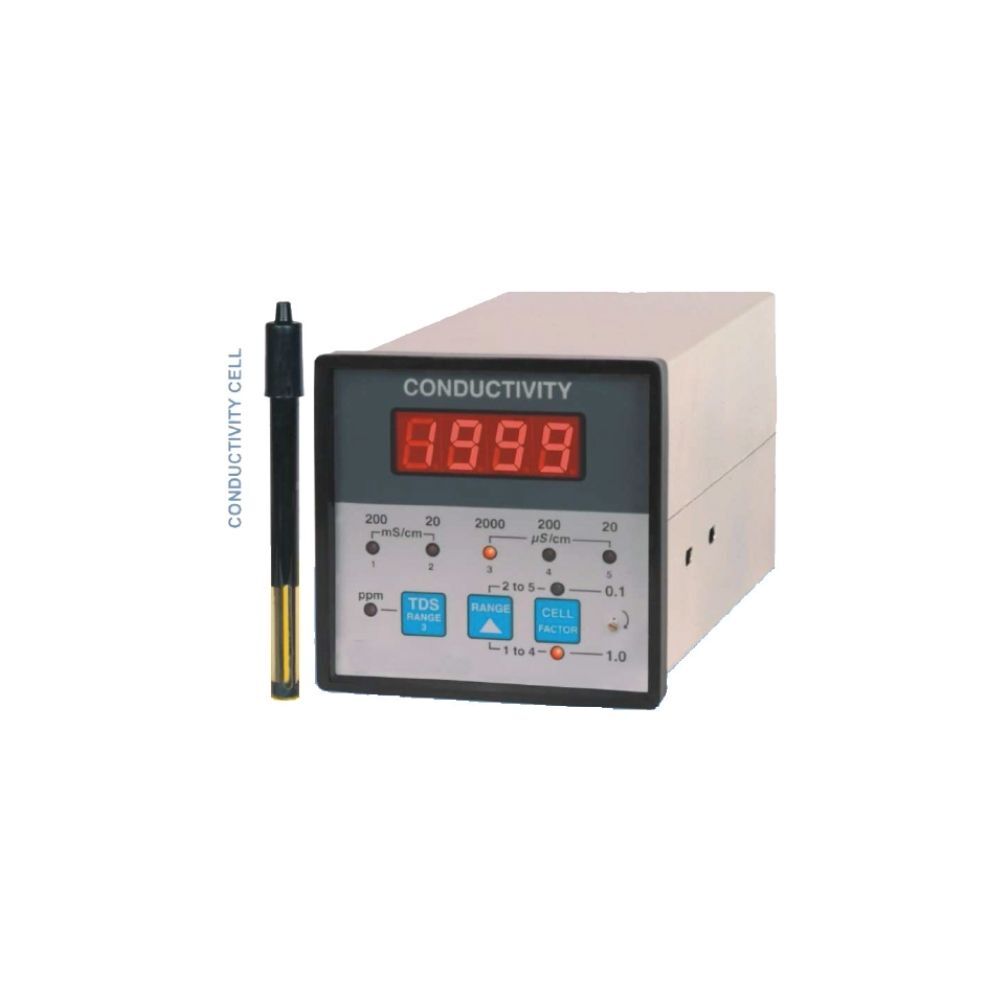

TDS693 : TDS Transmitter
TDS Transmitter With Display In Ip67 Enclosure
TDS-693 TDS Transmitter is one easy to use Panel Mounted transmitter for continuous monitoring. Available with 4 digits LED display, the transmitter can transmit the TDS value of your solution with very high accuracy with the added option of self-calibration. With Automatic temperature compensation, TDS693 delivers fast and high accuracy. Precision TDS transmitter immediately detects changes in the conductivity of the solution. With a 230V AC power supply, the instrument features composite electrodes making it easier in the world to facilitate the
replacement of used electrodes.
- Precision Online Indication of Total Dissolved Solids.
- Automatic Temperature Compensation.
- Front Panel 5 Range Selection from 19.99µS/cm to 199.9 ms/cm.
- Cell Factor of 1.0 or 0.1 Selectable from the front panel.
- Bright Red LED Display.
- Powder Coated Metallic Cabinet.
- Fast response times of less than 3 seconds.
0 – 1000 ppm / 0 – 5000 ppm (Can be calibrated as per requirements)
– 20°C to 70°C
– 30°C to 85°C
±0.5% of F.S Typ ± 1 Digit
4-20 mA, 2 Wire
Total Dissolved Solids Factor can be read directly in ppm on the
IP67 Fireproof ABS Enclosure
Through Trimpot on the front facia
