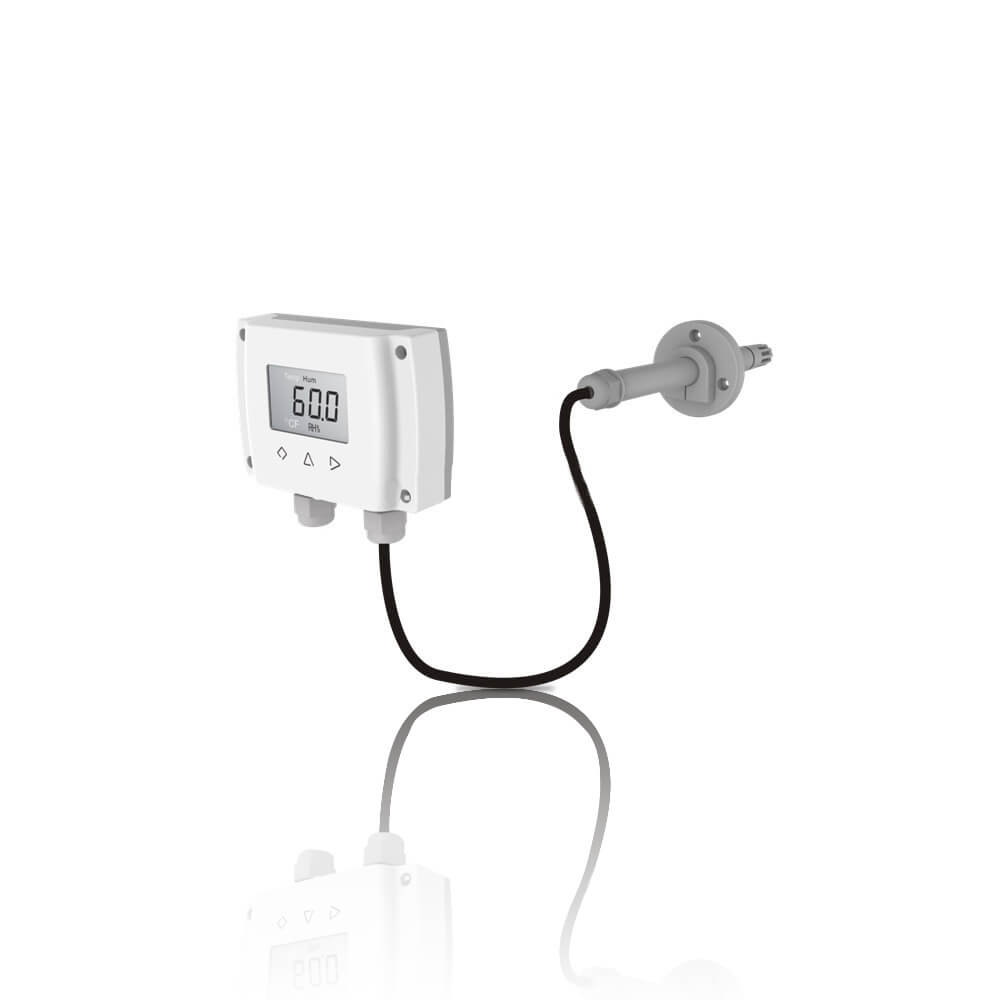

H4N : Remote Mount Humidity Temperature Transmitter
|
Description
Features :
 |
High-performance digital sensors and circuits, ensure accurate measurement and temperature compensation |
|
Good long term stability and reliability |
|
100% field changeable sensors, no re-calibration needed |
|
Fast response |
|
Digital technology applied, multiple outputs optional, over-voltage and reverse polarity protection, high reliability, and interference capability |
|
Industrial design, SS probe, and selectable filter |
|
High protection rate up to IP65 |
Applications :
H2, 3, and 4 humidity and temperature transmitters are designed for environmental monitoring and controlling in industrial and commercial buildings. These transmitters can be used for:
|
Humidity and temperature monitoring of supply, exhaust and return air (H2, duct mount) |
|
Humidity and temperature monitoring in the critical environment such as outside air (H3, outside mount) |
|
Other applications of immersion humidity and temperature monitoring (H4, separate probe) |
Additional information
| Relative Humidity - Sensor | : Digital polymer |
|---|---|
| Relative Humidity - Range | : 0~100%RH |
| Relative Humidity -output | : 4~20mA(2 wires), 0~10VDC(3 wires), RS485 |
| Relative Humidity - Accuracy | : 2,3,4.5%RH(25°C,20~80%RH) |
| Relative Humidity - Hysteresis | : <±1%RH |
| Relative Humidity - Response time | : <10s(25°C,in slow air) |
| Relative Humidity - Drift | : <±0.5%RH/year |
| Temperature - Sensor | : Solid state band gap, RTD or thermistor |
| Temperature - Range | : 0~50°C,0~100°C, -40~60, or others (transmitter) |
| Temperature - Output | : 4~20mA(2 wires), 0~10VDC(3 wires), RS485, or |
| Temperature - Accuracy | : see model table |
| Temperature - Power | : Current 7.5~36VDC Voltage & Other 15~35VAC/DC |
| Temperature - Output Load | : <600 ohm (current), >2Kohm (voltage) |
| Temperature Limit | : -40~85°C, 0~95%RH (Non condensing) |
| Temperature - Storage Temperature | : -40~80°C |
| Temperature - Housing | : Fireproof ABS Enclosure, SS probe, SS mesh filter or |
| Temperature - Protection | : IP65 |
