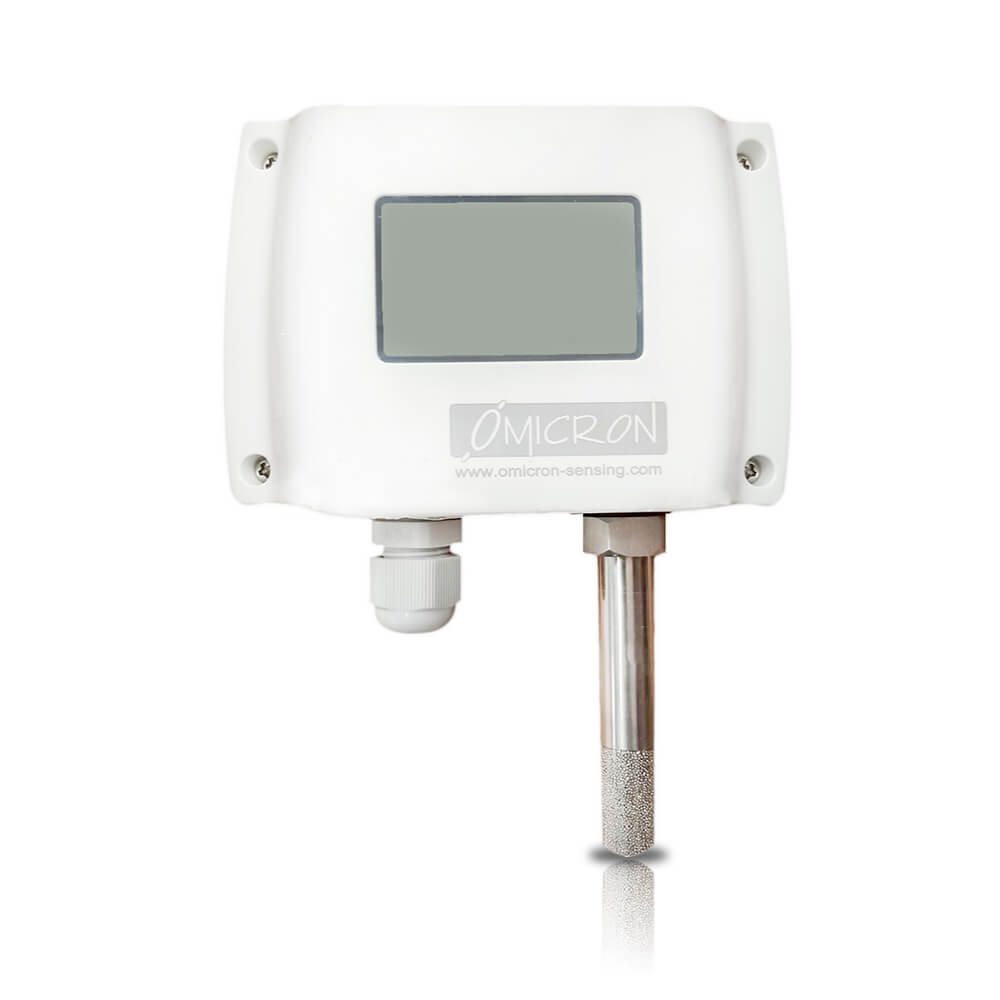

H3N : Wall Mount Humidity Temperature Transmitter
| ||||||||||||||||||
Description
Features :
 | High performance digital sensors and circuits, ensure accurate measurement and temperature compensation |
 | Good long term stability and reliability |
 | 100% field changeable sensors, no re-calibration needed |
 | Fast response |
 | Digital technology applied, multiple output optional, over voltage and reverse polarity protection, high reliability and \interference capability |
 | Industrial design, SS probe and selectable filter |
 | High protection rate up to IP65 |
Applications :
H2, 3 and 4 humidity and temperature transmitters are designed for environment monitoring and controlling in industrial and commercial buildings. These transmitters can be used for:
 | Humidity and temperature monitoring of supply, exhaust and return air (H2, duct mount) |
 | Humidity and temperature monitoring in critical environment such as outside air (H3, outside mount) |
 | Other applications of immersion humidity and temperature monitoring (H4, separate probe) |
Additional information
| Relative Humidity | — |
|---|---|
| Hysteresis | : <±1%RH |
| Response time | : <10s(25°C,in slow air) |
| Drift | : <±0.5%RH/year |
| Temperature | — |
| Sensor | : Solid state band gap, RTD or thermistor |
| Range | : 0~50°C,0~100°C, -40~60, or others (transmitter) |
| Output | : 4~20mA(2 wires) , 0~10VDC(3 wires) , RS485, or |
| Accuracy | : see model table |
| Power | : Current 7.5~36VDC, Voltage & Other 15~35VAC/DC |
| Output Load | : <600 ohm (current), >2Kohm (voltage) |
| Temperature Limit | : -40~85°C, 0~95%RH (Non condensing) |
| Storage Temperature | : -40~80°C |
| Housing | : Fireproof ABS Enclosure, SS probe, SS mesh filter or |
| Protection | : IP65 |
