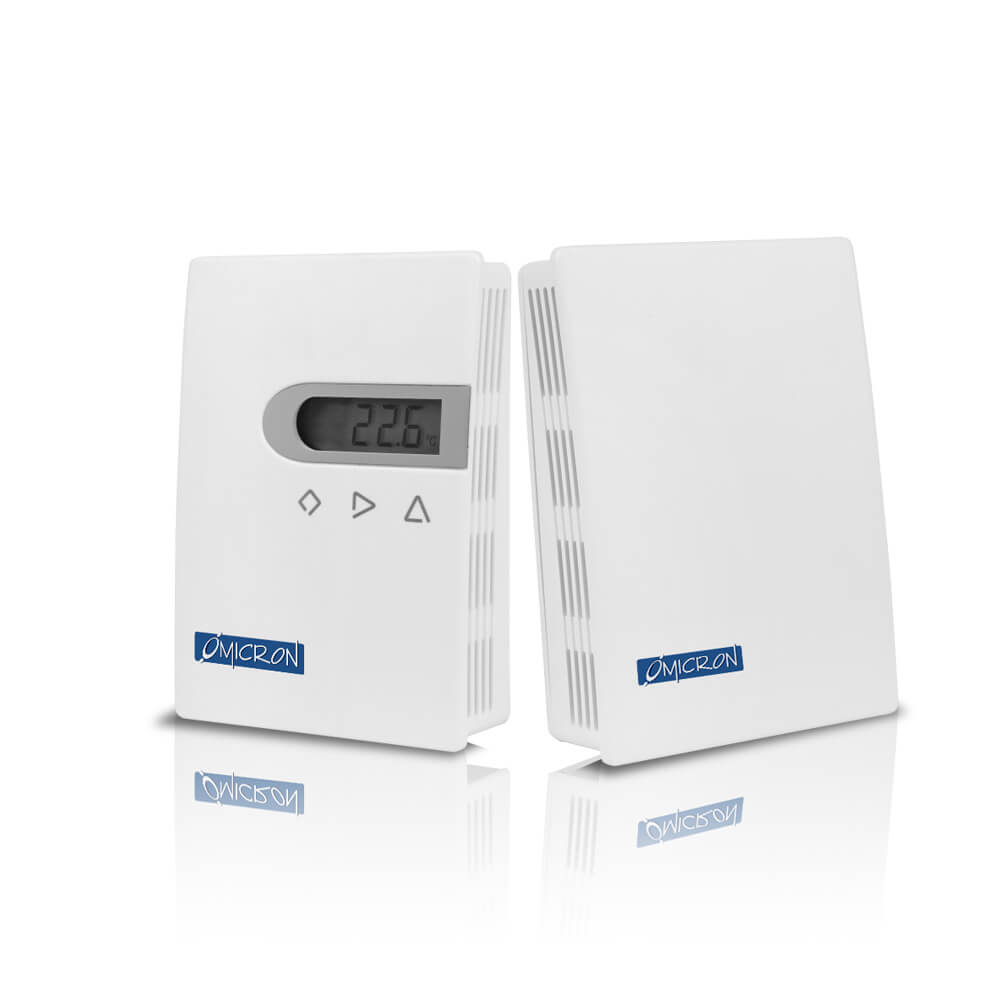

TTD1N : Wall Mount Digital Temperature Sensor

Model : TTD1N
Download

Description

Applications & Features :
TTD1N series are designed for indoor environment temperature measurement
and control
High performance digital temperature sensor, ensure accurate measurement
fast response and good long term stability
Multiple outputs selection, digital technology applied, over voltage and reverse
polarity protection, high reliability and interference capability
Optional relay for alarm or ON/OFF control
Light and state of art housing, easy installation
Wide working temperature range
MMI can set parameters and calibrate output, so that the product becomes a
stand alone

Additional information

Sensor

: Digital temperature sensor

Range

: 0~50°C, 0~100°C, -40~60°C or others

Output

: 4~20mA(3 wires) , 0~10VDC , RS485 / Modbus

Output Load

: ≤600Ω(current), 2KΩ(voltage)

Relay

: 1×SPDT , 1A/30VDC or 0.5A/125VAC

Accuracy

: ≤±0.5°C Power: 18~30VAC/DC

Display

: Optional LCD display Display Resolution: 0.1°C

Work Temperature

: -40~85°C, 0~95%RH (Non condensing)

Storage Temperature

: -40~85°C

Housing

: Fireproof ABS

Protection

: IP30

Agency Approval

: CE

Optional Accuracy

: 0.25°C @ -20 ~105°C (Add “H” after part numbers)
