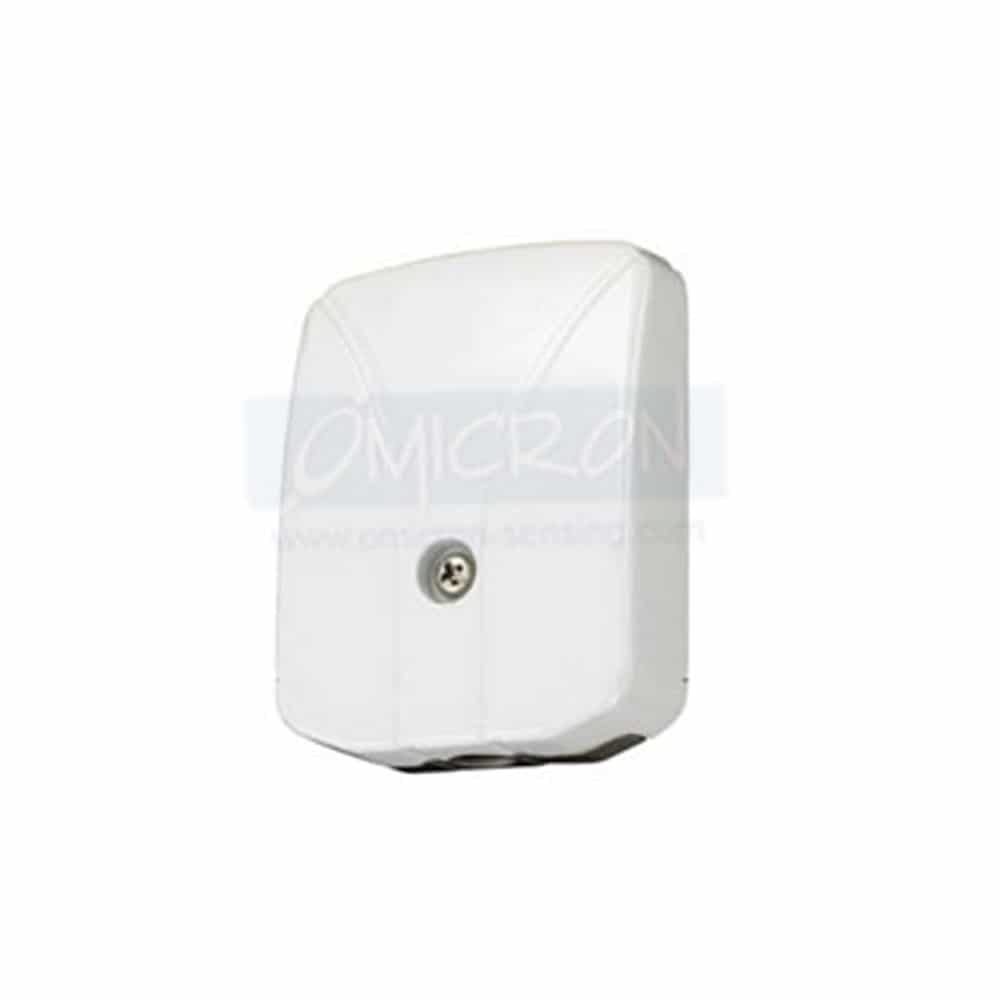

SV100 : Seismic Sensor
|
Description
Description :
The SV100 range of Seismic sensors is designed to detect specific vibrations arising from attempts to penetrate high value storage units, protecting them against intrusion.
The SV100 model is a universal seismic sensor which can be used to protect Vaults, Doors, fixed ATMs, Safes and other solid structures.
The SV100 series offers several unique features that reduce installation time including integrated EOL resistors,a built-in diagnostic tool and the smallest footprint available on market
Additional information
| Power Requirement | — |
|---|---|
| Supply Voltage | : 8 – 16 VDC, nominal 12 VDC |
| Current Consumption | : Typical 3 mA @ 12 VDC |
| Sensitivity | — |
| Adjustable Sensitivity | : 4 levels by DIP Switches |
| ATMs / Vault Selection | : by DIP switch |
| Delayed Triggering | : N/A |
| Reduced Sensitivity Input | : For maintenance & Service: Active low (<1.5 VDC) |
