CDWH : Co2 Transmitter

CDWH : Co2 Transmitter

Model :CDWH
Download [wpdm_package id=’13796′]

Description

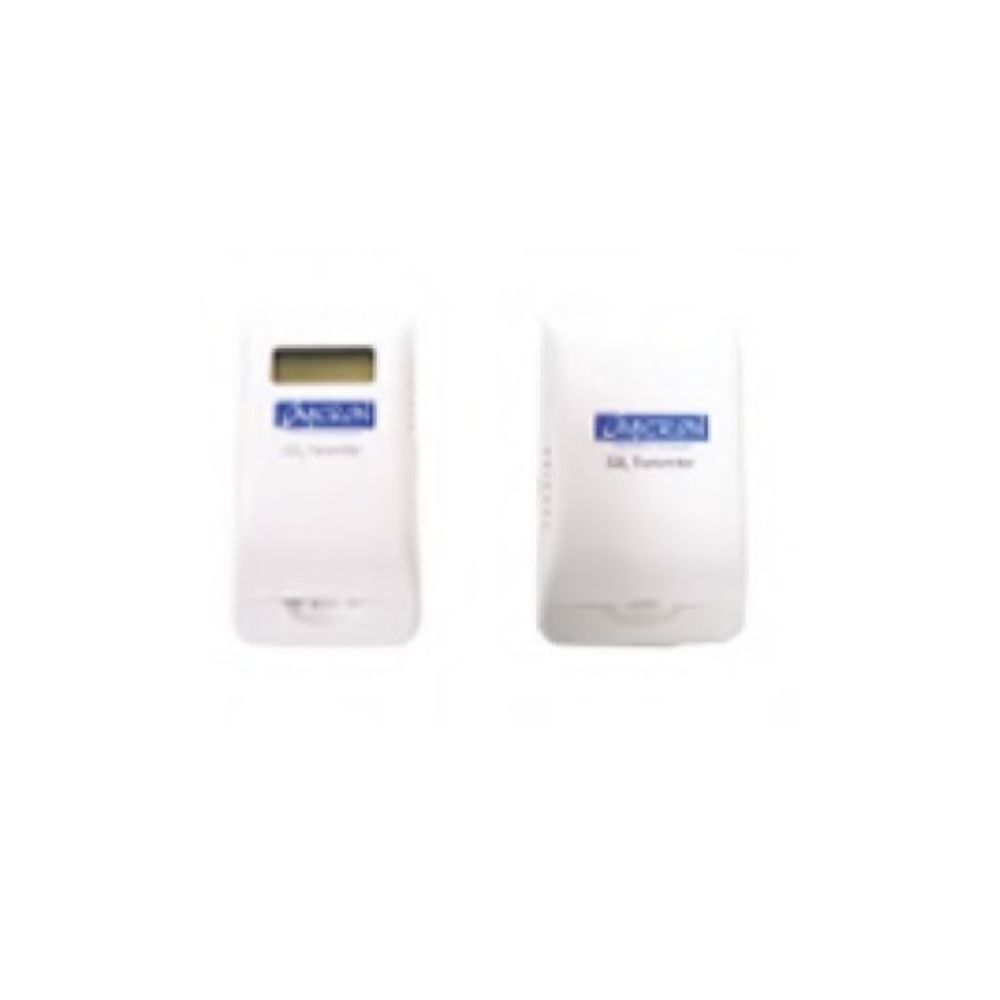

wall Mounted Carbon Dioxide Transmitter

Applications & Features:

Omicron carbon Dioxide transmitters are designed for environment monitoring and controlling in industrial and commercial buildings. These transmitters can be used for:

  • Air monitoring of supply, exhaust and return air.
  • Air monitoring in critical environment such as outside air
  • Other applications of combustion measurement
Features:
  •  High performance semiconductor sensors and circuits, ensure accurate measurement
    and temperature compensation.
  • Good long term stability and reliability
  • 15 Years Sensor Life
  • Fast response
  • Digital technology applied, multiple output optional, over voltage and reverse polarity protection, high reliability and interference capability.
  • Fast Response



Additional information

Sensor

NDIR
Range

0~2000 ppm
Output

4~20mA 0~20mA
2~10VDC 0~10 VDC
(Dip Switch Settable)
Communication

Optional Modbus RS485 RTU
Accuracy

As per ordering code
Hysteresis

<±1% of F.S
Response time

<10s (25°C,in slow air)
Sampling Time

1s
Drift

<±0.5% of F.S
Power

24 VAC (4 wires) / 24 VDC (3 wires or 4 wires)
Output Load

500 (current), >2K (voltage)
Temperature Limit

-20~80°C
Storage Temperature

-40~100°C
Housing

Fireproof ABS Enclosure
Display

Optional LCD Display
Area Of Coverage

750 m2 (optionally available upto 1500 m2)
Agency Approval

CE
Calibration Protocol

COML
