CDWN : Co2 Transmitter
|
||||||
Description

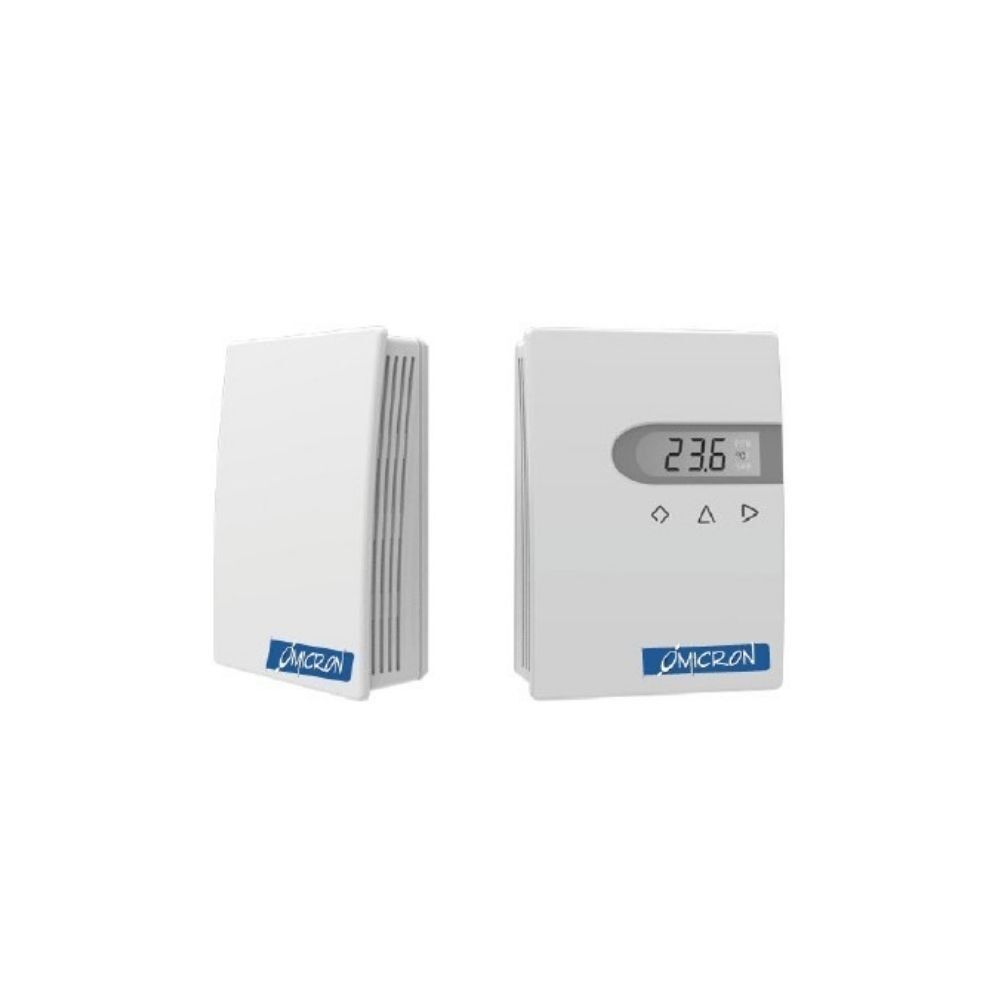

wall Mounted Carbon Dioxide Transmitter
Applications & Features:
Omicron carbon Dioxide transmitters are designed for environment monitoring and controlling in industrial and commercial buildings. These transmitters can be used for:
- Air monitoring of supply, exhaust and return air.
- Air monitoring in critical environment such as outside air
- Other applications of combustion measurement
Features:
- High performance semiconductor sensors and circuits, ensure accurate measurement
and temperature compensation. - Good long term stability and reliability
- 15 Years Sensor Life
- Fast response
- Digital technology applied, multiple output optional, over voltage and reverse polarity protection, high reliability and interference capability.
- Fast Response
Additional information
| Sensor | NDIR |
|---|---|
| Range | 0~2000 ppm |
| Output | 4~20mA |
| Communication | Optional Modbus RS485 RTU |
| Accuracy | ±5% of F.S (Optionally available for ±3%) |
| Hysteresis | <±1% of F.S |
| Response time | <10s (25°C,in slow air) |
| Sampling Time | 1s |
| Drift | <±0.5% of F.S |
| Power | 16 – 28 VAC (4 wires) / 16 – 36 VDC |
| Output Load | 500 (current), >2K (voltage) |
| Temperature Limit | -20~80°C |
| Storage Temperature | -40~100°C |
| Housing | Fireproof ABS Enclosure |
| Display | Optional LCD Display |
| Area Of Coverage | 300 m2 (optionally available upto 750 m2) |
| Agency Approval | CE |
| Calibration Protocol | COML |
| Ingress Protection | IP32; (Optionally Available for IP54) |
