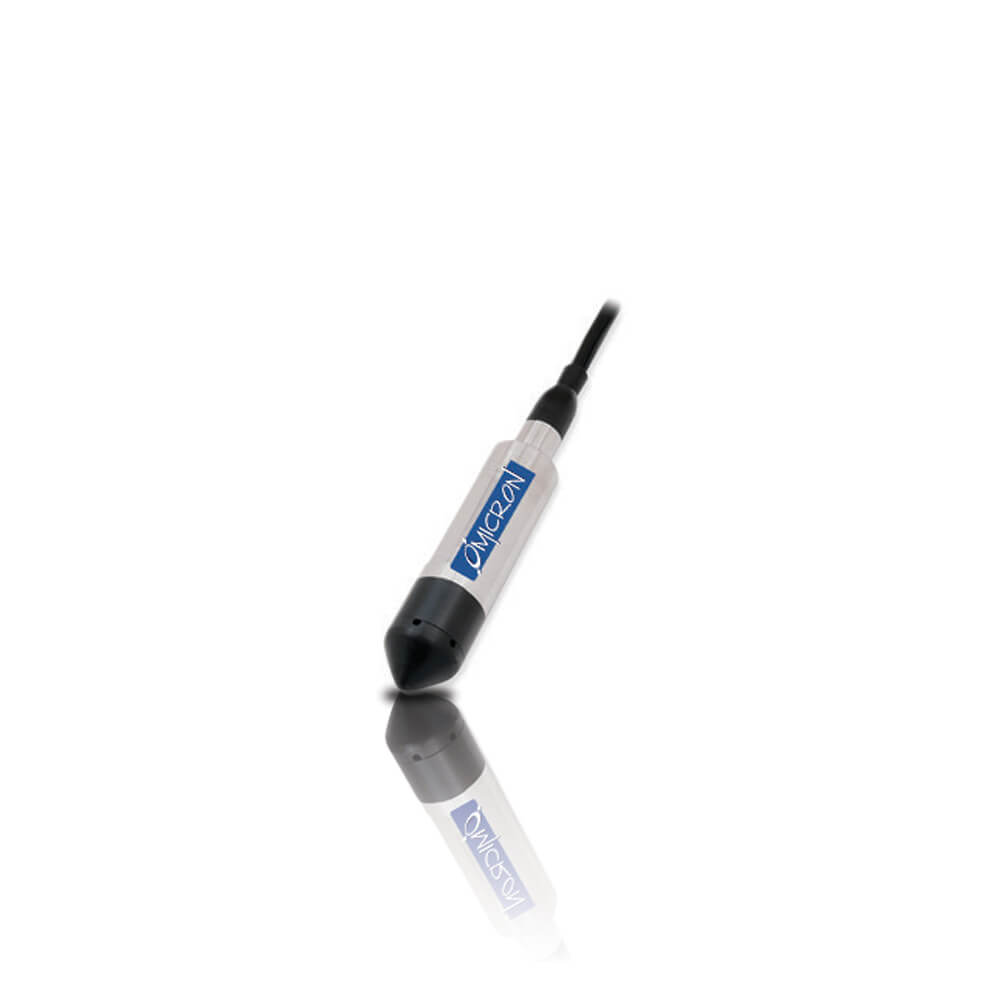

SL7500 : Submersible Level Transmitter
|
|||||||||||||||||||||
Description
Description :
SL75 series standard level transmitter design with consummate encapsulation technology, the perfect assembly process insure the quality and performance of this series with high stability, high accuracy, leakage proof.
Applications :
It can be used for liquid measuring for petroleum, metallurgy, hydraulic, city water supply, sewage treatment, hydrometry and etc.
Additional information
| Pressure range | : 0 ~ 1mH2O~100mH2O |
|---|---|
| Overload | : 150%FS |
| Output | : 4-20mA, 0-5V.0.5-4.5V |
| Power supply | : 12-36VDC |
| Combine error | : 0.25%FS; 0.5% FSO |
| Long term stability | : ± 0.2%FS/year |
| Repeatability | : ±0.2%FSO |
| Response time | : <10ms |
| Pressure connection | : screw thread , throw-in type |
| Temp. compensation | : 0°C~65°C |
| Operating temp. | : 0'C~85°C |
| Protection grade | : IP68 |
