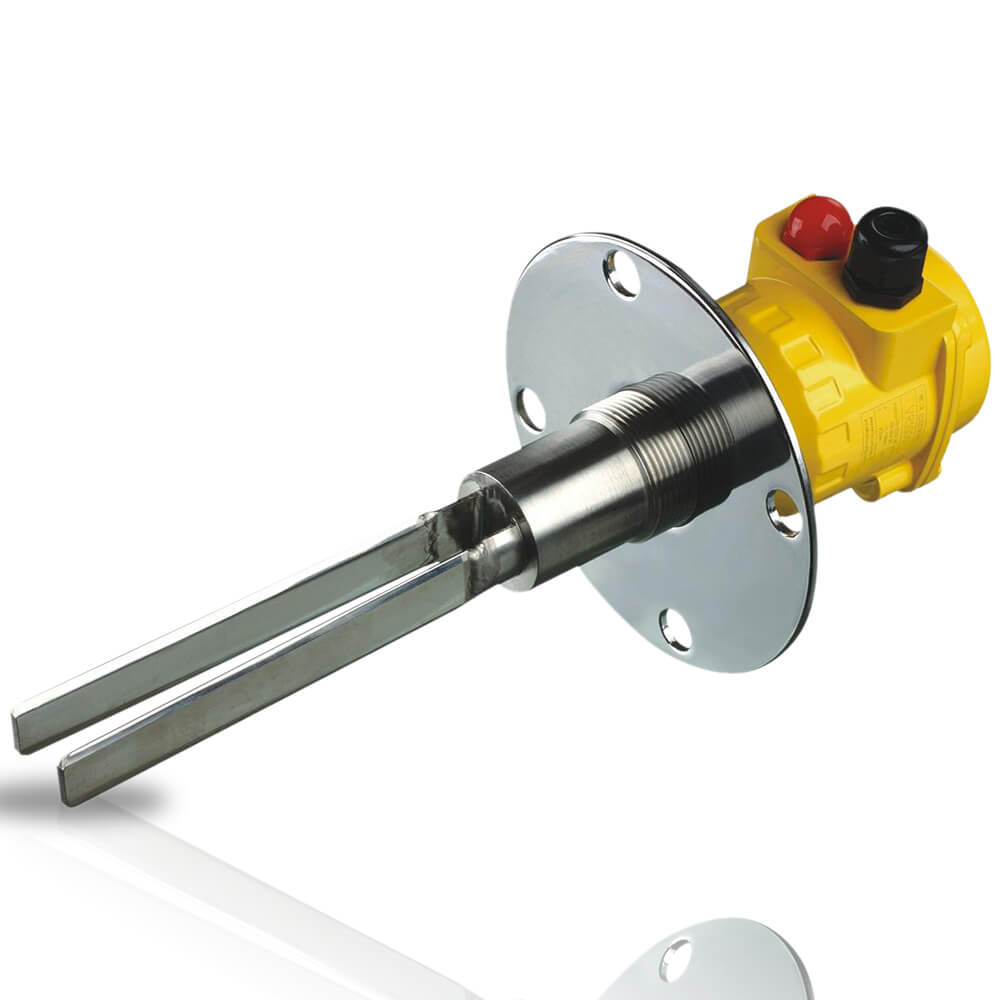

LSVF : Vibrating Fork Level Switch

LSVF : Vibrating Fork Level Switch

Model : LSVF
Type : Vibrating Fork
MOC : SS316
Range : Upto 12″
Contacts : 1 SPDT
Enclosure : Ex / IP65
Max Pressure : Upto 20 bar
Download
Download PDF

Description

Special Features
All Stainless Steel
Sturdy and Versatile
Easy Installation
Rugged Construction
Applications :

Vibrating Fork Point Level Switches are used in various applications to control level in Building industry materials, cement, sand, Food industry, milk powder, flour, salt, food grains, plastic industry, powder, Timber industry, chemical and mining etc.

Additional information

Housing Material

: Diecast Aluminium, Weatherproof to IP-65 / IP-66
Ingress Protection

: IP-65 / IP-66
Max. Temperature

: 150 °C
Max. Amb. Temperature

: 60 °C
Length of Probe

: 250 mm to 3000 mm
Output

: 2 Sets of Potential free Contacts
Mounting

: AISI 316 SS / AISI 304SS
Fork

: AISI 316 SS
Switch

: PNP / NPN / Relay
Signal Delay

: IP 68
: Fork Covered to Free: 2 to 3 Seconds
Switching Delay

: Continuously Adjustable (Optional)
Process Connection

: 1 1/2” BSP (M)
: Flanged Connections Optional
