S675 : Conductivity Sensor

Model : S675
Download :

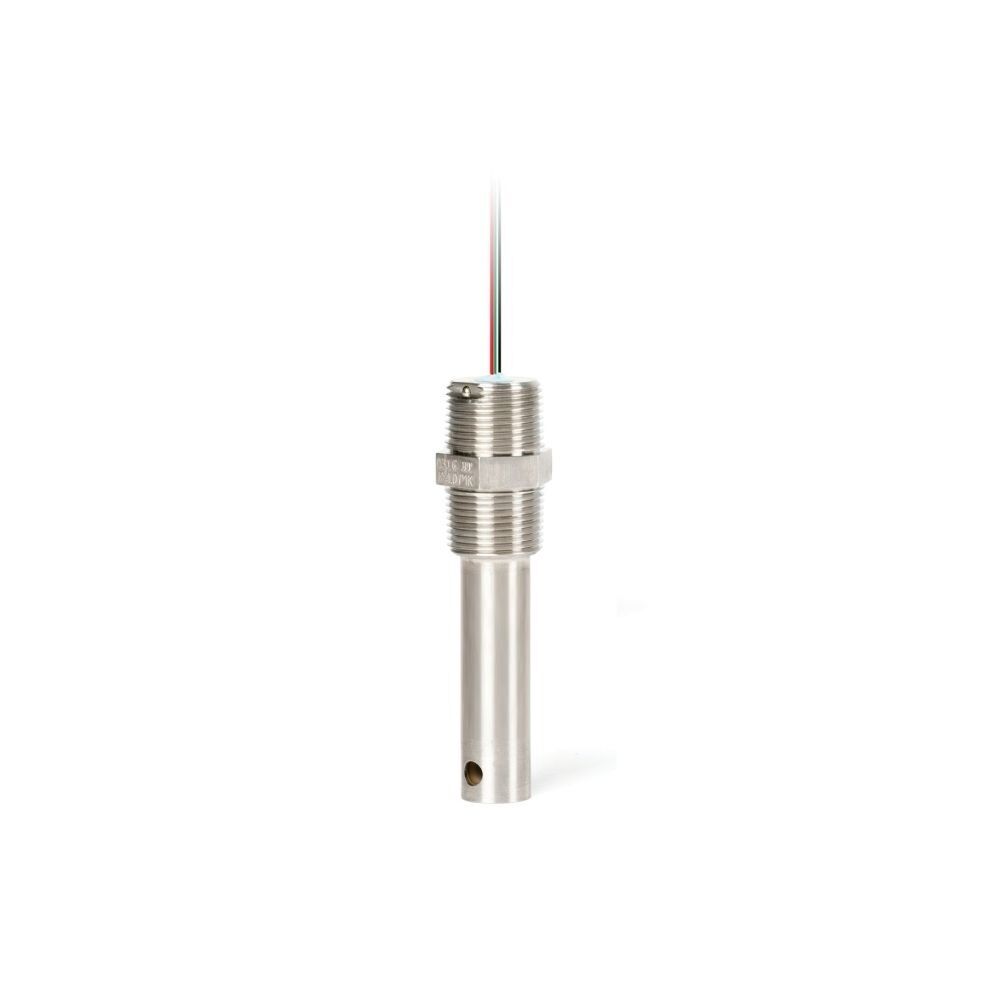

High-Temperature Conductivity Sensor

Heavy-duty industrial conductivity sensors with 304 stainless steel construction for use in 1/2” NPT openings. Featuring thermally-resistant PEEK inserts and high-temperature sealing rings for demanding applications. Supplied with 6” PTFE coated leads for junction box connection and extension (not included). For use with Conductivity Transmitter/Controller for hot media applications or industrial control of conductivity and total dissolved solids (TDS).

Features :
  • Heavy-duty electrodes for hot media applications.
  • Available with ATC for most makes and models of conductivity transmitters or controllers.
  • 0.1, 1.0 and 10.0 cell constants available.
  • Suitable for use in temperatures up to 100°C.

Additional information


1/2” NPT stainless steel 304 body and pins,
PEEK insulator, Ethylene Propylene O-rings

Cell Constants

0.1, 1.0, or 10.0

Wire Leads

6” PTFE coated wire
(ETFE jacketed cable available on request)

Wire Designations (PTFE Coated)

Red = Body
Black = Center Pin
Green/White = Temperature

Wire Designations (ETFE Jacketed)

White = Body
Blue = Center Pin
Green/Orange = Temperature

Temperature Max.


Pressure Max.

150 PSIG

Temperature Compensation

PT1000 RTD standard (others available on request)
