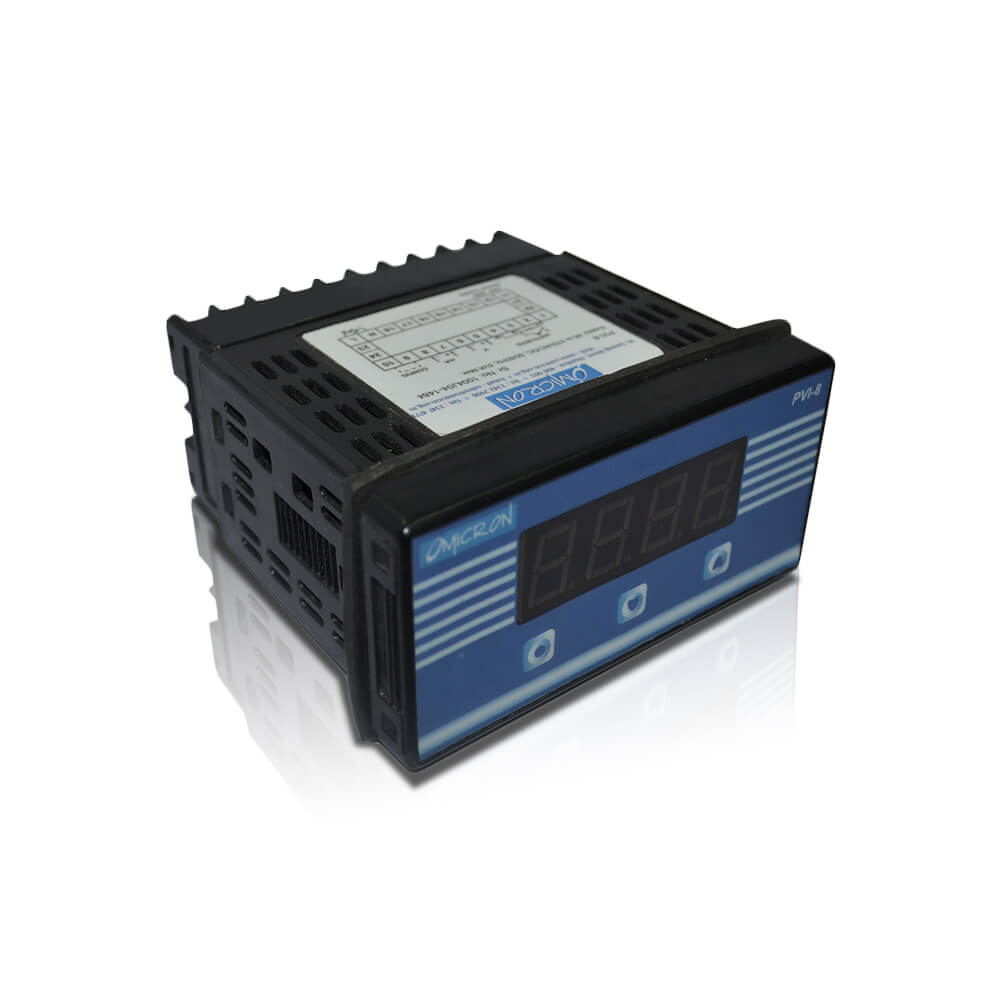

PVI82: 4 Digit Controller with 2 Relay Outputs

Model : PVI82
Accuracy : ±0.25%
Retransmission : Optional
Display : 3½ Digits
Relay : 2 SPDT
Input : Universal
Download

Description

Features :
Universal input : Accepts Sensor Inputs (Thermocouple or RTD), Current, Voltage, & mV.
High Indication Accuracy: ± 0.25%.
Sensor Error Compensation (of fset) and Break Detection.
2 Alarm outputs.
Status Indicators for outputs.
24 VDC Sensor Supply .
Parameter Security V ia Programmable Lockouts.
85 to 270 VAC/DC supply voltage (also available 24 VDC models – Consult factory).
Compliance: CE, RoHS



Additional information

Display

: 4-digit (7 segment LED) 0.5" high.

Display Messages

: “Or” – Appears when measurement exceeds range or open
sensor is detected.
: “rE” – TC reverse.

Display alternating between:

: PV & HA-AL No. for high alarm.
PV & LA-AL No. for low alarm.

LED Status Annunciators

: Alarm ON ( 2nos) .

Power

: 85 to 270 V AC/DC, 50 to 60 Hz, 5 V A max.

Settings

: V ia three keys on front panel.

Memory

: Nonvolatile EEPROM retains all programmable parameters and values.

Main Sensor Input

: Universal

Temperature Units

: C° / F°.

Resolution

: Temperature: 1 / 0.1.
Signal input: 0.001,
: 0.01, 0.1 & 1 decimal
: Point selectable.

Thermocouple inputs

: Alarm ON ( 2nos) .

J

: -200 to 750°C.

K

: -200 to 1350°C.

T

: -200 to 400°C.

R

: 0 to 1750°C.

S

: 0 to 1750°C.

RTD input ( 2 wire or 3 wire)

PT100

: -100 to 850°C.

Signal inputs

Voltage

: 0 to 10 VDC.

Current

: 0 to 20 mA.

mV(linear)

: -5 to 56mV

Indication Accuracy

: 0.25% of Span ±1 C (After 20min. W armup)

Control And Alarm Outputs

Relay Output

: 5A @ 250V AC or 24VDC.

Optional

: 12VDC output to drive SSR.

Output

: 2 nos.

Alarm modes

: Alarm High, Alarm Low , Band, Fail output & Fault diagnosis.

Hysteresis

: Programmable.

Annunciator

: Programmable.

Reset Action

: Programmable – automatic or latched.

Standby Mode

: Programmable – enable or disable. or disable.

Linear Dc Output

: Optional

Re-transmission

: 0/4 to 20 mA or 0 to 5 V or 0 to 10 V.

Update rate

: 100msec.

Environmental Conditions

Operating Range

: 0 to 50°C.

Storage Range

: -5 to 50°C.

Humidity

: 85% max.

Connection

: Wire clamping screw terminals.

Weight

: 342 grams
