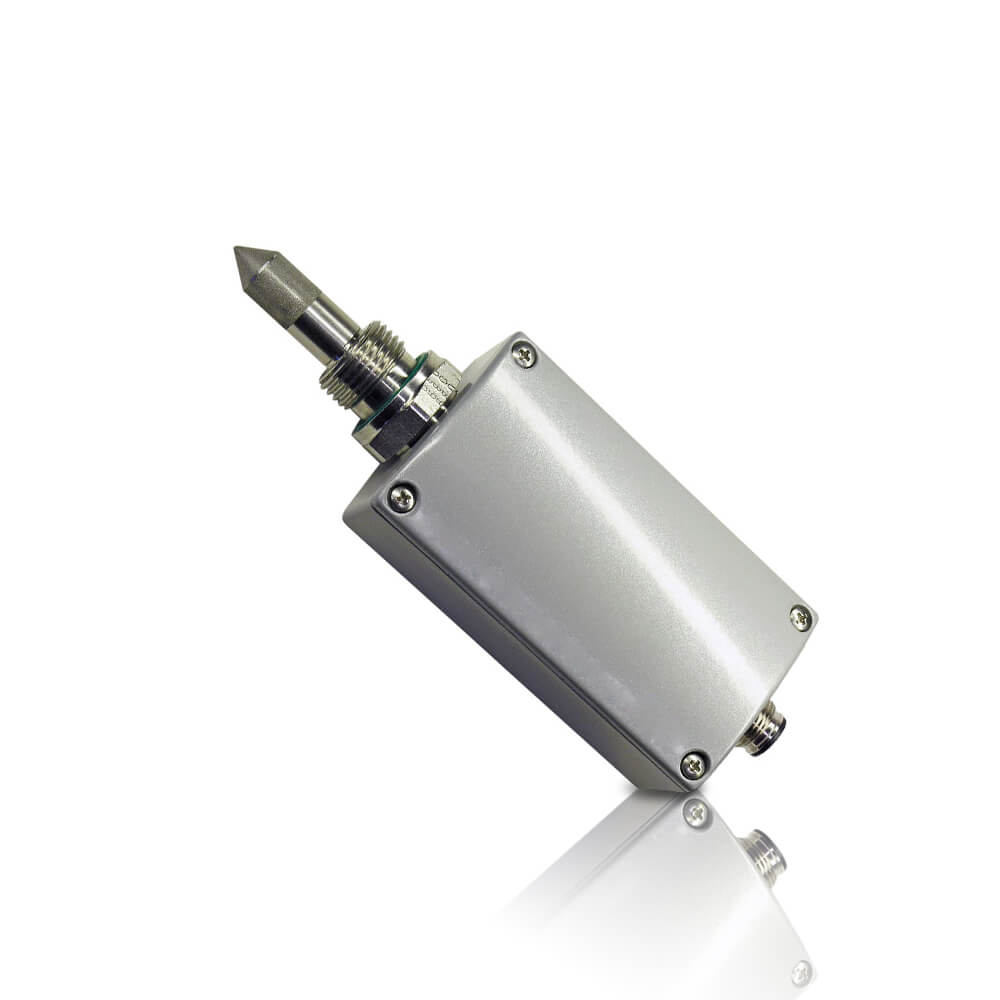

OM375 : Compact Dew Point Temperature Transmitter for OEM Applications
|
||||||
Description
Applications :
The exact monitoring of dew point temperature in compressed air systems, dryers for plastic and other industrial processes is becoming increasingly more important.The 0M375 is designed for measurement of low dew points in OEM applications down to -60°C.The core of the transmitter is the monolithic measure¬ment cell type HMC01 developed by Omicron Sensing in thin-film technology.An autocalibration procedure which is integrated in the device and years of experience in low humidity adjust-ment make an
accuracy of <2°C Td (±3.6°F Td) possible. The transmitter has one analogue output for dew point, frost point or ppm volume concentration.
Additional information
| Measuring Quantities | — |
|---|---|
| Dew Point (Td) Dew Point Sensor | : HMC01 |
| Accuracy | : Traceable to intern. standards, administrated |
| Response Time t90 | : 80 sec. -20°C Td —> -40°C Td (-4°F Td —> -40°F Td) |
| Volume concentration | — |
| Measuring range | : 20…200 000ppm |
| Accuracy at 20°C (68°F) and 1013mbar | : 5ppm + 20% of reading |
| Outputs | — |
| Selectable and scalable | : 0 – 10V -1mA< I,< 1mA |
| analogue output for Td, Tf, Wv | : 4 – 20mA R < 500 Ohm |
| General | — |
| Supply Voltage | : 21…28V DC |
| Current Consumption at 24V DC | : voltage output: typ. 40mA / during autocalibration: 100mA |
| Pressure Range | : 0…20bar (0…290psi) |
| Housing / protection class | : Al Si Cu 3 / IP65 |
| Electrical connection | : M12 connector |
| Sensor protection | : stainless steel sintered filter |
| Working temperature range | : probe: -40…70°C (-40…158°F) |
| Storage temperature range | : -40…60°C (-40…140°F) |
| Electromagnetic compatibility according to | : EN 61326-1 EN61326-2-3 ICES-003 ClassB |
