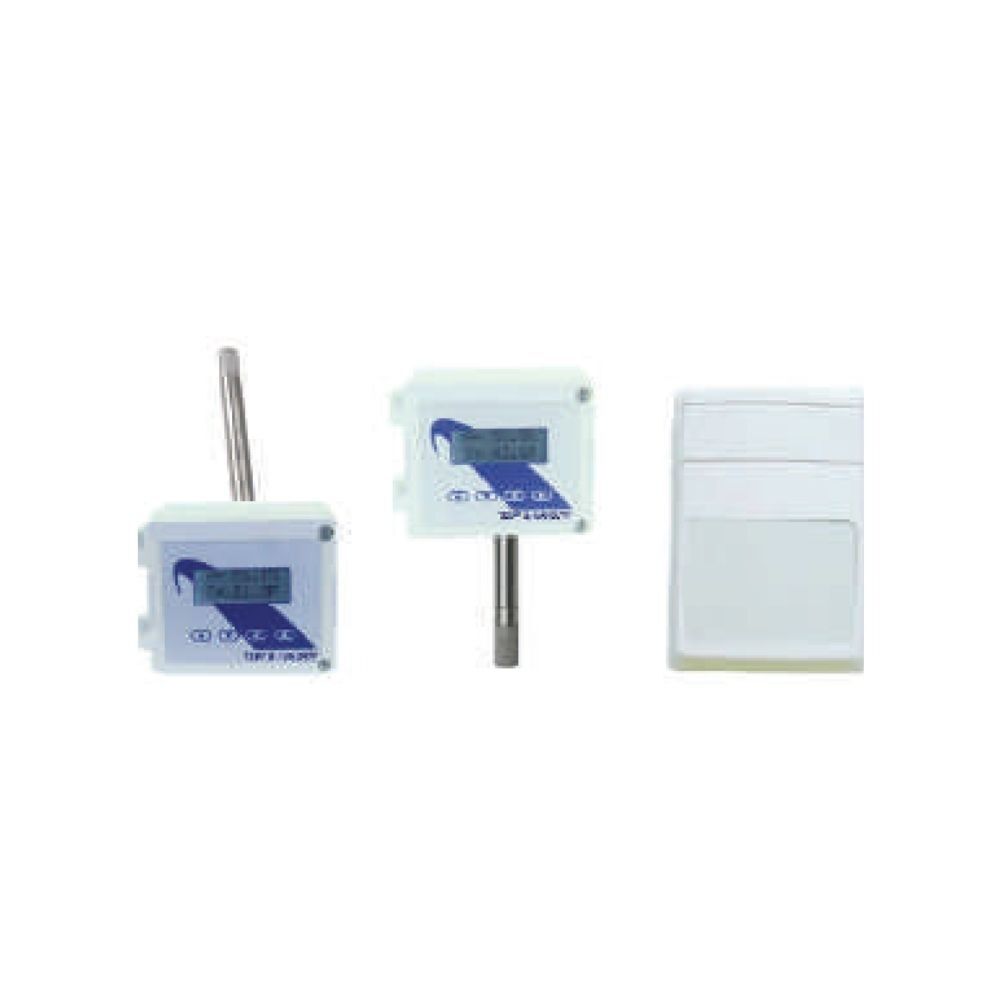

ET17 : Humidity Temperature Transmitter

Model : ET17
Download :

Description

Humidity & Temperature transmitters are designed for environment monitoring and controlling in industrial, commercial and other buildings. These transmitters can be used for indoor air temperature and humidity
monitoring in various indus- trial plant, clean room, lab, machine room, office and commercial building, airport, station, library and stadium.

Features :
  • High performance digital sensors and circuits, ensure accurate measurement and temperature compensation.
  • RH, Temperature, Dewpoint and Enthalpy Output available on Modbus.
  • 100% field changeable sensors, no re-calibration needed.
  • Fast response.
  • Multiple output signals selectable: 4-20mA, 0-5V or 0-10V for RH and Temperature.
  • Display in degrees Fahrenheit or Celsius (by connection to Modbus).

Additional information

Power

12 to 24V AC or DC, ±10%

Current Output Load

< 500Ω

Display

LCD screen for wall / outdoor mount and duct mount

Display Resolution

0.1°C, 0.1% RH

Temperature Limit

-30~70°C, 0~95% RH(Non condensing)

Plastic Housing

Flammability rating UL 94V0 file E194560

Protection

IP65, outdoor rated for duct and wall mount models;
IP30 for room mount

Agency Approval

CE
