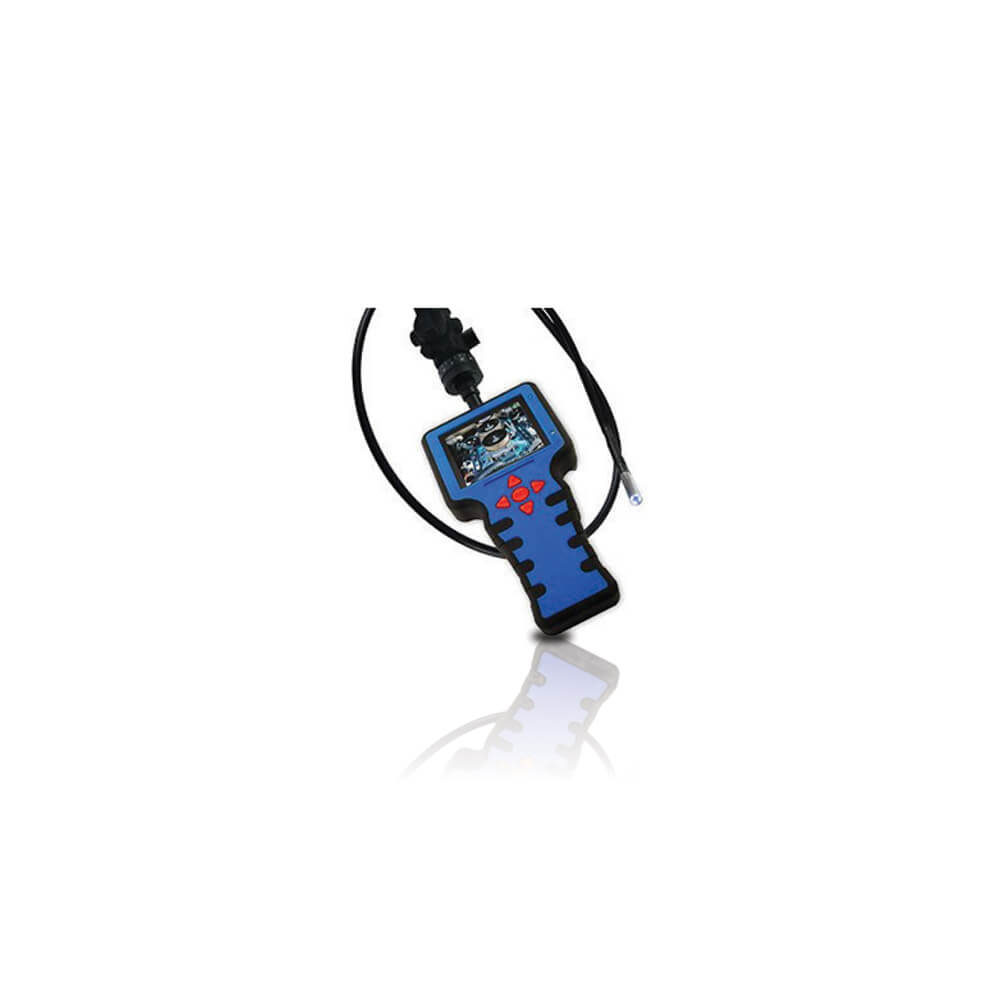

N014 : Articulation Video Borescope

Model : N014
Download pdf :


Features :
Rotational tube with 5.5mm IP67 waterproof level camera head
1 Meter tube length
AV & USB Output
Up to 6X magnification
Capture, play and delete picture
Transfer of picture & Video from TF card to PC computer
4 built-in white LED light with Brightness Control on camera head
PWith Self-Timer and memory support of up to 16GB TF Card
Allows for easy surveying of narrow, hard-to-reach places
High quality 3.5″ TFT-LCD monitor powered with built-in rechargeable Li-batteries
Real-time video recording
8 languages: English / Spanish / French / German / Italian / Simplified Chinese / Japanese / Arabic
Comply with CE & FCC Rules


Description :

This Industrial type Video Inspection allows easy surveying on narrow and hard-to-reach places. It has a Snapshot, Real-Time Video recording, rotations, bend probe tip from 0~180 (Right-top-leftand vice versa). 8 Langauges are available for more convenient usage.

The standard 1m flexible and removable tube have a waterproof level IP67 camera head, inspect even under water, gaps and holes effortlessly. An Extension Cable allows you to extend the vision of inspection point. If you required extension cable (optional), please contact us for more details.

Increase your visibility with digital 6x image zoom capacity and high quality 3.5″TFT-LCD monitor powered by built-in rechargeable battery that can be used up to 4 hours. Brightness of LED lights on camera head is adjustable. Hook, mirror and magnet are included.

Additional information

LCD Display

: 3.5" TFT LCD Monitor


: USB / AV out

Video Out Format


Recording capacity

: 16GB with TF card

Still Image Format

: JPEG (640*480)

Focus Distance

: 2-10cm

LCD Pixel

: 640*480

Flexible Cable

: Camera Lens Diameter: 5.5mm
Tube Diameter: 5.5mm
Imaging Sensor: CMOS
View Angle: 54°
Length : 1 meter

Power Supply

: 3.7V Built-in Rechargeable Li Battery (4hrs use, 1x charge)

Power Adapter

: 110V – 240V


: 20 x 11 x 2.5cm


: about 650g
