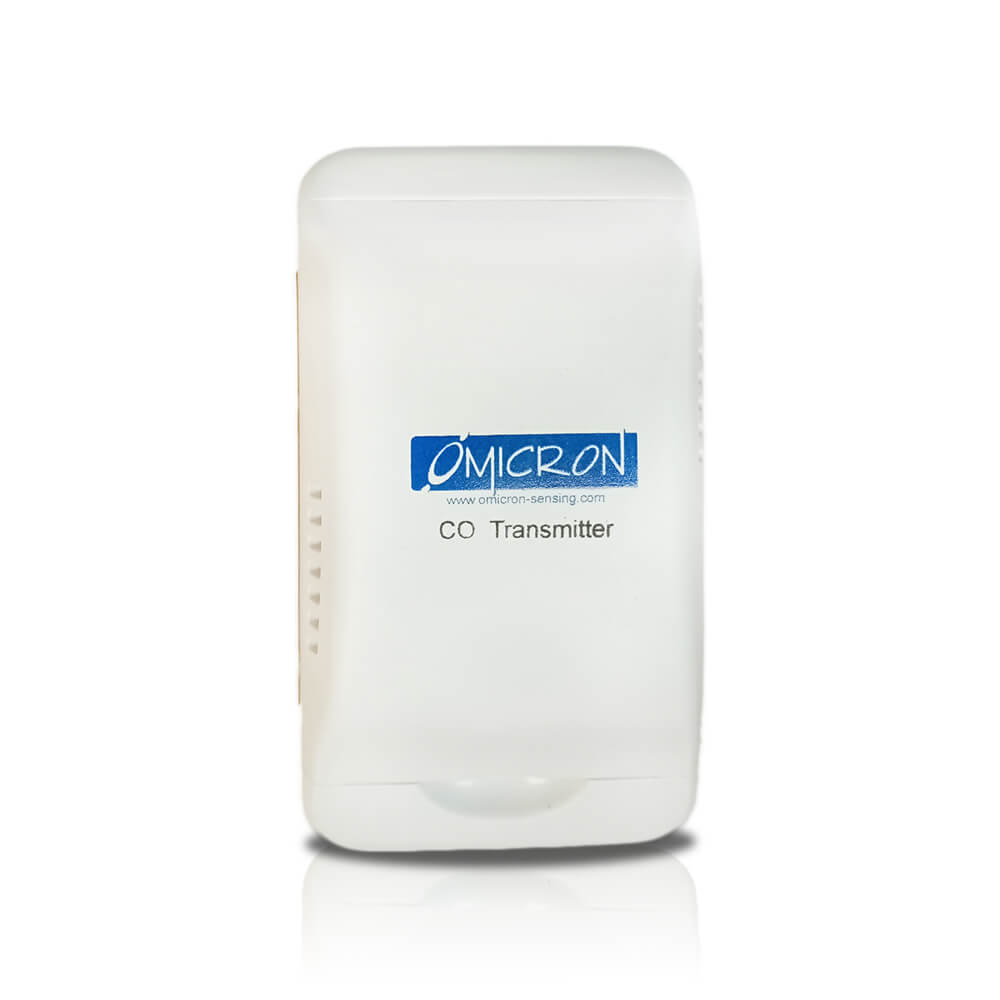

CMW : Wall Mounted Carbon Monoxide Transmitter
|
|||||||||||||||||||||
Description
Special Features :
 |
High-performance semiconductor sensors and circuits, ensure accurate measurement and temperature compensation |
|
Good long term stability and reliability |
|
15 Years Sensor Life |
|
Fast response |
|
Digital technology applied, multiple outputs optional, over-voltage and reverse polarity protection, high reliability, and interference capability |
|
Fast Response |
|
High protection rate up to IP65 |
Applications :
Omicron carbon Monoxide transmitters are designed for environmental monitoring and controlling in industrial and commercial buildings. These transmitters can be used for:
|
Air monitoring of supply, exhaust, and return air |
|
Air monitoring in the critical environment such as outside air |
|
Other applications of combustion measurement |
Additional information
| Sensor | : Digital Semiconductor |
|---|---|
| Range | : 0~250 ppm |
| Output | : 4~20mA(4 wires)，2~10VDC(4 wires); Jumper Settable |
| Accuracy | : ±10% of F.S |
| Hysteresis | : <±1%RH |
| Response time | <120s (25°C,in slow air) |
| Sampling Time | : 1s |
| Drift | : <±1%RH/year |
| LCD | : Optional |
| Power | : 24V AC / DC |
| Output Load | : 500Ω (current), >2KΩ (voltage) |
| Temperature Limit | : -10~50°C |
| Storage Temperature | : -30~60°C |
| Housing | : Fireproof ABS Enclosure |
