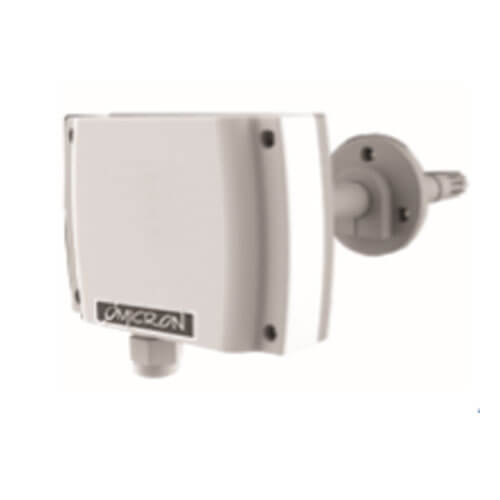

CDD CO2 Transmitter

Model :CDD
Download

Description

Duct Mounted Carbon Dioxide Transmitter


Applications:

Omicron carbon dioxide transmitters are designed for environment monitoring and controlling in industrial and commercial buildings.

These transmitters can be used for:

  • Air monitoring of supply, exhaust and return air
  • Air monitoring in critical environment such as outside air
  • Other applications of combustion measurement
Features:
  • High performance NDIR sensors and circuits, ensure accurate measurement and temperature compensation
  • Good long term stability and reliability
  • 15 Years Sensor Life
  • Fast response
  • Digital technology applied, multiple output optional, over voltage and reverse polarity protection, high reliability and interference capability
  • Fast Response
  • High protection rate up to IP65



Additional information

Sensor

: Digital NDIR

Range

: 0~2000 ppm

Output

: 4~20mA(2 wires),0~10VDC(3 wires)

Accuracy

: –5%

Hysteresis

: <–1%RH

Response time

: <10s(25º C , in slow air)

Drift

: <–0.5%RH/year

LCD

: Optional

Power

: 24VDC

Output Load

: 500Ω (current), >2KΩ (voltage)

Temperature Limit

: -20~80ºC

Storage Temperature

: -40~100ºC

Housing

: Fireproof ABS Enclosure

Protection

: IP65
