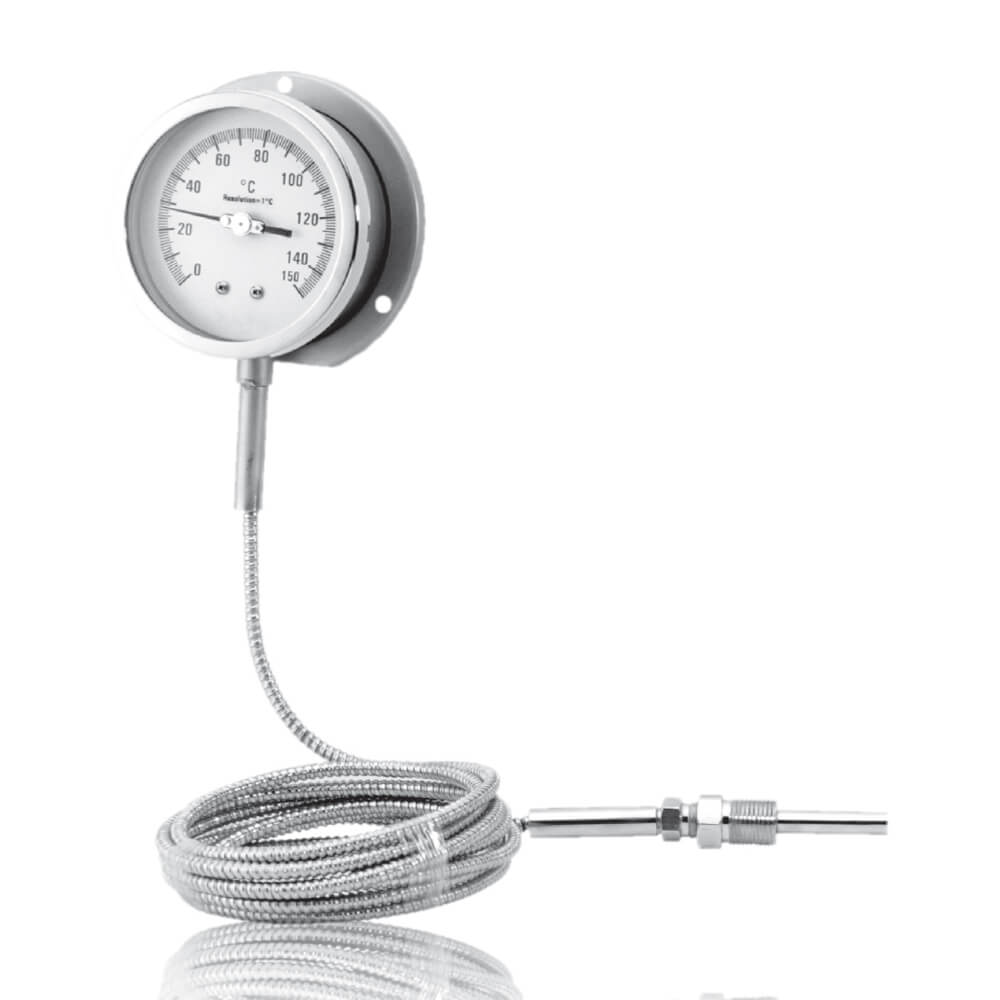

TGGS : Gas Filled Temperature Gauge
|
Description
Special Features :
 |
Stainless steel case & measuring system |
|
Bottom / Back / Every Angle Entry |
|
Dry or Liquid Filled |
|
Mercury Filled Expansion System |
Applications :
Food & beverage, pharmaceutical, cryogenics, chemical & petrochemical industries, conventional & nuclear power Plants, pumps, hydro-cleaning machines, presses, engine Compressors, turbines, diesel engines & refrigerating plants.
Additional information
| Standard Version | : 100mm, 150mm |
|---|---|
| Accuracy | : Class 1 as per EN 13190 |
| Ambient temperature | : – 25 °C to + 65 °C |
| Process pressure | : 15 kg/cm2 (Without Thermowell) |
| Over Range Limit | : 130% of the Scale Value or 650 oC, whichever is minimum |
| Stem Diameter | : 6mm / 8mm / 10mm / 12mm |
| Case | : AISI 304 SS |
| Ring | : AISI 304 SS, Bayonet Lock |
| Stem | : AISI 316 SS |
| Connecion | : AISI 316 SS |
| Movement | : AISI 304 SS |
| Joints | : Tig Argon Arc Welding |
| Protection | : IP 65 |
| Dial | : Aluminium, black graduation on white background |
| Pointer | : Aluminium, black coloured fixed pointer |
| Window | : Sheet Glass |
| Gasket | : Neoprene |
