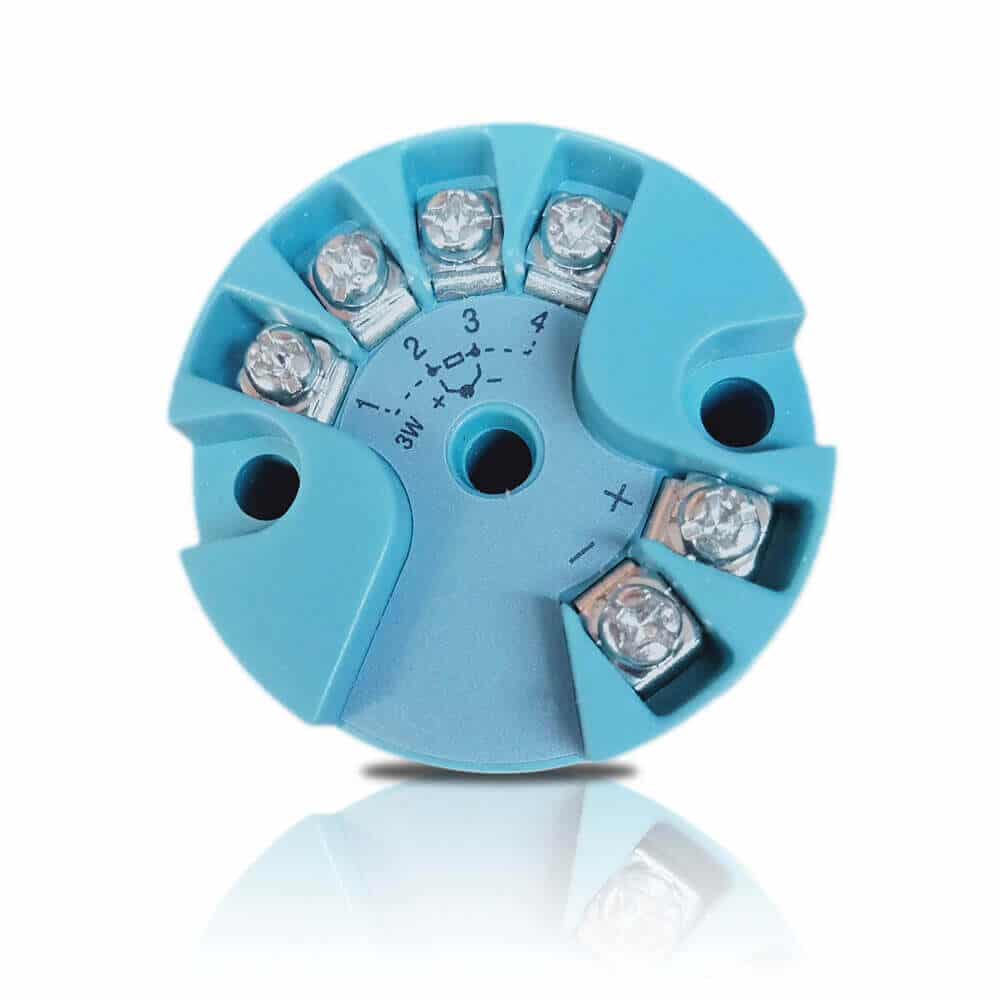

T148R: RTD Head Mounted Temperature Transmitter

Type : Head Mounted Temperature Transmitter for RTD
Model : T148R
Temperature Range : ±0.1% of F.S
Output : 4 – 20mA
Power Supply : 12 – 36V DC
Download

Description

Special Features
Programmable Input (Pt-100)
Linear Signal Output
Current Loop Powered
Configuration with a PC via USB cable
High Accuracy and Repeatability
Applications :

Food & beverage, pharmaceutical, chemical & petrochemical industries, conventional & nuclear plants, pumps, presses, turbines, hydro-cleaning machines, diesel engines & refrigerating plants.

Additional information

Input

: RTD: Pt-100

Output

: 4 – 20 mA, two wire

Accuracy

: ±0.1% of the calibrated span

Operating Temp.

: -40°C to 85°C

Storage Temp.

: -40°C to 120°C

Calibration

: Configuration with PC via USB Cable

Ingress Protection

: IP68

Loop Supply

: 24V DC nominal (12 to 30)V DC

Loop Resistance

: 600 Ohm @ 24V DC

Burn Out

: Upscale for RTD
