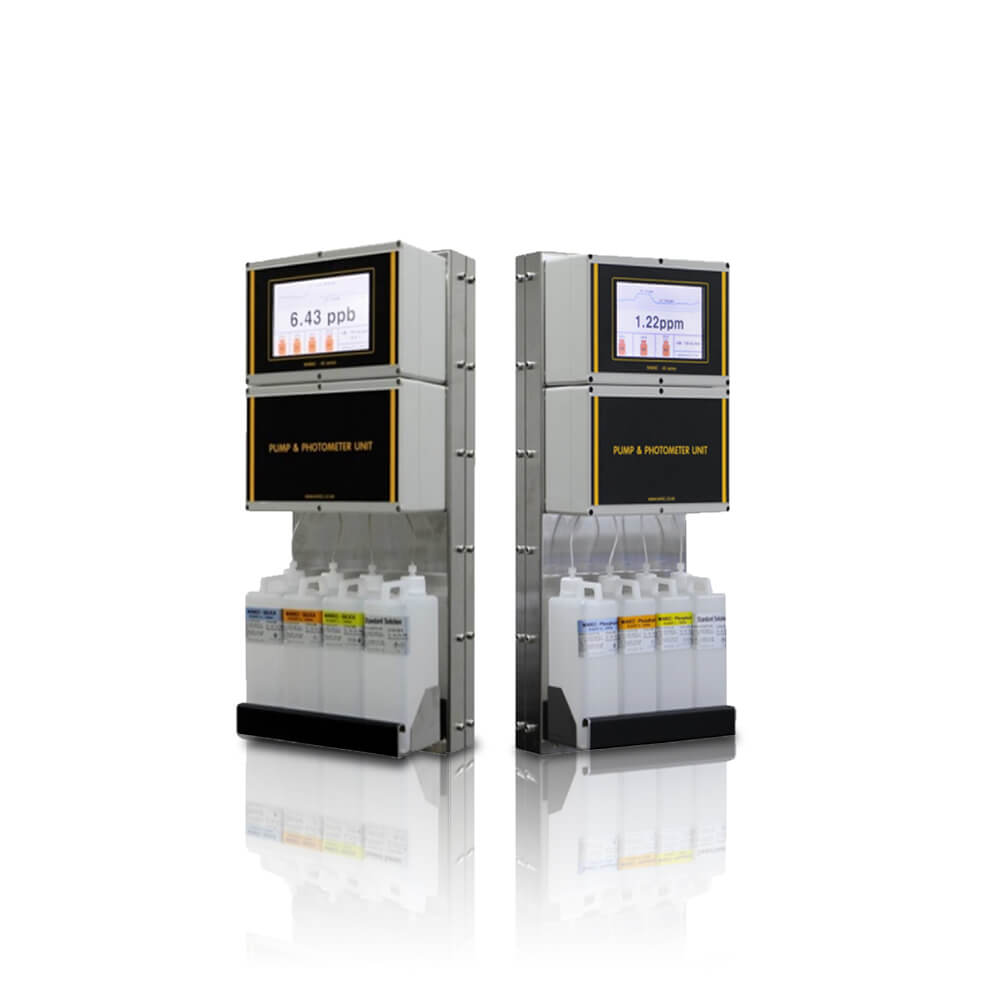

SA300H: Silica(SiO2) Analyzer
|
Description
Special Features :
 |
Convenient maintenance | |
| – | Easy tube replacement & disassembly – No defect due to simplified structure – Data storage function (USB) |
|
|
7” Color LCD Monitor | |
|
Display of data trend | |
|
Alarm function for lack of reagents or sample | |
|
Automatic calibration by standard solution | |
|
Multichannel operation (1~6ch) | |
|
Applications | |
| – | Monitoring and control of the boiler water, feed water. | |
| – | Power Plants, Semiconductor Industry. | |
Specifications :
| Model | SA – 300 | SA – 300H | |
|
Resolution | Colorimetric (Molybdenum blue) |
Colorimetric (Molybdenum yellow) |
|
Measuring Range | 0~50 to 0~500 ppb 0~3,000 ppb |
0~50 ppm |
|
Display (Resolution) | 0.1 ppb (0.5 ppb) | 0.1 ppm (0.5 ppm) |
|
Accuracy | ± 1.0 ppb or ± 2% of reading | ± 2% of reading |
|
Response Time | 12 min App. | 12 min App. |
|
Sample Pressure | 1~ 5 bar | |
|
Sample Temperature | 5 ~ 45°C | |
|
Sample Flow | 200~500 ml /min | |
|
Sample Connections | Inlet 6mm / Outlet 10mm | |
|
Reagent Consumption | 80 days (A, C, STD/2L, B/1L) | |
|
Data Output | 4 ~ 20 mA, RS485 Modbus | |
|
Dimensions | 400W X 500H X 200D (Flush type), | |
| 530W X 1700H X 300D (Self -standing type) | |||
|
Power | 100~240 VAC (50/60 Hz) | |
