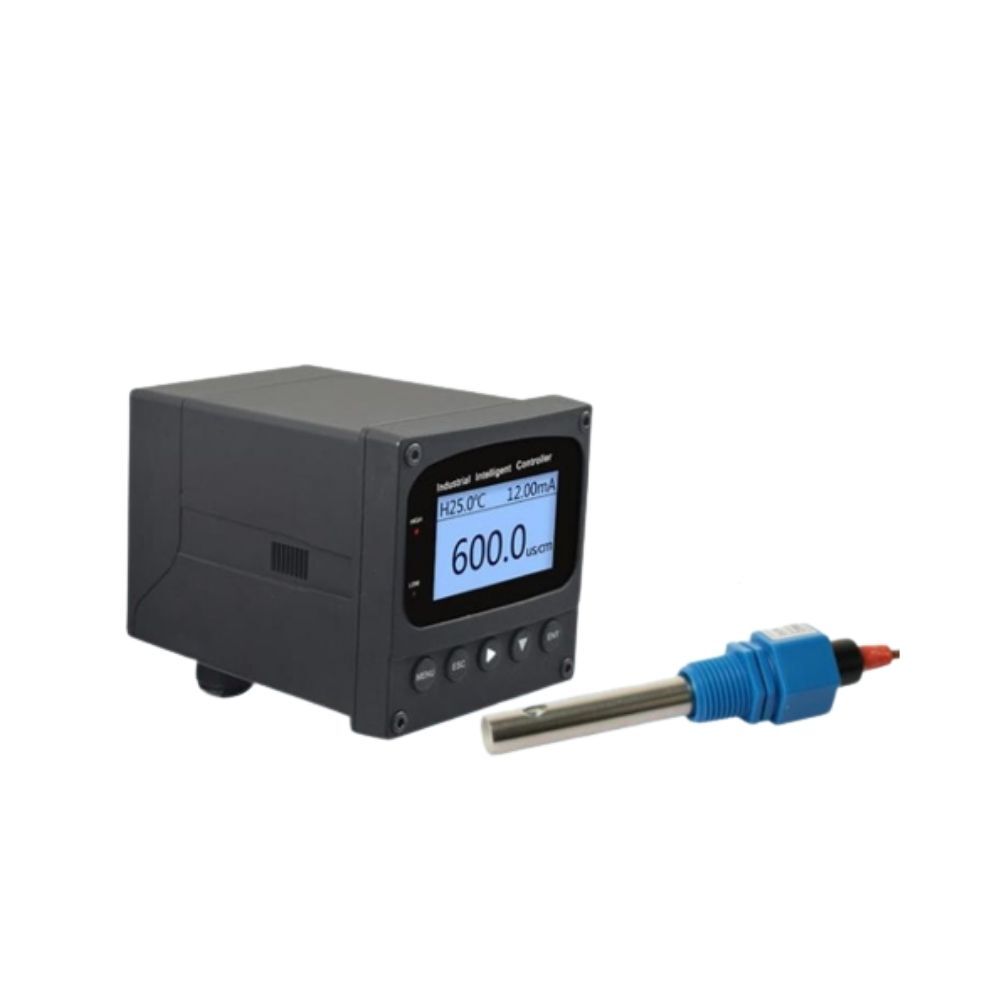

EC16 TDS / EC Transmitter

EC16 TDS / EC Transmitter

Model :EC 16
Download [wpdm_package id=’13549′]

Description

Online Conductivity / TDS Transmitter and Controller

Applications & Features:
  • Integrated detection
  • Strong anti-interference
  • Temperature self-compensation
  • Intelligent anti-crash
  • Waterproof & dustproof
  • Configuration protection
  • The wide compatibility of medium

Additional information

Measuring range

0.01 electrode：0.02~20.00µS/cm
0.1 electrode：0.20~200.0µS/cm
1.0 electrode：2.00~2000µS/cm
10.0 electrode：0.02~20.00mS/cm
For extended range controller：
0.01 electrode：0.20~200.0µS/cm
0.1 electrode：2.00~2000µS/cm
0.1 electrode：0.02~20.0mS/cm
10.0 electrode：0.20~200.0mS/cm
Measuring Variables

EC/TDS/Resistivity
Accuracy

EC EC/TDS/Resistivity: ±1%FS NTC10K：(-10~5℃)±2℃；
(5~60℃)±0.2℃；(60~130℃)±2℃ PT1000：(-10~5℃)±2℃；
(5~130℃)±0.2℃
Stability

±1%FS/24H
Temp. compensation

Manual / automatic compensation
NTC10K or PT1000 temperature offset
Temp. range

-10ºC-130ºC
Operating Temperature

0~60 ºC
Temperature

-15~65℃
Output

4~20mA output
maximum loop ;750Ω,±0.2%FS
Alarm Relay

Pickup/Breakaway AC250V/3
Relative humidity

10~85%RH(No condensation)
Power supply

220VAC±10% 50Hz/60Hz
Relay out

Pickup/Breakaway AC250V/3A
Dimension

Overall dimension:
100mm*100mm*150mm(H*W*D)
Cut-out dimension：92.5mm*92.5mm(H*W)
Screen size

2.8 inch
Weight

0.65Kg
Protection

IP65
