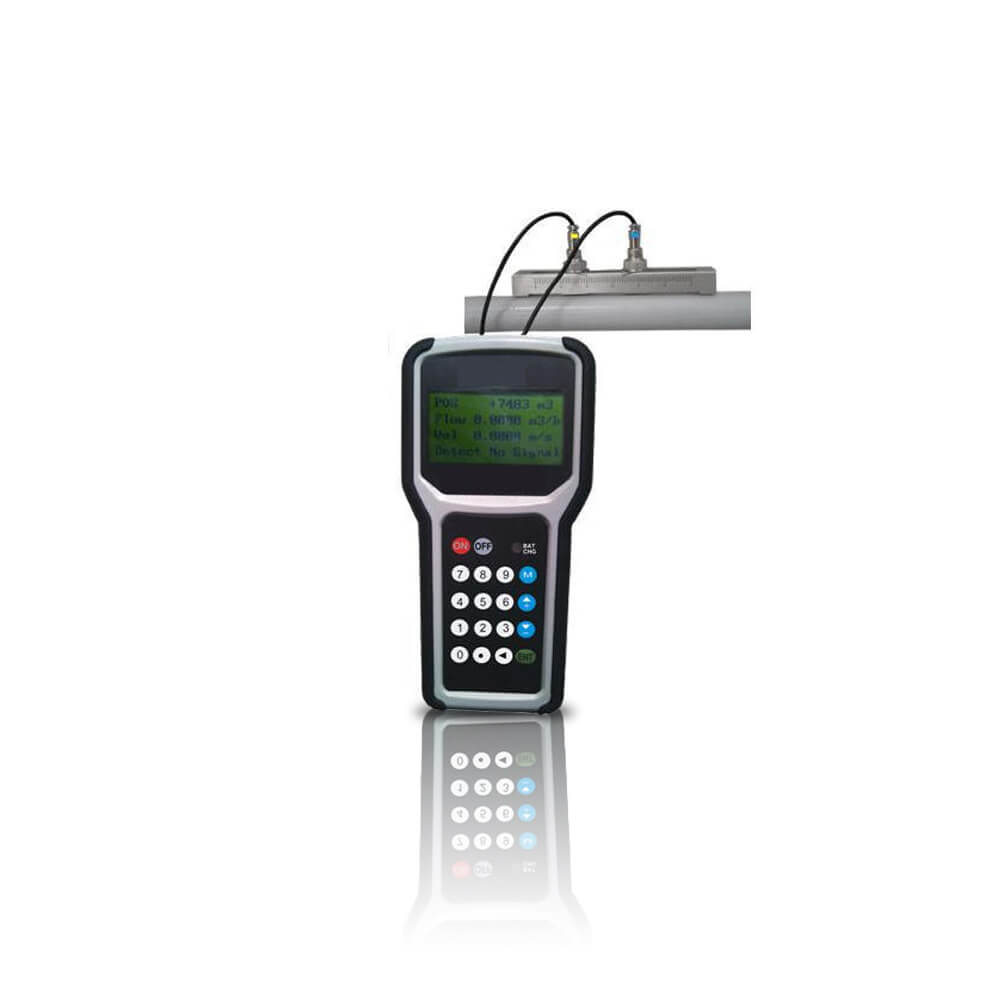

S300H : Ultrasonic Flowmeter
|
Description
Special Features :
 |
High accuracy measurement |
|
Non-intrusive. Clamp-on installation. Easy and fast |
|
No moving parts. Maintenance free |
|
Light weight, compact design |
|
Suitable for all commonly used pipe materials and liquids |
|
Suitable for pipes from 1” ~ 120” (DN25~DN3000mm) |
|
Rechargeable battery for 10 hours of operation |
|
Built-in data logger and flow totalizers |
|
Self-explanatory user interface. Easy to operate |
|
StufManagerT M PC software for data download and real-time data acquisition |
|
Signal quality tracking and self-adaptation for robust performance |
|
USB interface for PC link |
Description:
S300H Ultrasonic Flowmeter is one of the most powerful portable flowmeters available for liquid flow measurement. It is carefully designed so that it is very compact and easy to use. You can use one hand to hold as well as to operate the flowmeter. The user interface is self-explanatory and very easy to follow. The unique
clamp-on fixture design makes the installation very simple and no special skills or tools required.
Additional information
| Linearity | : Better than 1% |
|---|---|
| Repeatability | : 0.5% |
| Accuracy | : ±1% of velocity reading or ±10mm/s, whichever is bigger |
| Response Time | : 0-999 seconds, user-configurable |
| Velocity | : -52ft/s ~ +52ft/s (-16m/s ~ +16m/s), bi-directional |
| Pipe Size | : 1" ~ 120" (DN25mm ~ DN3,000mm) |
| Pipe Material | : All metals, most plastics, lined pipe |
| Units | : English (U.S.) or metric |
| Totalizer | : Three 7-digit totalizers for totalizing net, positive and negative flows |
| Liquid Types | : Virtually all liquids (full pipe) |
