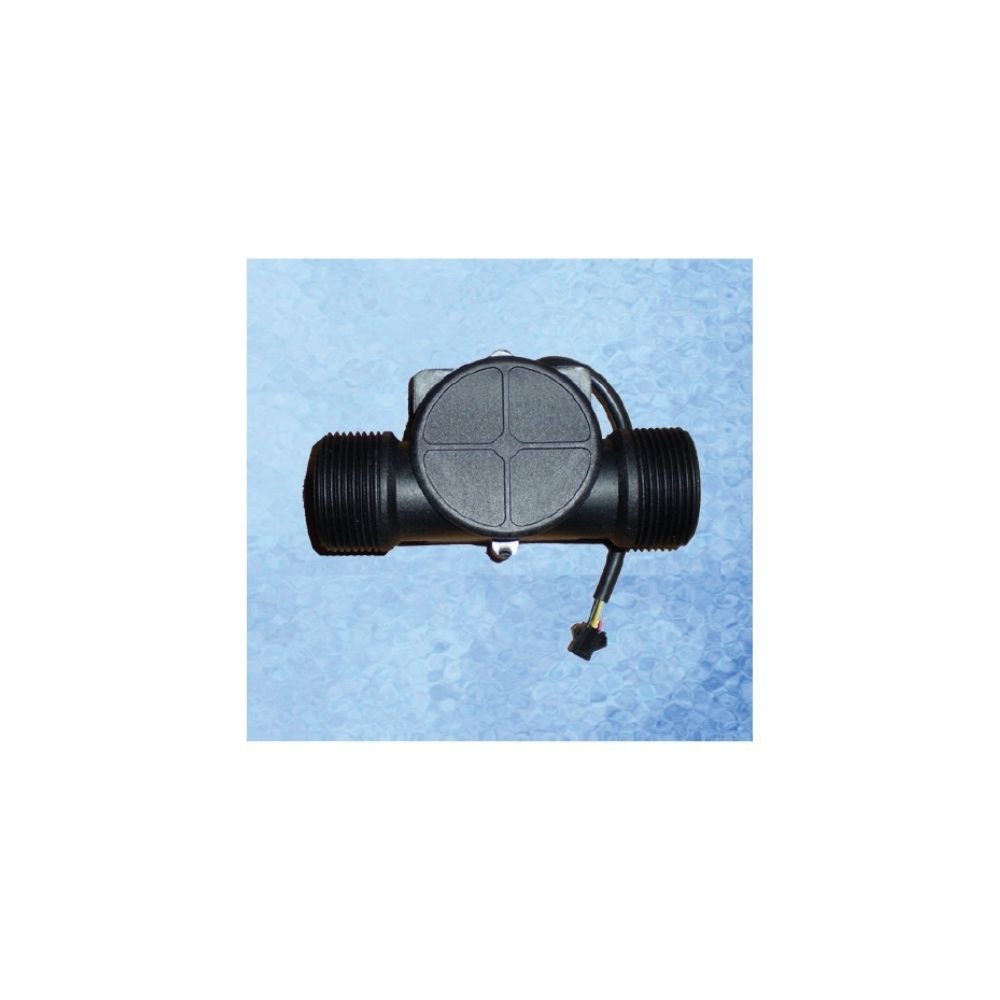

FSH : Water Flow Sensor
|
||||||
Description
Applications and Features :
FSH Flow Sensor with new engineering innovations, has all the desired features to ever changing needs of industries for the sensing of the water flow rate on the following equipments: Thermostatic water heater, water purifier, water dispenser, smart card equipment, coffee machine, etc
Features :
- Intelligent Flow Sensor with Pulse Output
- Good Accuracy with High Repeatability
- Wide Measurement Range, upto 10:1
- Works with Cold and Hot Water
- Optionally available for High Pressure Applications
Additional information
| Media | Water |
|---|---|
| Line Size | 6MM to 32MM |
| Accuracy | ±5.0% For Liquids |
| Repeatability | ±2.0% For Liquids |
| Output | Pulse Output |
| Power Supply | 12VDC / 24VDC / 5VDC |
| Ambient Temp. | – 20 °C to 80 °C |
| Maximum Pressure | 17 Bar |
| Sensor MOC | Nylon |
| Protection Grade | IP65 |
| Display | IP65 |
| Insulation Res. | 100M ohm |
| Duty Cycle | 50±10% |
