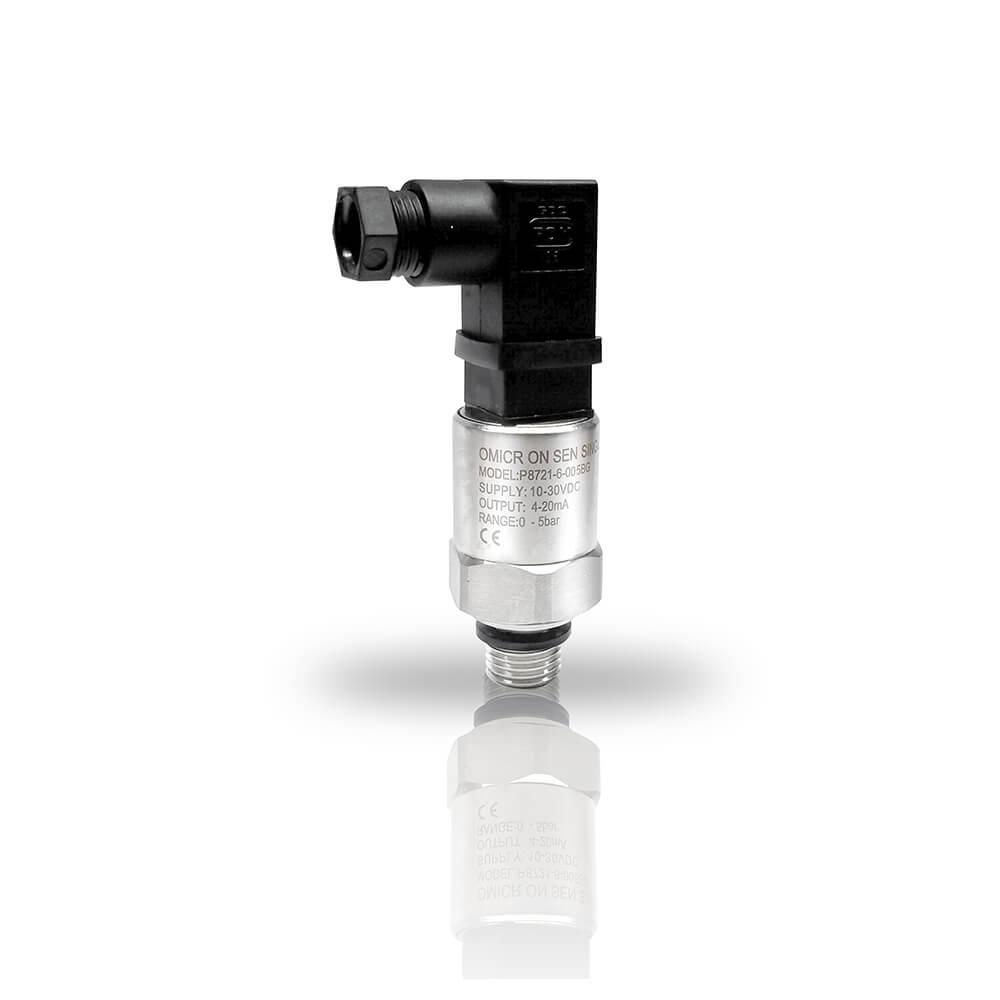

P8700 : OEM Pressure Transmitter

Model : P8700
Type : OEM
Range : 0 to 3…2000 bar
Output : 4 – 20mA, 0 to 5V, 0.5 to 4.5V, 1 to 5 V, 0 – 10V
Accuracy : ± 0.25% of F.S
Temperature Limits : -25 to 105ºC
Over Pressure : 3X
Download pdf

Description

Special Features
  • Low Cost OEM.
  • Wide Temperature Range.
  • Crevice Free Stainless Steel Construction.
  • No Seals or O-Rings.
  • Compact Version.
  • Surge Protection, Over Voltage Protection to 16V DC.
Applications :

P8700 OEM Pressure Transmitters with Compact Design are used for various applications in Aviation Industry, Pharmceuticals, Refrigeration and HVAC Controls, Process Control, Motor Fuel Control, Water Pressure Monitoring and High end industrial machinery.

Additional information

Pressure Range

: 3 Bar ~ 2000 Bar

Accuracy

: ±0.25%

Operating Temp.

: – 40 °C to 125 °C

Compensated Temp.

: – 20 °C to 85 °C

Proof Pressre

: 2X

Burst Pressure

: 5X

Input Voltage

: 12 – 36 VDC

Output

: 4-20 mA , 0-10V , 0-5V, 0.5-4.5V Ratiometric, 1-5V

Wetted Parts

: AISI 316L SS

Diaphragm

: AISI 316L SS

Case

: AISI 316L SS

Connector

: Nylon 6/6

Media Compatibility

: All Materials compatible with AISI 316L SS

Protection

: IP 68 (Cable Version)
