C3200

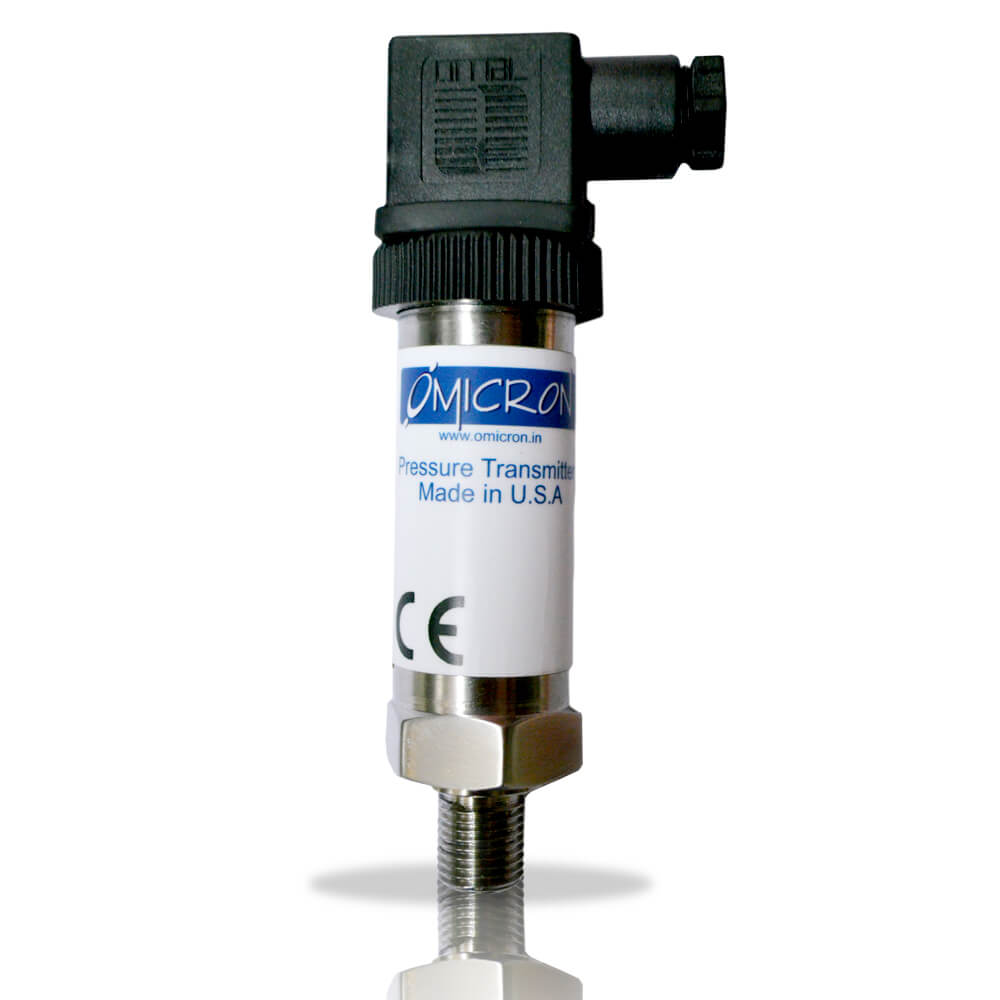

C3200 : Compound Pressure Transmitter

Model : C3200
Type : Compound
Range : -1 to 40 bar
Output : 4 – 20mA, 0 to 5V, 0.5 to 4.5V, 1 to 5 V, 0 – 10V
Accuracy : ± 0.25% of F.S
Operating Temp : – 40 ºC to 125 ºC
Compensated Temp : – 20 ºC to 85 ºC
Over Pressure : 2X
Download pdf [wpdm_package id=’1230′]

Description

Special Features
  • Low Cost OEM.
  • Wide Temperature Range.
  • Crevice Free Stainless Steel Construction.
  • No Seals or O-Rings.
  • Compact Version.
  • Surge Protection, Over Voltage Protection to 16V DC.
Applications :

C3200 OEM Pressure Transmitters with Compact Design are used for various applications in Aviation Industry, Pharmceuticals, Refrigeration and HVAC Controls, Process Control, Motor Fuel Control, Water Pressure Monitoring and High end industrial machinery.

Additional information

Pressure Range

: -1 Bar ~ 40 Bar
Accuracy

: ±0.25%
Operating Temp

: – 40 ºC to 125 ºC
Compensated Temp

: – 20 ºC to 85 ºC
Proof Pressre

: 2X
Burst Pressure

: 5X
Input Voltage

: 12 – 36 VDC
Output

: 4-20 mA , 0-10V , 0-5V, 0.5-4.5V Ratiometric, 1-5V
Wetted Parts

: AISI 316L SS
Diaphragm

: AISI 316L SS
Case

: AISI 304 SS
Connector

: Nylon 6/6
Media Compatibility

: All Materials compatible with AISI 316L SS
Protection

: IP 68 (Cable Version)
