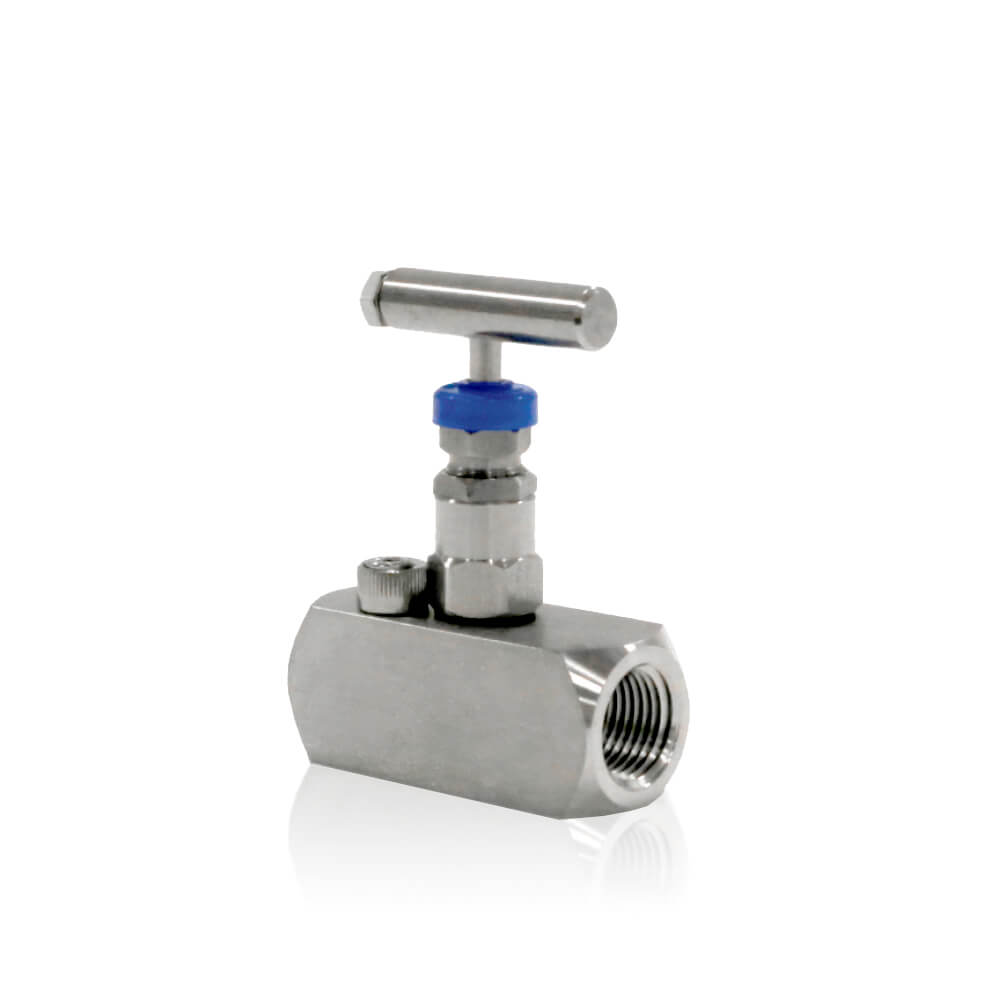

NV1 : Needle Valve (Compression end)

Model : NV1 NEEDLE VALVE
MOC : AISI SS316 / AISI SS304 / Exotic Material
Temp Lmiit : 250°C
Pressure Limit : 15000 psi
No. of Valves : 1
Design : R Type
Download :

Description

Description :

Type needle valves with hard seat are designed for use on applications requiring complete isolation or throttling of the media.the conical metal tip (stem type ct) press fitted ensures perfect alignment for positive bubble tight shut-off. Available with end connections in sizes from 1/8″ to 1″ and a wide choice in connections of female screwed, male screwed, male to female screwed or socket weld.

Applications :
High Pressure Line Shut Off.
Instrument Isolation.
Gauge Isolation.
Drain Valve.
Liquid And Vapor Service



Additional information

Specifications :

Pressure

: 400 bar

Max Temp.

: 240°C

Material

: Stainless Steel

Stem

: (CT) chrome plated Conical tip press fitted hard .

Gland Packing

: PTFE (Grafoil to be used for temperature above 240°C till 550°C)

Stem Packing Area

: Burnished mirror finish for Smooth valve
operation.

Safety

: Back seating for preventing stem blowout.
