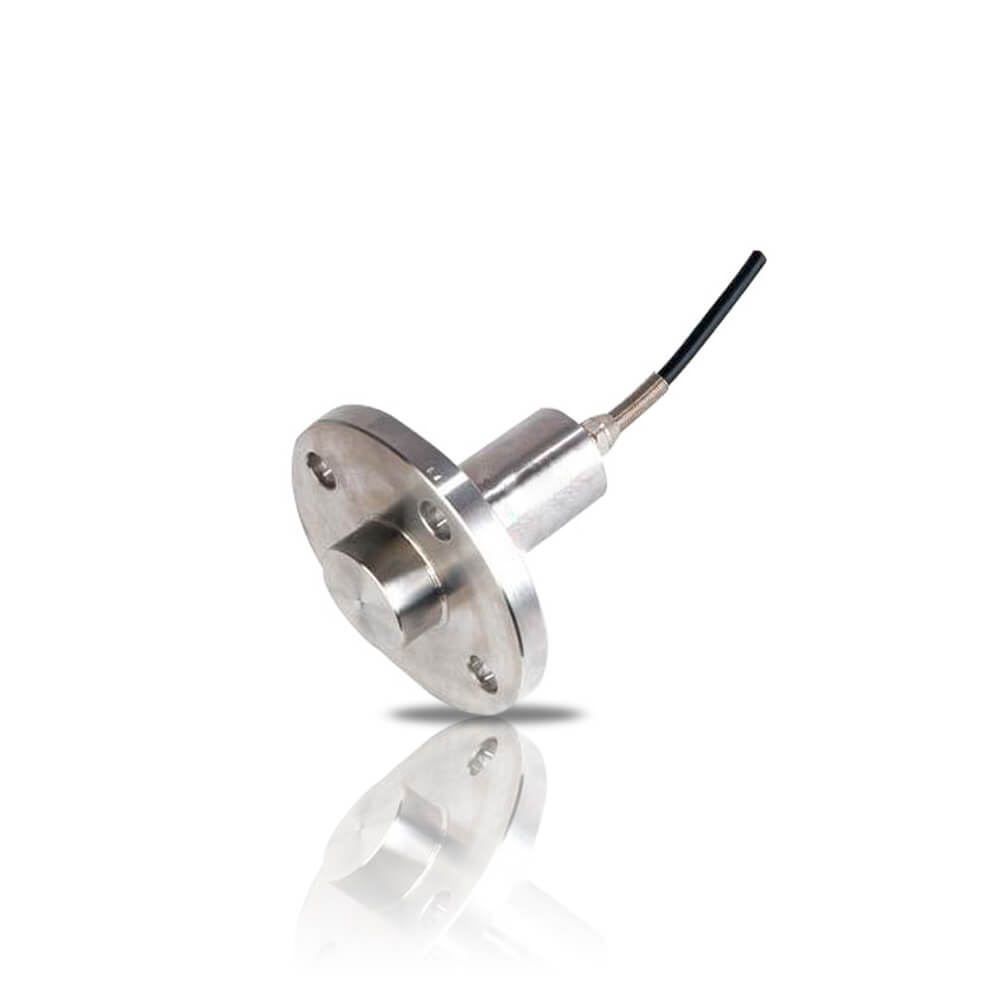

MT2200 : Mud Pressure Transmitter

Model : MT2200
Type : Mud
Range : 0 to 600 bar
Output : 4 – 20mA, 0 to 5V, 0.5 to 4.5V, 1 to 5 V, 0 – 10V
Accuracy : ± 0.5% of F.S
Temperature Limits : -25 to 80ºC
Over Pressure : 2X
Download
Download

Description

Description :

MT2200 pressure transmitter special design for fractruing true application, it adopts the firm diaphragm with special treatment; consummate dynamics transfer configuration design to make the flush diaphragm no damaged by the hardness grit of the tested medium. This model has the character of compact configuration, corrosion resistance, shock proof, wide range temperature compensation.

Application

It is application for various project equipment, such as tunneling equipment, digger, fracturing truck, loader, brick making machine, liquid pressure, oil exploration and mud pressure measuring.

Additional information

Standard Version

: 50mm, 63mm, 100mm, 150mm, 250mm
Pressure range

: 6bar, 1Obar, 20bar, 50bar
Output

: 4-20mA, 0-5V/10V, 2mV/V, 3.33mVA/V
Supply voltage

: 12-36VDC; 10VDC
Accuracy

: 0.25%FS, 0.5%FS, 1.0%FS
Diaphragm material

: 316L
Cover material

: 304, 304L
Operating temperature

: 0~80 °C
Process connector

: Flange type, hold-down type
Electrical connector

: 4PIN, 6PIN, 7PIN connector
