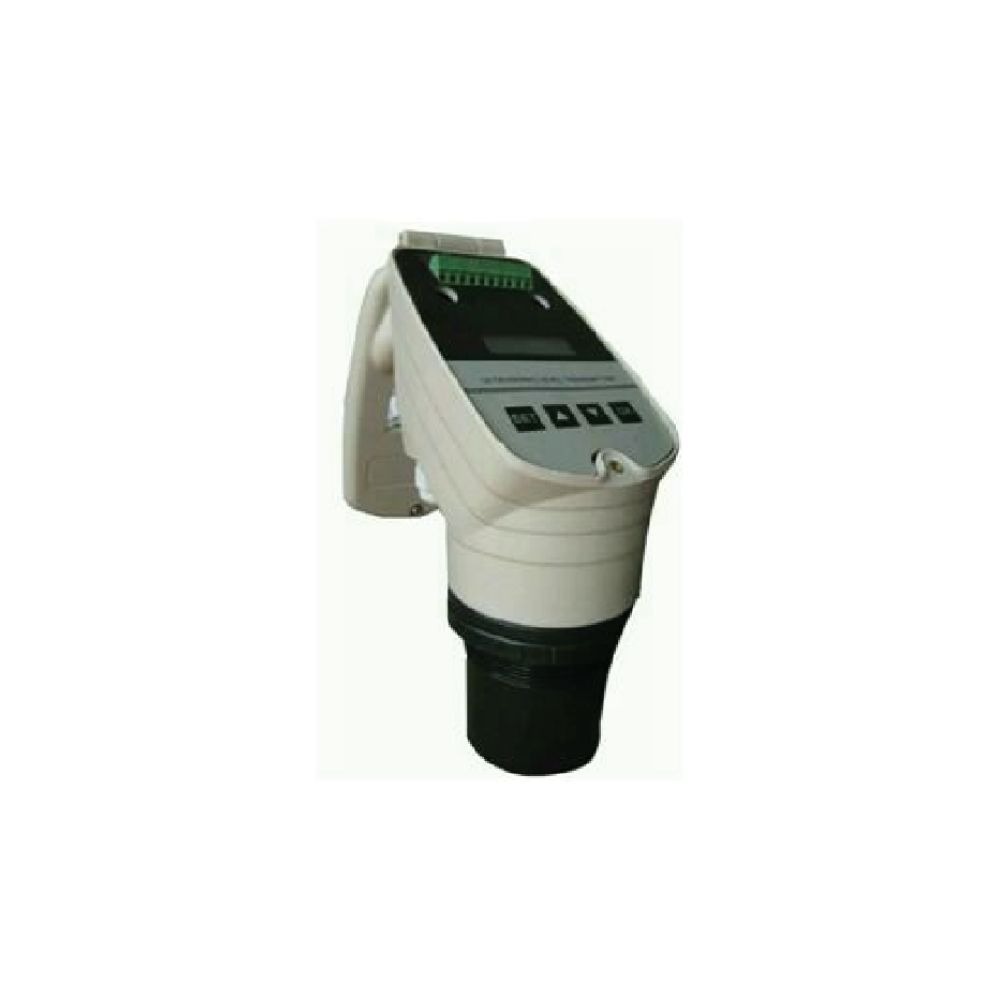

ML8E : Level Transmitter
|
||||||
Description
Applications and Features
ML-8E Ultrasonic Level Transmitter offers compact size, high performance, and outstanding operation capabilities. The Transmitter is specially designed to provide the convenience of non-contact measurement of Level. Sophisticated
design and rugged construction guarantee no maintenance. The meter consists of an ultrasonic sensor and an electronic transmitter unit. Ultrasonic pulses are emitted by the sensor to the surface of the measured medium. Part
of reflected ultrasonic pulses are received by the transducer and converted into an output electronic signal. The relationship among distance S, sound speed C and transmission time T is: S=CxT/2.
Features
- Microprocess Based Transmitter.
- Digital LCD Display.
- High Performance with Low Cost.
- On-Site Reranging though buttons.
- Dual Relay Output Optional.
- Measuring Cycle of 1 second.
- High Resolution of 3mm.
Additional information
| Accuracy | ±1.0% |
|---|---|
| Sensor Temperature | – 20°C to 85°C |
| LCD Temperature | – 20°C to 55°C |
| Resolution | LCD |
| Supply Voltage | 24 VDC |
| Output | 4-20 mA |
| Relay Output | IP55 |
