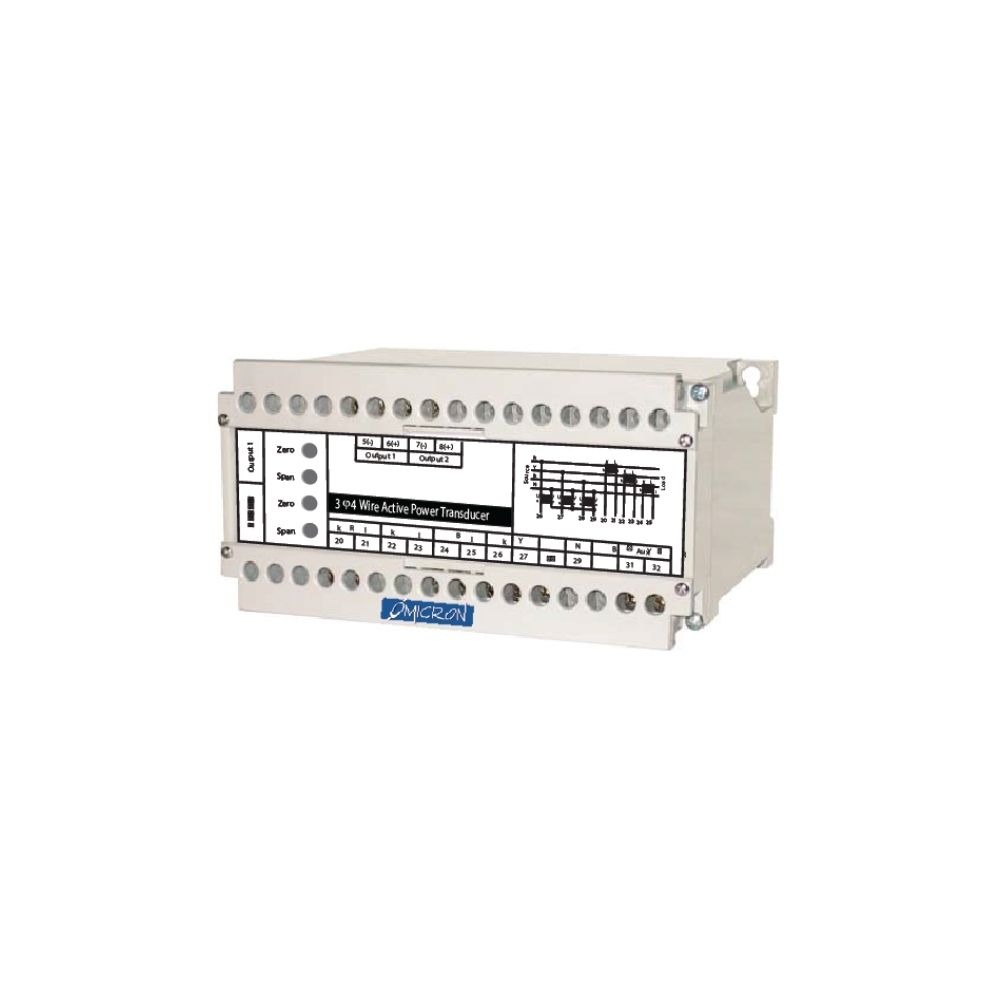

KWT : Power Transducers (WATT)
|
Description
OMICRON AC Active Power (Watt) & Reactive Power (Var) Transducers measure Power in 1 Phase, 3 Phase 3 Wire and 3 Phase 4 Wire in balanced or unbalanced electrical systems and converts it to an industry standard output signal which is directly proportional to the measured input. These Transducers provide an output which is load
independent and isolated from the input. These Transducers can measure both Import and Export of Power. The output can be connected to Controllers, Data-Loggers, PLC’s, Analog / Digital Indicators, Recorders for display, analysis or control. They are ideal for SCADA, Energy Management, Telemetering for Remote, Local as well
as Central Monitoring Systems.
Additional information
| Input Voltage | 0-63.5/110/230/440 V (any one only) |
|---|---|
| Input Current | 0-1/5 A (any one only) |
| Input Frequency | 50/60/400 Hz (any one) |
| Input PF Range | 0 (Lag) – 1 – 0 (Lead) |
| Measuring Range | 0-1.2 x Un x In |
| Overload (continuous) | 2 x In and 1.2 x Un |
| Burden (Voltage) | < Un x 5.5mA/Phase |
| Burden (Current) | < 0.5VA / Phase |
