CS : Current Sensors
|
|||
Description
Features :
 |
Self powered, no external power supplyrequired |
|
1-5VDC output, connects directly toautomation systems |
|
One sensor for three ranges, jumper selected |
|
Low cost, replaces digital status relays |
|
Panel mounting |
Description :

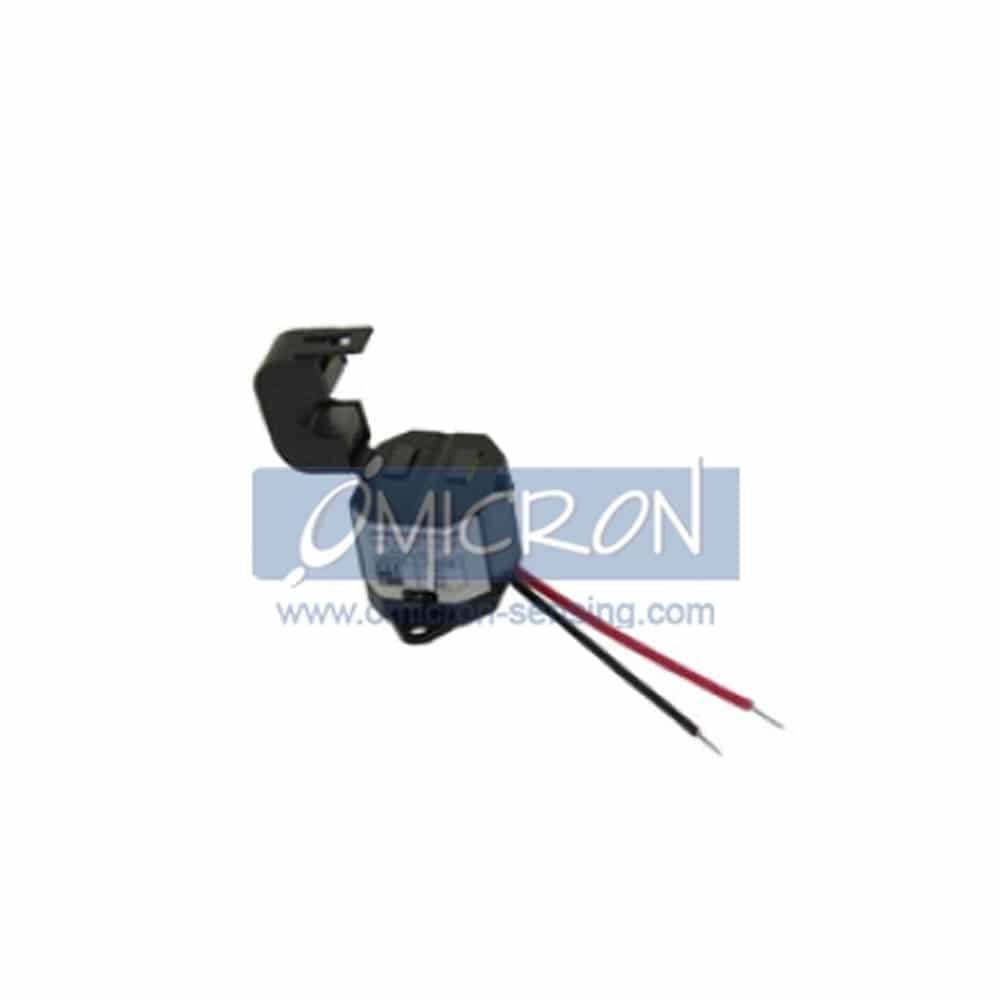

The CS Current Sensor is a solid state transducer for measuring the current in fans, pumps and other HVAC equipment.Select one of three ranges by moving a jumper onthe device to operate over 10A, 20A and 50A. This sensor outputs 0-5V directly and requires no power supply. Clamping / Split Core Current Transformer is designed
to provide a low cost method to monitoring electrical current.
A unique hinge and locking snap allows attachment without interrupting the current-carrying wire. High secondary turn will develop signals up to 10Vac across a burden resistor.
Additional information
| Power Supply | : Not required |
|---|---|
| Operating Temperature | : -20 ~ 60 OC |
| Operating Humidity | : 0 ~ 95% RH |
| CT Material | : ABS (UL94) |
| CT Ranges | : 10, 20, 50Amp, jumper selected |
| Output Signal | : 1~5VDC; porportional to average current |
| Accuracy | : 2% |
| Plastic housing | : Flammability rating UL94V0 file E194560 |
