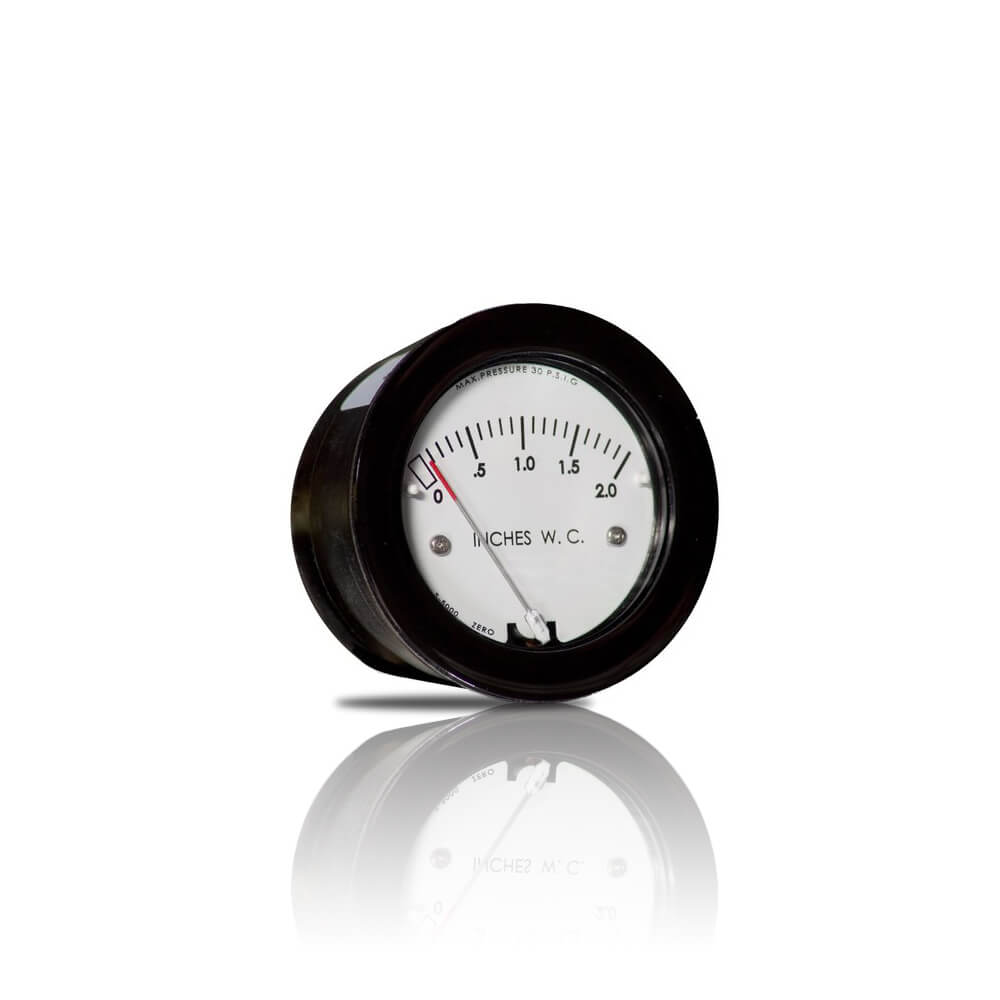

H5000 : Low Cost Differential Pressure Gauge
|
Description
Special Features :
 |
Mounts in Industry Standard Holes |
|
Accuracy 5% |
|
Glass Filled Nylon Housing |
|
Indicates Negative, Positive, or Differential Pressure |
|
Frictionless Movement |
|
Resists Shocks, Vibration, and Over Pressure |
|
OEM Branding Options Available |
Applications :
H5000 Low-Cost Differential Pressure Gauge Is The Industry Standard To Measure Fan And Blower Pressures, Filter Resistance, Air Velocity, Furnace Draft, Pressure Drop Across Orifice Plates, Filter Status, Room Pressure, Duct Static Pressure, Paint Booths, Dust Collectors And Cabinet Purging Along With Many Others.
Additional information
| Pressure Ranges | : Various Ranges Upto 200 KPa |
|---|---|
| Pressure Limits | : -20”Hg to 15 PSI (Available upto 50 PSI for Higher Ranges) |
| Media Compatability | : Air and Non-Combustible, Compatible Gases |
| Accuracy | : ±5% of F.S (For Ranges over 0.5“wc) |
| Temperature Ranges | : -20°F to 140°F (-7°C to 60°C) |
| Mounting Orientation | : Diaphragm in Vertical Position |
| Size | : 2 7/16” (62 mm) diameter dial face |
| Housing Material | : Glass Filled Nylon Case with Acrylic Cover |
| Process Connection | : 3/16“ ID Tube |
| Weight | : 170 grams |
| Accessories | : 4-40 x 1-5/8 mounting studs with hex nuts, 0.5” hex allen wrench, panel mounting bracket |
