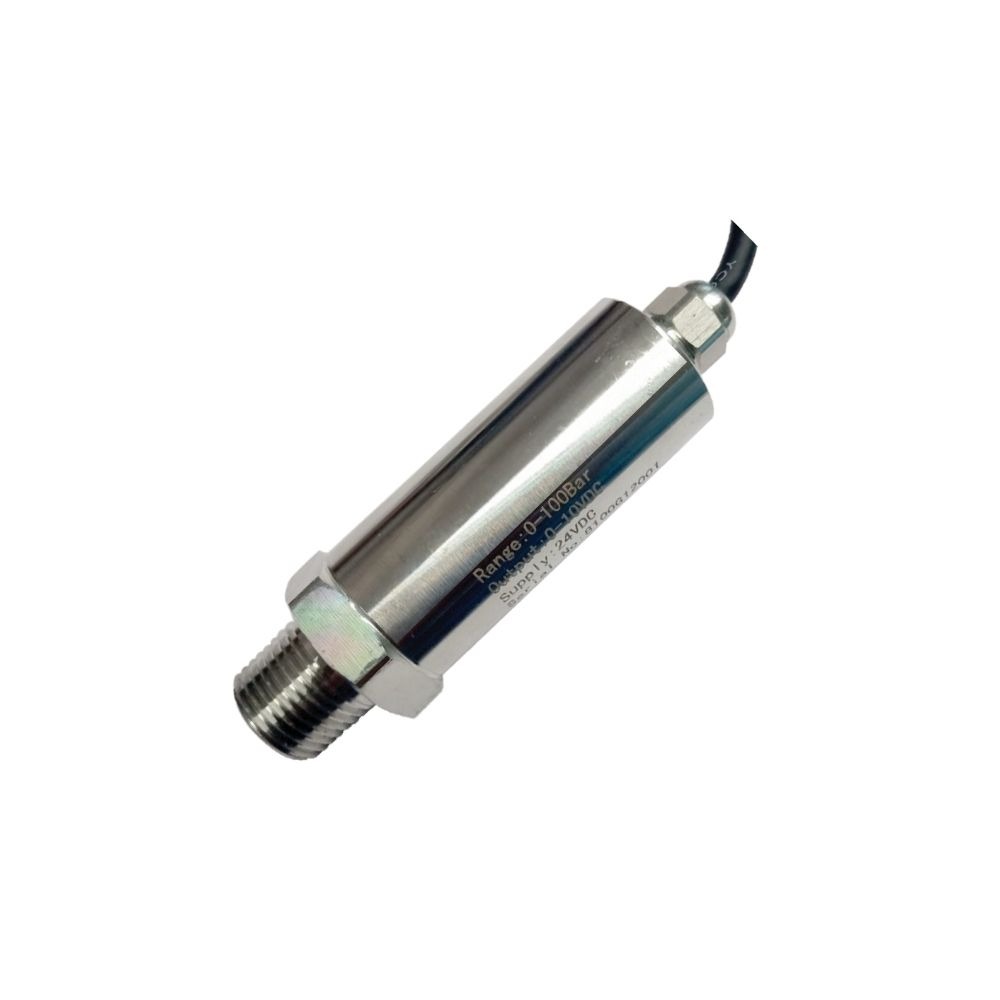

CP3200 : Cryogenic Pressure Transmitter
|
||||||
Description
High Accuracy Ultra Low Temperature Pressure Transmitter
Applications
- Our CP3200 Series is a family of cryogenic pressure transducers, offering consistent measurement accuracy in
temperatures as low as -320 °F (-196 °C). The Series features a lightweight, all stainless steel construction with choice of either 4-20 mA or 0 to 10 Vdc output. The high-reliability of the CP3200 Series has been successfully field-proven over 25 years and hundreds of critical applications.
Additional information
| Pressure Range | 15 Bar ~ 350 Bar (Gauge Datum) |
|---|---|
| Accuracy | ±0.70% of F.S |
| Linearity | ±0.05% of F.S |
| Repeatability | ±0.10% of F.S |
| Hysteresis | ±0.15% of F.S |
| Drift | ±0.75% of F.S / year |
| Frequency | 1KHz |
| Operating Temp | -196°C to 80°C |
| Ambient Temp | -40°C to 60°C |
| Ambient RH | 5 to 95% RH |
| Proof Pressure | 2X |
| Burst Pressure | 5X |
| Shock | Upto 50g |
| Supply Voltage | 12 – 36 VDC |
| Output | 4-20 mA / 0-10V DC |
| Wetted parts | AISI304SS |
| Diaphragm | AISI 316L SS |
| Case | AISI 304 SS |
| Media Compatibility | All Materials compatible with Stainless Steel |
| Protection | IP 65 |
| Agency Approval | CE |
