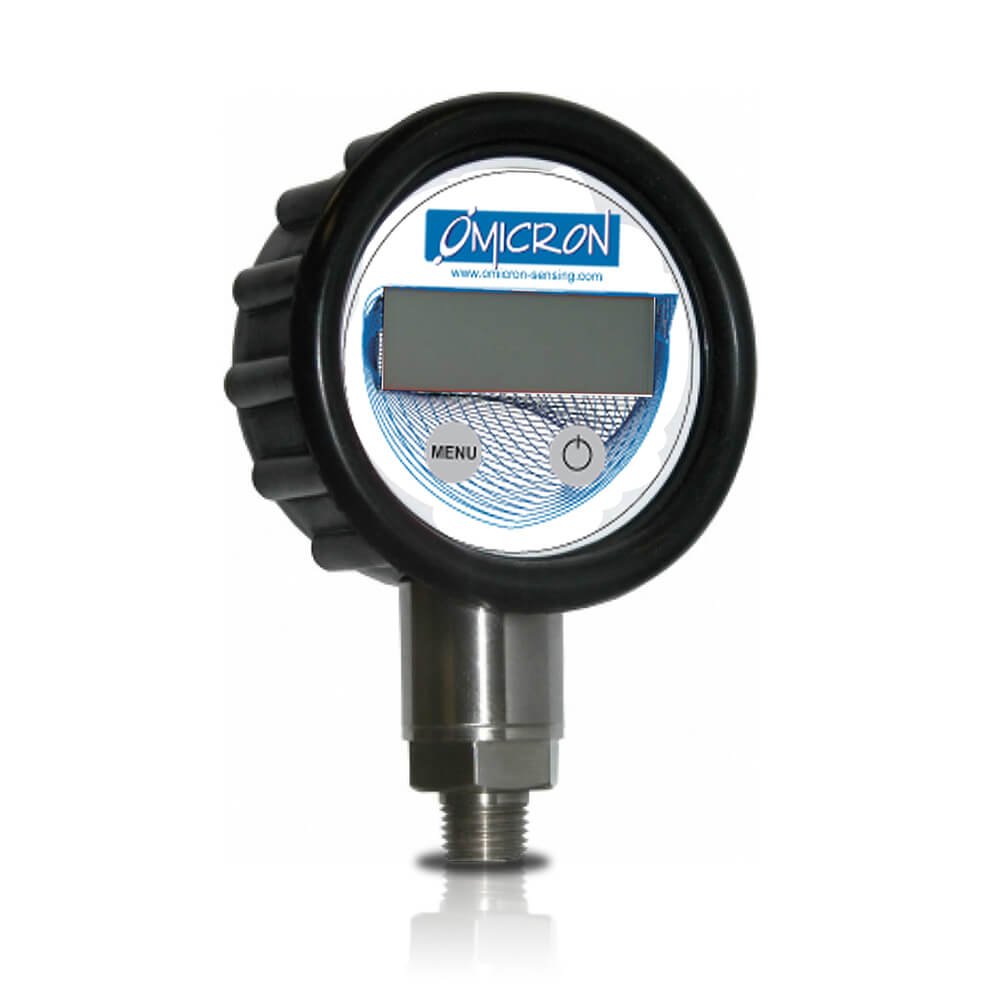

AS313: Digital Pressure Gauge
|
Description
Description & Features:
 |
Simple 2 button operation |
|
Reset to zero feature |
|
Backlight turns on when on/off button is pressed |
|
Option for display to remain continuously on |
|
Peak pressure indication option |
|
316L welded diaphragm seal |
|
Rubber boot is standard |
|
ASME B40.100 compliant |
|
±1% accuracy (±0.5% optional for gauges up to 5,000 psi) |
|
1 year warranty |
Applications:
Ideal for commercial and industrial application in both test measurement and general
purpose installations.
Additional information
| Case Size | : 2.5” (63mm) |
|---|---|
| Case Material | : ABS (IP64) |
| Rubber Boot | : Silicone rubber (IP65) |
| LCD Display | : 2” x 3/4” (48mm x 16mm) |
| Connection | : 1/4” NPT 304SS |
| Sensor | : 316L welded, Piezo |
| Operating Life | : 1 million cycles |
| Pressure Unit Selection | : psi, mHO, mmHg, mbar, kPa ranges 100 psi psi, bar, kg/cm, MPa, atm ranges ! 160 psi |
| Power Supply | : 2 x AAA battery (1.5V) |
| Battery Life | : 2 yrs (auto shut-off mode) |
| Power Mode | : Auto or manual shut-off |
| Display Digits | : 4 digits to 5,000 psi 5 digits for 10,000 psi and 15,000 psi |
| Resolution | : 1 digit |
| Operation Mode | : Continuous process pressure reading or peak pressure reading |
| Response Time | : 3 Hz display refresh rate |
| Proof / Burst Pressure | : 200% / 300% FS |
| Operating / | : 14°F to 122°F (-10°C to 50°C) |
| Storage Temperature | : -4°F to 167°F (-20°C to 75°C) |
| Accuracy | : ±1% (±0.5% optional for gauges up to 5,000 psi) |
