APT2000

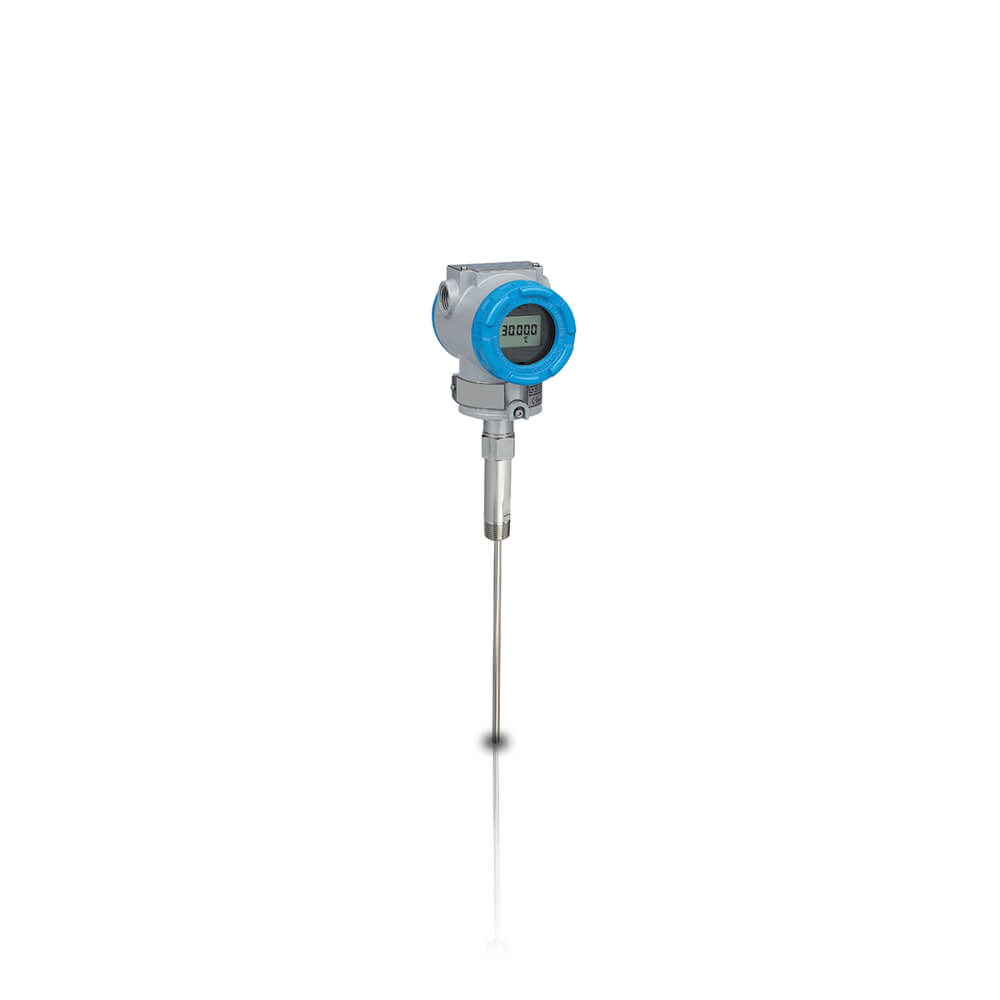

APT2000 : SMART Temperature Transmitter

	Type	: Temperature Transmitter
	Model	: APT2000
	Temperature Range	: -200 to 1800°C
	Accuracy	: ±0.075% of F.S
	Output	: 4 – 20mA; HART Superimposed
	Power Supply	: 12 – 36V DC
	Download	[wpdm_package id=’1498′]

Description
Additional information

Description

Special Features

	Programmable Input (Pt-100 / Thermocouple / Variable Resistance)
	Linear Signal Output
	Current Loop Powered.
	LCD Display with Bargraph
	High Performance; High Reliability

Applications :

Food & beverage, pharmaceutical, chemical & petrochemical industries, conventional & nuclear plants, pumps, presses, turbines, hydro-cleaning machines, diesel engines & refrigerating plants.

Additional information

Input	: Thermocouple / RTD / mV
Output	: 4 – 20 mA, Super Imposed HART
Accuracy	: ±0.075% of the calibrated span
Operating Temp.	: -40°C to 85°C
Calibration	: Settable via HART Protocol / Onboard Buttons
Display Range	: -19999 to 99999
Housing	: Diecast Aluminium
Power Supply	: 24V DC nominal (10.5 to 45)V DC
Load Resistance	: Max. (V Power Supply – 10.5V) / 0.022A
Protection	: Intrinsically Safe: Exia II CT4
