	Mounts in Industry Standard Holes
	5 Different Units in 1 Gauge
	Die Cast Aluminium Housing
	Indicates Negative, Positive or Differential Pressure
	High Accuracy MEMS Sensor provides 1% Accuracy
	Resists Shocks, Vibration and Over Pressure
	OEM Branding Options Available

Applications :

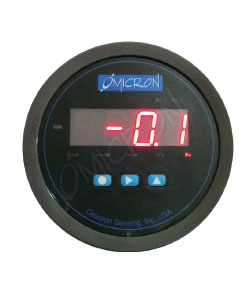

The DPG Low Cost Digital Differential Pressure Gauge Is The Industry Standard To Replace Analog Differential Gauges with Pointers. It can Measure Fan and Blower Pressures, Air Velocity, Furnace Draft, Medical Instruments and Pressure Drop across Orifice Plates.

Specifications :

	Pressure Ranges	: Various Ranges Upto 10 kPa
	Pressure Limits	: -20”Hg to 15 PSI (Available upto 25 PSI for Ranges above 5kPa)
	Media Compatability	: Air and Non-Combustible, Compatible Gases
	Accuracy	: ±1% of F.S (For Ranges over 0.25“wc)
		±2% of F.S (For Ranges < 0.25“wc)
	Power Supply	: 15-28V AC/DC; 85 - 265V AC
	Temperature Ranges	: -20°F to 140°F (-7°C to 60°C)
	Mounting Orientation	: Diaphragm in Vertical / Horizontal Position
	Display	: 3 1/2 Digit 0.8” Red LED
	Analog Output (Optional)	: 0 - 10V DC / 4 - 20mA
	Relay Contacts (Optional)	: 2 SPST, 1A @ 30VDC / 0.5A @ 125VAC
	Housing Material	: Die Cast Aluminium Case with Acrylic Plate
	Process Connection	: 1/8” NPT (F) x 4
	Weight	: 340 grams
	Protection	: IP65
	Function Keys	: Zero, Calibrate, Units, Relay Setting
	Accessories	: Two 1/8” NPT Barbed Fittings With Plugs And Three Mounting Screws
