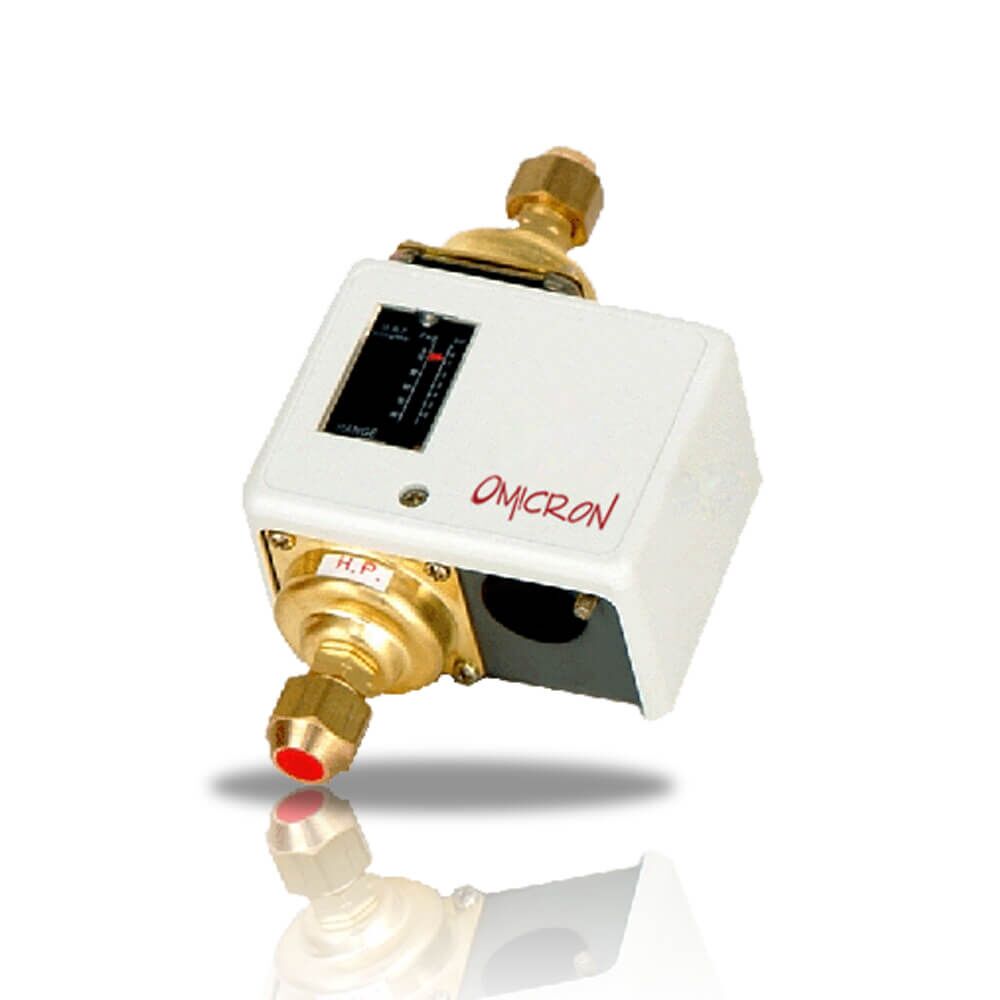

UDPS

Model : UDPS
Media : Wet / Wet
Enclosure : ABS
Wetted Parts : Copper Alloy
Range : 0 to 4 Bar
Accuracy : ±5% of F.S
Electrical Rating : 15A, 250V AC
Download

Description

Special Features
  • Field Adjustable.
  • Compact and Reliable.
  • Snap Action Microswitch.
Applications :

Food & beverage, pharmaceutical, cryogenics, chemical & petrochemical industries, conventional & nuclear power plants, pumps, hydro-cleaning machines, presses, engine compressors, turbines, diesel engines & refrigerating plants.

Additional information

Sensor

: Phosphor Bronze Bellows

Enclosure

: PVC; Weatherproof to IP 32

Ambient temperature

: – 20 °C to + 70 °C

Process temperature

: Max 100 °C

Operating pressure

: 75% of the Scale Value

Process Media

: Air, Oil and Water

Electrical Rating

: 15A, 250V AC

Scale Accuracy

: ±5% of F.S.R

Repeatability

: ±2% of F.S.R

Differential

: Field Adjustable

Mounting

: Direct / Panel

Process Connection

: 1/4” BSP (F)

Contact Rating

: 15A 110 / 220 VAC, 10A 24V DC res.

Switch

: Snap Action Microswitch

Wetted Parts

: Copper Alloy
