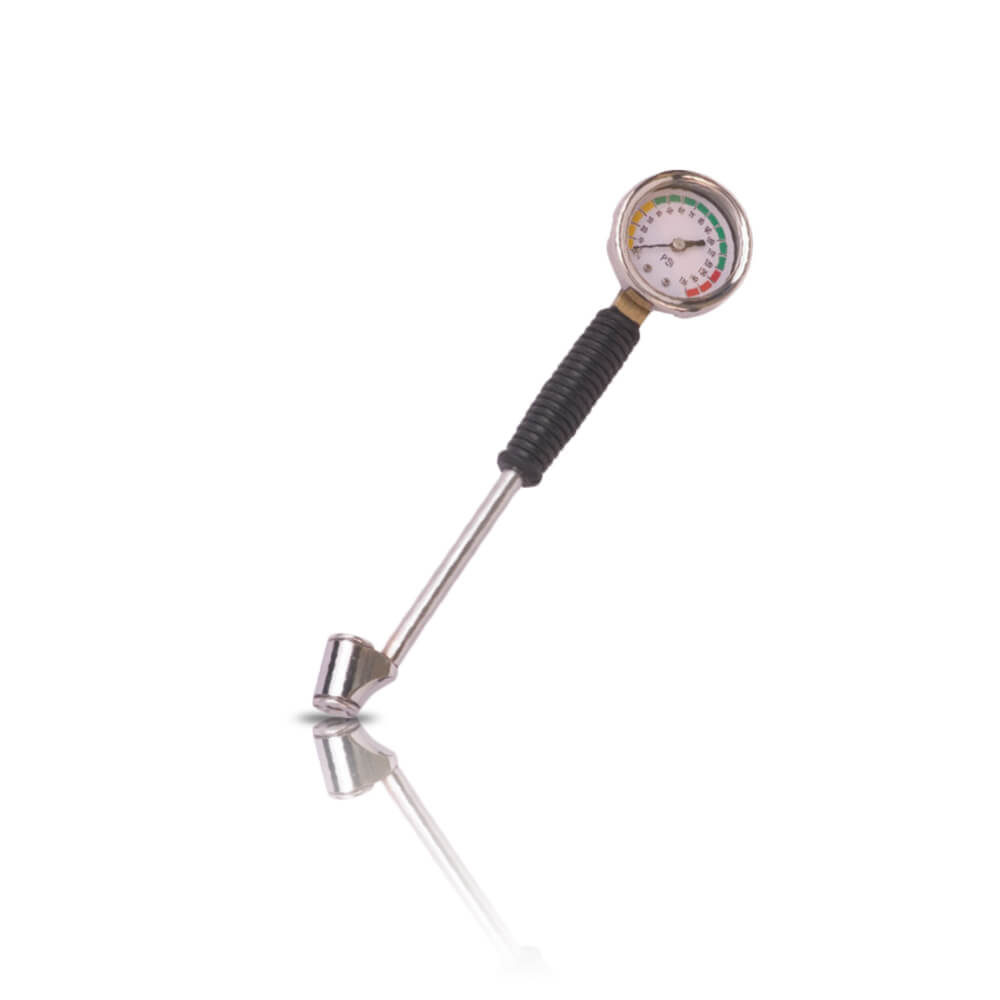

PGTG : Tyre Pressure Gauge
|
|||||||||||||||||||||
Description
Special Features :
- Stainless Steel Case and Bezel.
- Rugged Construction.
- Suitable for Tyre Pressure Measurement.
Applications :
These Gauges are suitable for tyre pressure measurement in auto mobile industries.
Pressure :
SINGLE SCALE (PSI)
RANGE
- 0/30
- 0/60
- 0/100
- 0/150.
Additional information
| Standard Version | : 50mm, 63mm |
|---|---|
| Accuracy | : 1.6% of Full Scale Value |
| Ambient temperature | : – 25 °C to + 65 °C |
| Process temperature | : Max 180°C |
| Operating pressure | : 75% of the Scale Value |
| Over pressure limit | : 130% of Full Scale Value |
| Case | : A1S1 304 SS |
| Ring | : A1S1 304 SS, Bayonet Type |
| Bourdon | : Copper Alloy |
| Socket | : Copper Alloy |
| Movement | : Copper Alloy |
| Joints | : Silver Brazing |
| Protection | : IP 65 |
| Dial | : Aluminium, black graduation on white background |
| Pointer | : Aluminium, black coloured Micrometer zero adjustable |
| Window | : Plexi Glass |
| Blow off Disc | : Neoprene |
| Gasket | : Neoprene |
