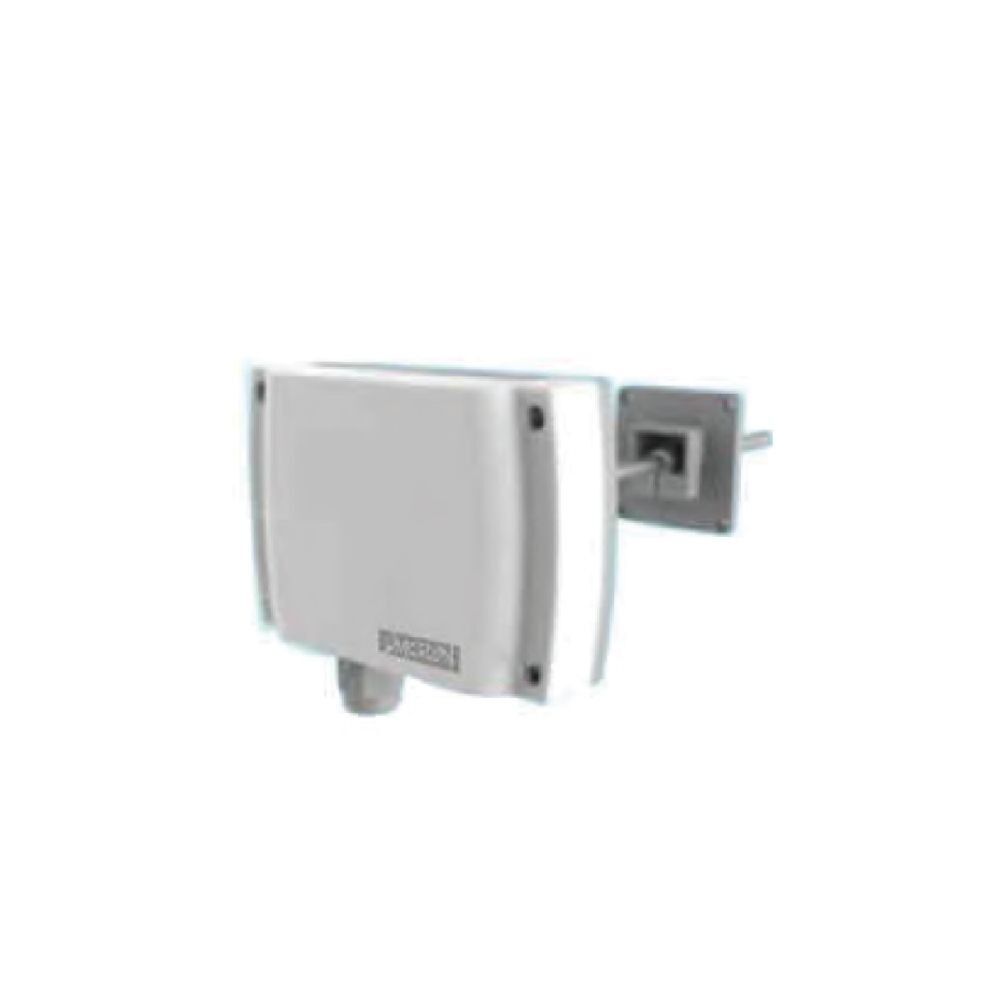

TTX4N : Temperature Transmitter

Model : TTX4N
Download

Description

 Immersion Temperature Transmitter
Applications and Features
  • Used for temperature measurement in water and a steam pipe.
  • High performance temp. sensor and long term stability.
  • Light and state of art housing, easy installation.
  • Multiple outputs selection, over voltage and reverse polarity protection, high reliability and anti-interference
    capability.
  • Wide temperature range and fast response.





Additional information

Sensor

PT1000, Class A

Range

see models

Output

4~20mA (2 wires) or 0-10VDC, 0-5VDC

Output Load

≤500Ω (current), ≥3KΩ (0-10VDC), ≥2KΩ(0-5VDC)

Total Accuracy

≤±0.2°C @0~50°C, see accuracy curve

Power

Current 18.5~35VDC (Rload=500Ω)
8.5~35VDC (Rload=0Ω)
Voltage 16~35VDC, 16~28VAC

Work Temperature

-30~70°C, 0~95%RH (Non cond.)

Medium Temperature (Probe)

-40~100°C

Storage Temperature

-30~70°C

Protection

IP65

Weight

350g

Approval

CE
