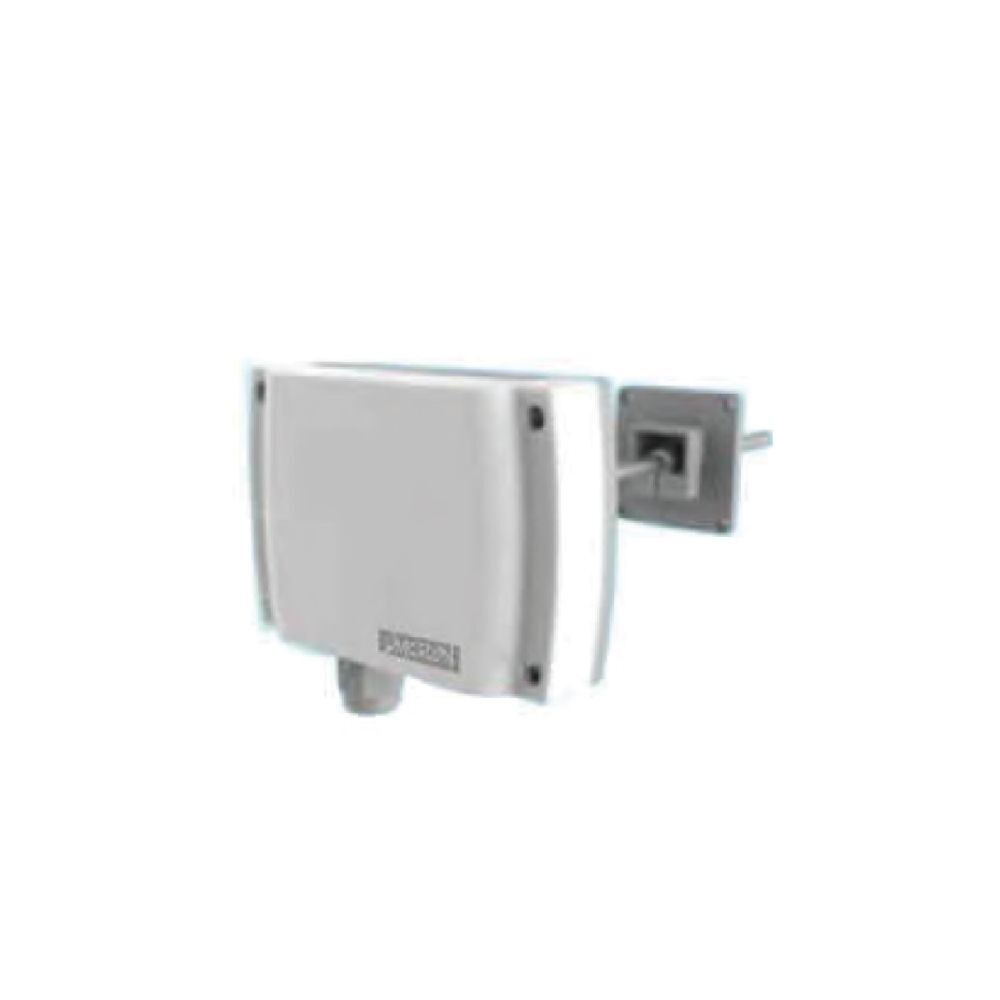

TTD6N : Temperature Transmitter
|
||||||
Description
Duct Mount Averaging Temperature Transmitter
Applications and Features
- TTD6N transmitters/controllers can be used for temperature monitoring and controlling in Duct Air.
- High-performance digital temperature sensor and digital technology applied, ensure accurate measurement fast response and good long term stability.
- Multiple outputs selection, over voltage and reverse polarity protection, high reliability and anti-interference capability.
- Optional relay for alarm or ON/OFF control.
- Wide working temperature range.
- High protection rate up to IP65.
- Set of 4 internal sensors to provide averaging with high reliability and interface capability
Additional information
| Sensor | 4 Digital temperature sensors for averaging output |
|---|---|
| Sensor Type | RTD PT-1000 |
| Range | see models |
| Output | 4~20mA (3 wires), 0~10VDC / RS485 Modbus RTU |
| Storage | -40~85°C |
| Temperature Relay | 1×SPDT, 1A/30VDC, 0.5A /125VAC |
| Accuracy | <±0.2°C@ -10~85°C |
| Power | 15~28VAC/15~36VDC |
| Operating Temperature. | -40~85°C |
| Humidity Temperature | 0~95%RH (Non condensing) |
| Storage Temperature | -40~85°C Housing: ABS |
| Protection | IP65 |
