T248R

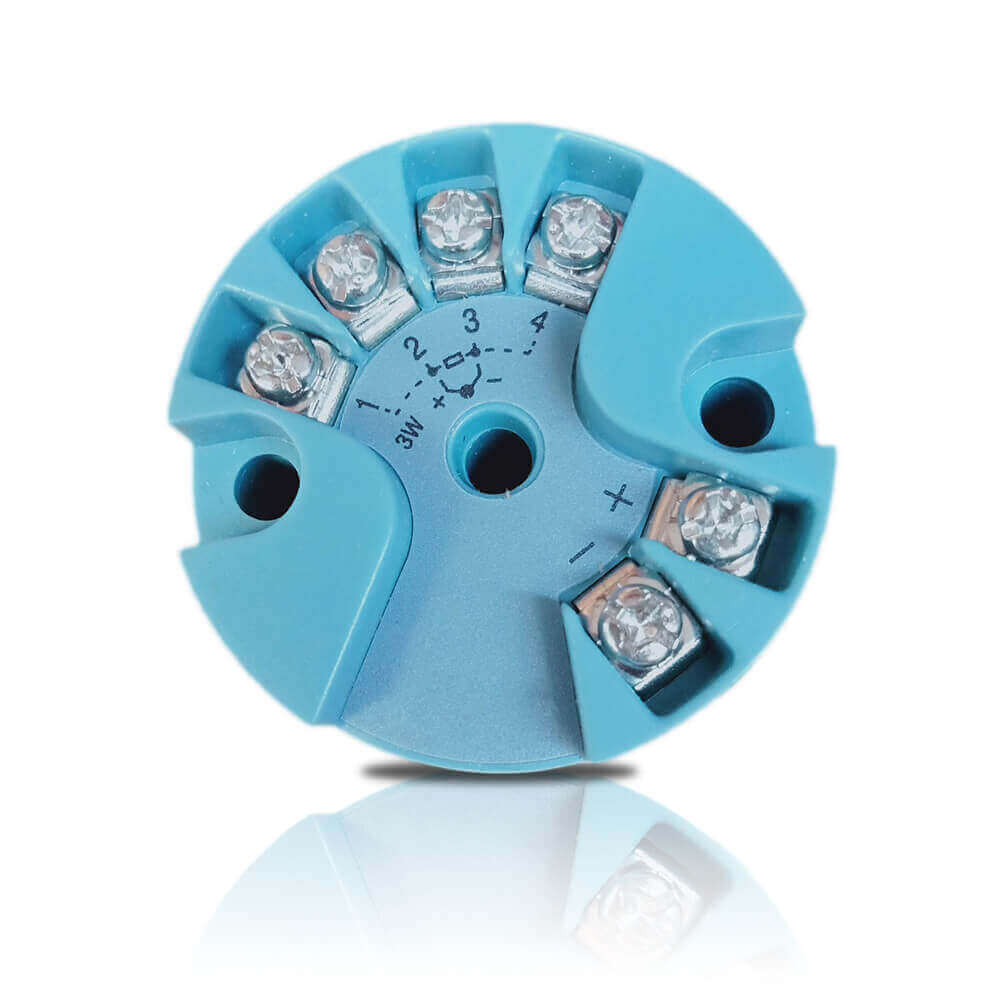

T248R: Universal Head Mounted Temperature Transmitter

Type : Universal Head Mounted Temperature Transmitter
Model : T248R
Input Sensors : RTD, Thermocouples, mV, Ω
Temperature Range : -270 to 1820°C
Accuracy : ±0.1% of F.S
Output : 4 – 20mA
Download
Download PDF

Description

Special Features
Programmable Input (RTD / Thermocouples / mV, Ω )
Linear Signal Output
Current Loop Powered
Configuration with a PC via USB cable
High Accuracy and Repeatability
Applications :

Food & beverage, pharmaceutical, chemical & petrochemical industries, conventional & nuclear plants, pumps, presses, turbines, hydro-cleaning machines, diesel engines & refrigerating plants.

Additional information

Input

: RTD: Pt-50, Pt-100, Pt-500, Pt-1000
: Thermocouples: Type B, E, J, K, N, R, S, T
: Resistance: 0 – 500 Ω / 0 – 4500 Ω
: mV: -120 ~ 120mV, -1000 ~ 1000 mV
Output

: 4 – 20 mA, two wire
Accuracy

: ±0.1% of the calibrated span
Operating Temp.

: -40°C to 85°C
Storage Temp.

: -40°C to 120°C
Calibration

: Configuration with PC via USB Cable
Ingress Protection

: IP68
Loop Supply

: 24V DC nominal (12 to 30)V DC
Loop Resistance

: 600 Ohm @ 24V DC
Burn Out

: Upscale for RTD / Thermocouples
