PD68 : Pressure Transmitters
|
||||||
Description

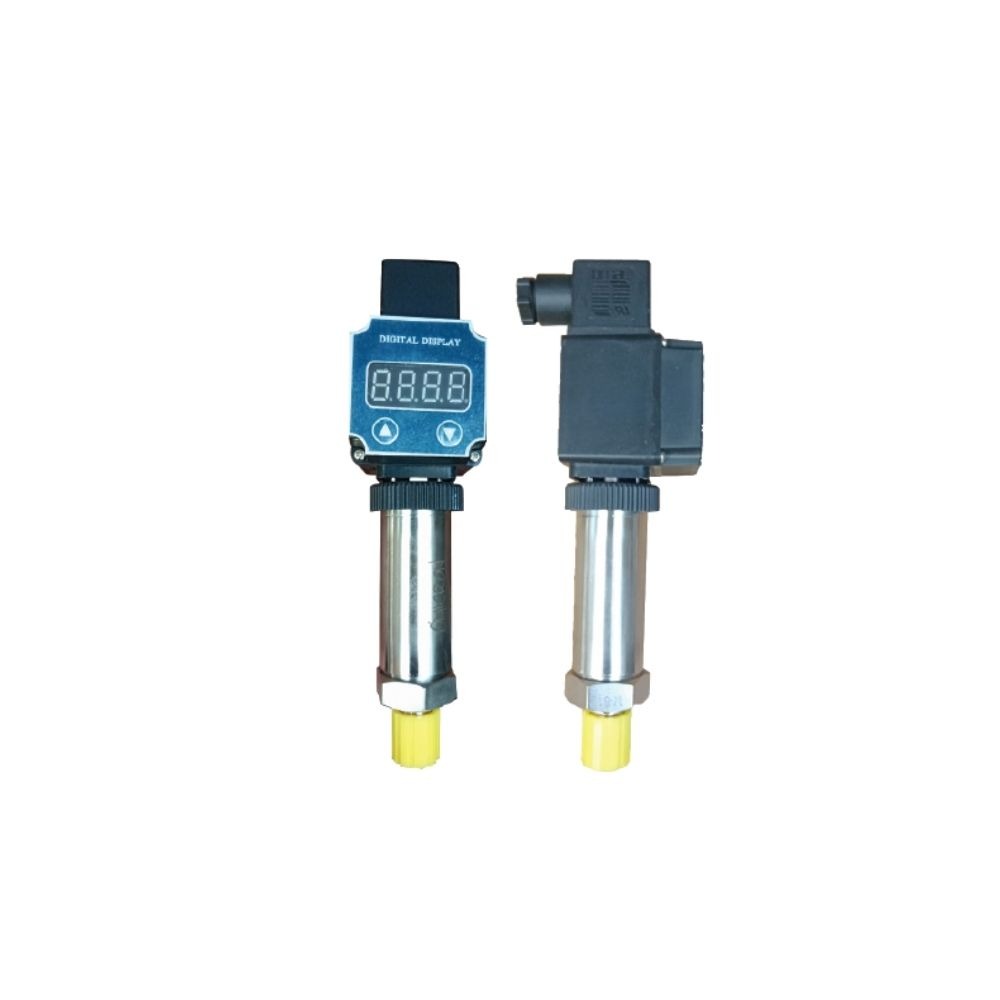

OEM Pressure Transmitter With Display
PD68 OEM Pressure Transmitters with Compact Design are used for various applications in Aviation Industry, Pharmaceuticals, Refrigeration, and HVAC Controls, Process Control, Motor Fuel Control, Water Pressure Monitoring, and High-end industrial machinery.
Features
- Inbuilt 4 Digit 7 Segment LED Display.
- Crevice Free Stainless Steel Construction.
- No Seals or O-Rings.
- Compact Version.
- Surge Protection, Reverse Voltage Protection up to 36V DC
Additional information
| Pressure Range | 3 Bar ~ 2000 Bar; Optionally available in psi / MPa / kg/cm2 |
|---|---|
| Accuracy | ±0.5% of F.S |
| Operating Temp. | – 40 °C to 125 °C |
| Compensated Temp. | -20°C to 85°C |
| Proof Pressre | 2X |
| Burst Pressure | 5X |
| Input Voltage | 18 – 36 VDC |
| Output | 4-20 mA / 1 – 5 VDC / 2 – 10 VDC |
| Display | 0.4”, 7 Segment Display |
| Wetted Parts | 17-4 PH SS |
| Diaphragm | AISI 316L S |
| Case | AISI 304 SS |
| Connector | Nylon 6/6 |
| Media Compatibility | All Materials compatible with Stainless Steel |
| Protection | IP65 |
| Agency Approval | CE, RoHS |
