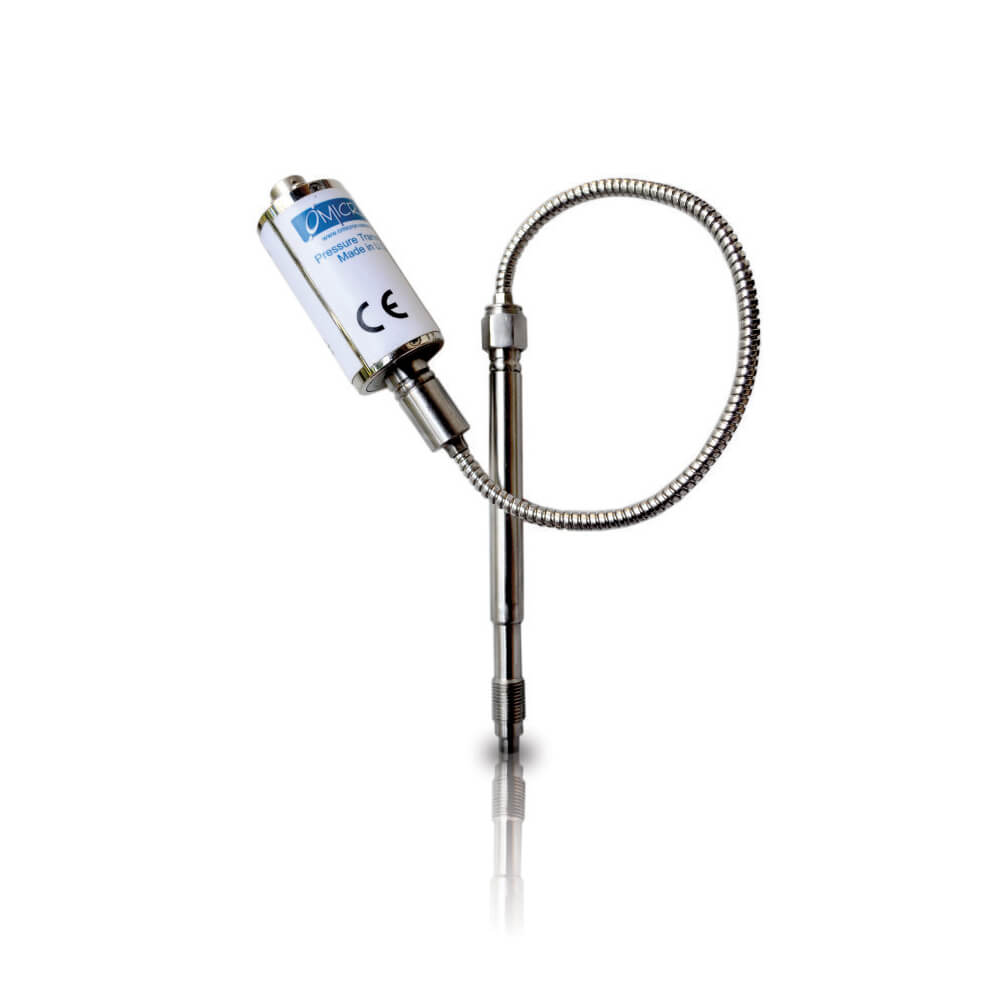

M1200 : Melt Pressure Transmitter
|
Description
Description :
M1200 Series Economic melt Pressure Transducer designed for economic applications. The model M1200 and MT1200 is with thermocouple, which can measure the pressure and temperature at one point. This series can be used together with the PVI Series Intelligent Digital Pressure Instrument of Omicron or other brand instrumentation. Zero & full span can be adjustable, with amplify signal can be connected with PLC. With the advantage of high precision and reliable pressure measuring and good quality, internal 80% calibration and etc.
Applications :
It can be widely used in various plastic extrusion line for pressure measuring and control, such as chemical fiber manufacturing equipment, plastic rubber machine, polyester equipment and petrochemical industries.
Additional information
| Pressure Range | : 0-3.5MPa–0-150MPa |
|---|---|
| Over Pressure | : 1.5 X FSO |
| Range | : 0 to 2000 bar |
| Combined Error | : ± 1.0% FSO, ± 1.5% FSO |
| Output | : 3.33 mV/V, 2mV/V; 4-20mA, 0-10V, 0-5V |
| Input Voltage | : 10VDC; 24VDC |
| Repeatability | : ± 0.2% FSO |
| Bridge Resistance | : Input: 345 Ohms minimum |
| Internal Shunt Calibration (R-Cal) | : 80% FSO ± 1% |
| Insulation Resistance | : 200 megohms @ 100 Vdc |
| Max Diaphragm Temperature | : 400 °C |
| Mounting Torque | : 500 inch/lbs, maximum |
| Standard Wetted Parts | : Diaphragm coated 15-5 PH SST |
| Electrical connector | : 5PIN connector |
| Process connector | : 1/2" – 20 UNF, M18 x 1.5 |
