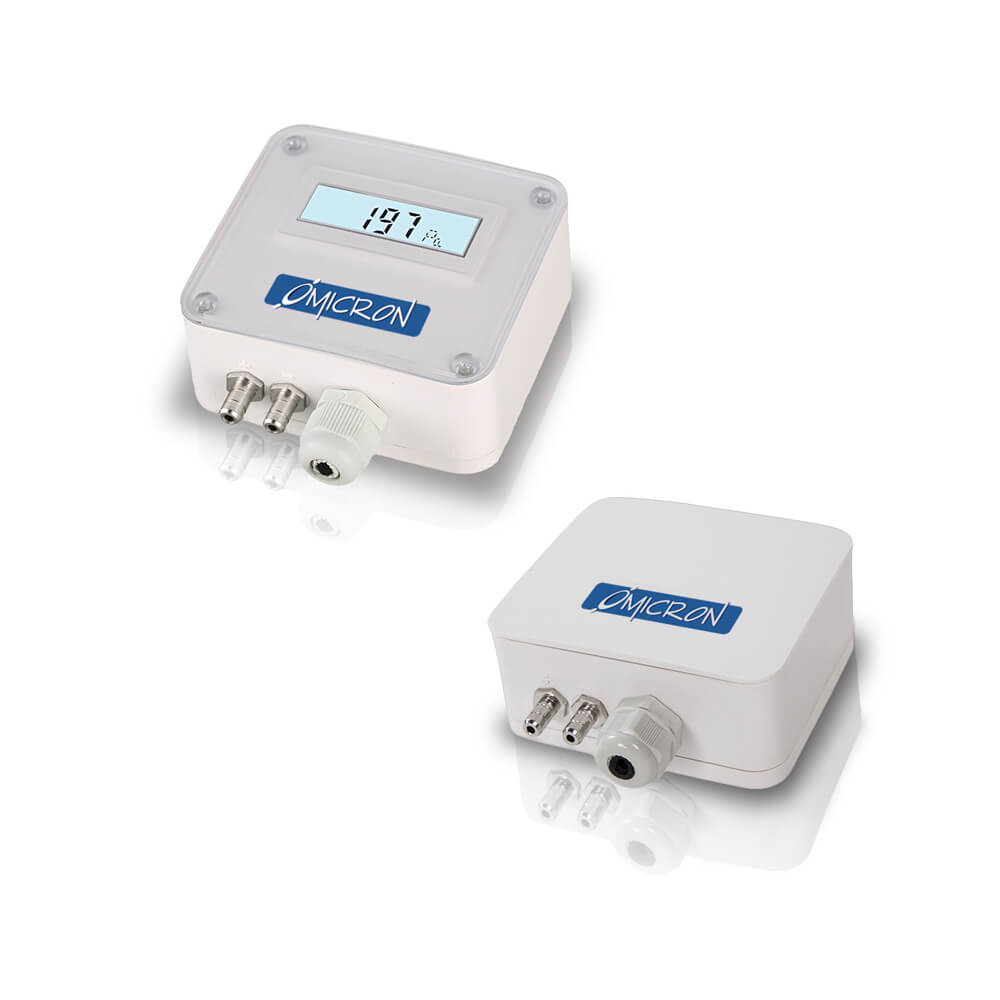

M11: Differential Pressure Transmitter

Model : M11
Range : -500 to 500 mmwc
Accuracy : ±0.25% of F.S
Output : 4 – 20 mA
Media : Air / Gases
Display : None
Download

Description

Special Features :
LCD backlit digital display
Auto zero calibration when power on
The imported pressure core
M11 Range:-1,000Pa~1,000Pa (Minimum range from 0~100Pa)
M11 Range : -10,000Pa~10,000Pa (Minimum range from 0~1,000Pa)
Adjustable differential pressure range
Housing with simplified mounting systems
This transmitter is apply to low differential pressure display and signal collection in HVAC, industrial equipment, intelligent building, test bench and other fields.

Additional information

Range

: M11 -1,000 ~ +1,000 Pa ( Minimum range from
0 ~ +100 Pa ) M11 -10,000 ~ +10,000Pa ( Minimum range from
0 ~ +1,000Pa )

Precision

: ±1.0% FS

Pressure Unit

: M11 / Pa, mmH2O, mbar, inWG,
M11 mmHG, daPa, KPa, hPa

Tolerated

: M11 15,000Pa

Overpressure

: M11 150,000Pa

Output signal

: 4 ~ 20 mA and 0 ~ 10 Vdc ( 2 signals available )
16 ~ 30 Vdc/Vac ( 2 wires )

Power Supply

: 24Vdc adaptor power supply
220Vac

Power Consumption

: 1.5W
