LSSF : Float Switch
|
Description

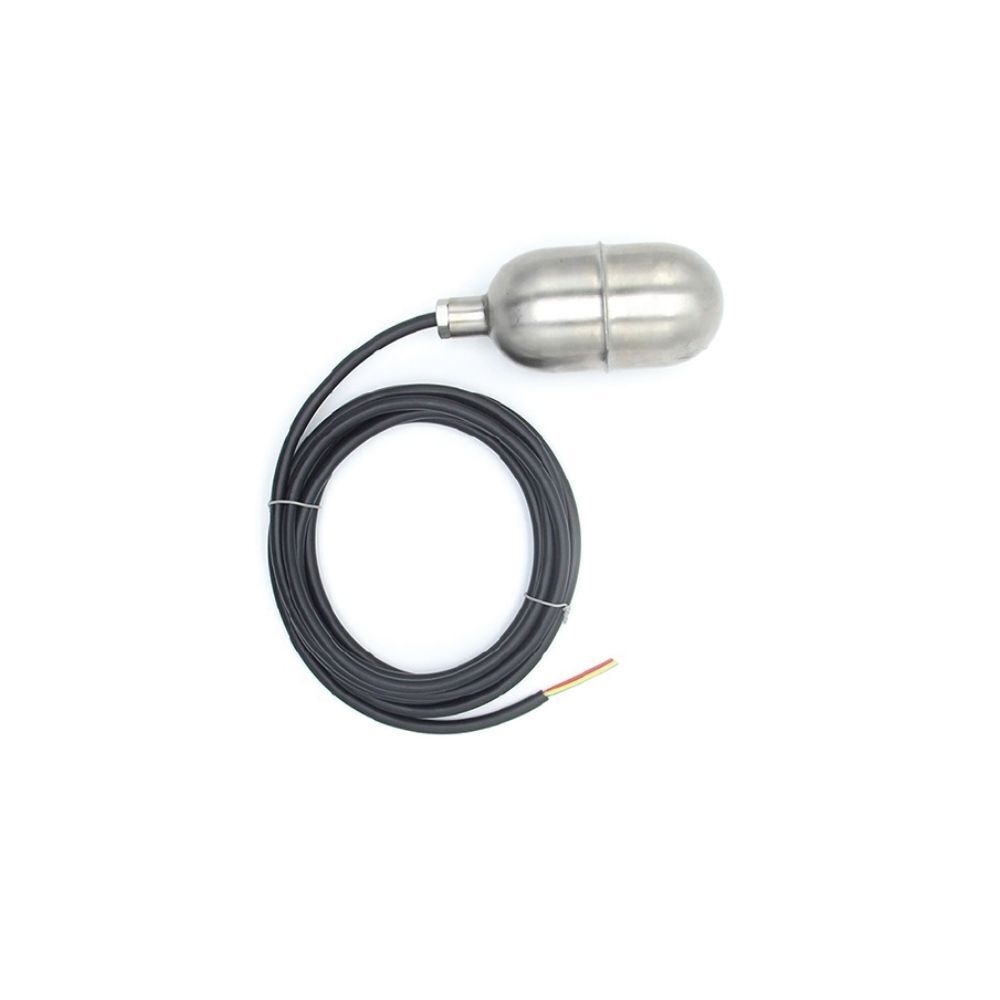

Cable Suspended Stainless Steel Float Switch
“OMICRON” make cable float switch is a control device for filling and discharging pumps, motor and magnetic valves. It is also an alarm device at certain pre-determined surface levels. It is suitable for use in non-flammable liquids at 250 volts. In dangerous enviroments (e.g. wells and pumping stations) we recommend 24 V voltage. In
potentially explosive atmospheres (e.g. oil tanks) the Switch can be used in conjunction with (Ex) i-isolator switch units. Due to its large float casing the float Switch has a buoyancy which guarantees smooth, trouble-free operation under all conditions. The switch has double chamber and a final remoulding finish to make it absolutely hermetic.
Additional information
| Switching element | Micro Switch |
|---|---|
| Life of Switch | 1,00,000 Operations |
| Rated voltage | 250 VAC |
| Rated Current | 10 Amp at 230 VAC Res |
| Optional | 15 Amp at 230 VAC |
| Pressure rating | 2 Bar |
| Heat rating | 70°C |
| Standard Cable | 5 Mtrs (Max. 20 Mtrs) |
| Float material | SS304 |
| Cable insulation | PVC |
| Protection | IP 66 |
| Agency Approval | CE |
