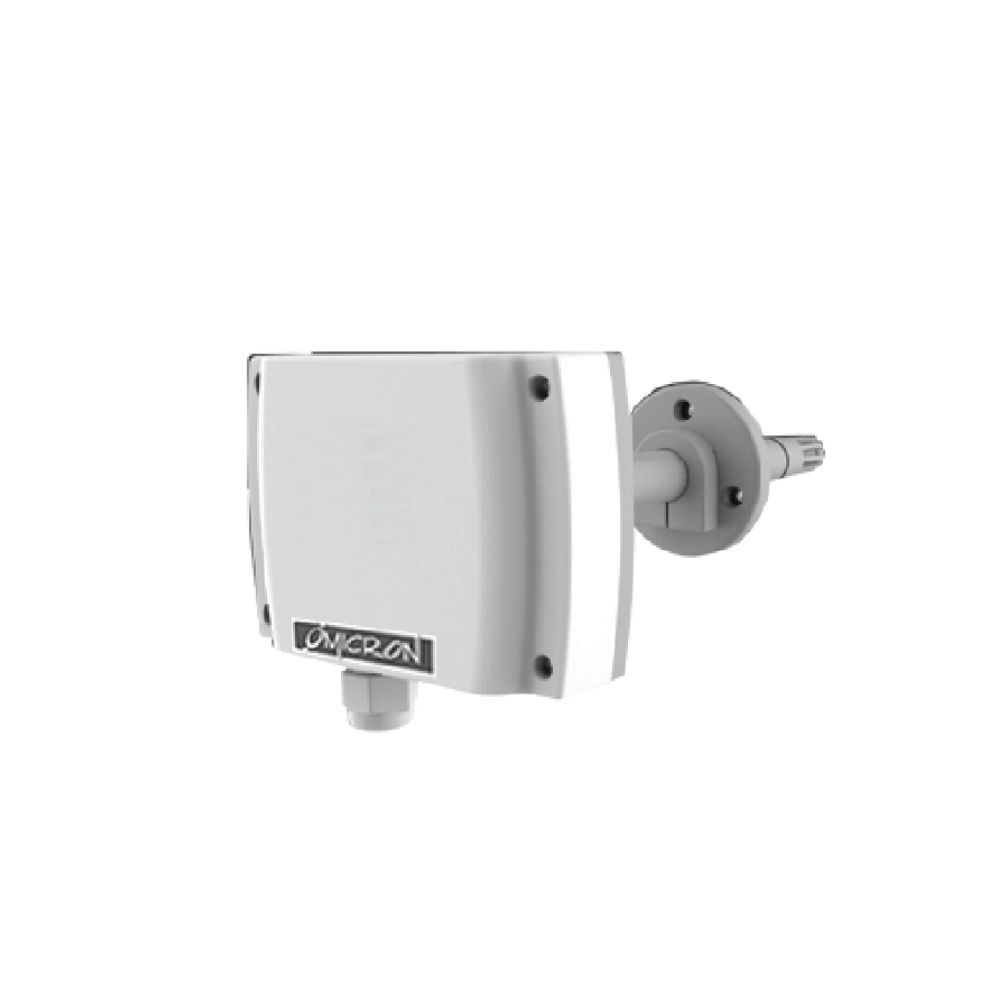

H6N : Humidity Transmitter
|
||||||
Description
Applications and Features
- Omicron humidity and temperature transmitters are designed for environment monitoring and controlling in industrial and commercial buildings.
- These transmitters can be used for Humidity and temperature monitoring of supply, exhaust and return air
Features
- Good long term stability and reliability.
- 100% field changeable sensors, no re-calibration needed.
- Fast response.
- Digital technology applied, multiple output optional, over voltage and reverse polarity protection, high reliability and interference capability.
- High protection rate up to IP65.
Additional information
| Range | 0~100%RH |
|---|---|
| Output | 4~20mA or 0~10VDC or RS485 Modbus RTU |
| Sensor | Solid state band gap, RTD or thermistor |
| Hysteresis | <±1%RH |
| Response time | <10s(25°C,in slow air) |
| Operating Temp. | -40~120°C |
