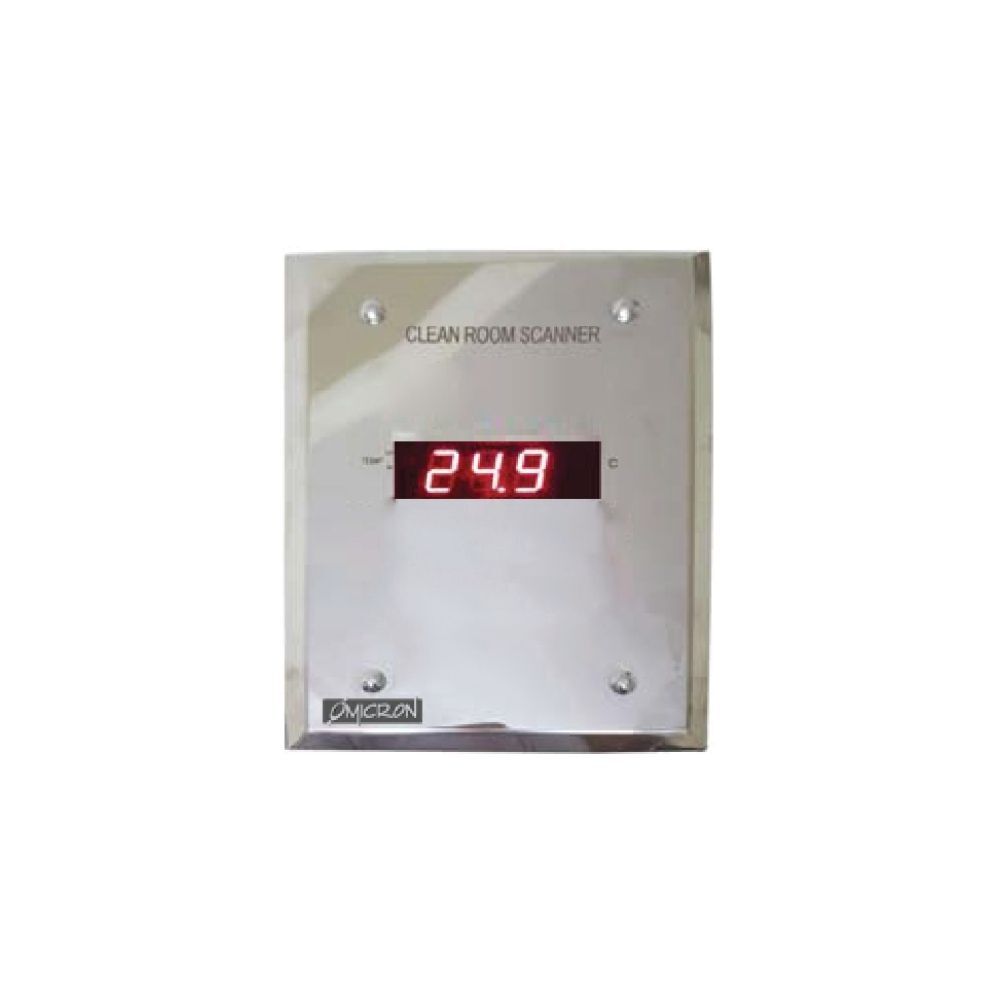

FTF : Temp. Transmitter For Cleanrooms
|
||||||
Description
The Clean Room Monitor is designed to measure the vital parameters of Temperature in Cleanroom Applications in Hazardous locations. The Model FTF is designed for minimum cabling & easy flush mounting in Modular Wall or Brick Walls of Clean Rooms. The sensors for measuring the temperature are integrated inside for ease of use & installation. The Model FTF is optionally available for Remote Sensor for measuring the temperature. The parameter is displayed on the instrument using external or Internal transmitters or sensors. Standout features in the Clean Room Monitor include integrated buzzer for parameter violation indication, individual LED for process violation, buzzer enable/disable feature & buzzer delay option and any other customized solution.
The instruments find immense use in Pharma Clean Rooms, APIs, Bulk Drugs, Electronic Hardware Manufacturing Plants, Test Plants, Green Houses, etc. Easy integration to Building Management Systems (BMS ) & SCADA interfacing allow easy set up & great control.
Additional information
| Input Voltage | Resistive / Polymer sensing for Temperature |
|---|---|
| Range | 0.0 to +60.0OC typical for Temperature (Any other |
| Output (Optional) | 4-20 mA Output |
| Resolution | Fixed 0.1 |
| Accuracy | 1) ± 0.25 °C for -30.0° to +50.0° Deg. C for Temperature |
| Display | 4 Digit RED LED Display of Height 1” |
| Supply Voltage | 24VDC |
| Mounting | Clean Room Modular Wall Flush Mounting |
| Cable Connection | Terminal Connectors |
| Cabinet | Stainless Steel Front Flush Plate for Clean Rooms, Diecast Aluminium Body Enclosure for Modular Wall Fitment |
| Agency Approval | CE, CCOE, CMRI |
| Calibration Protocol | COML |
