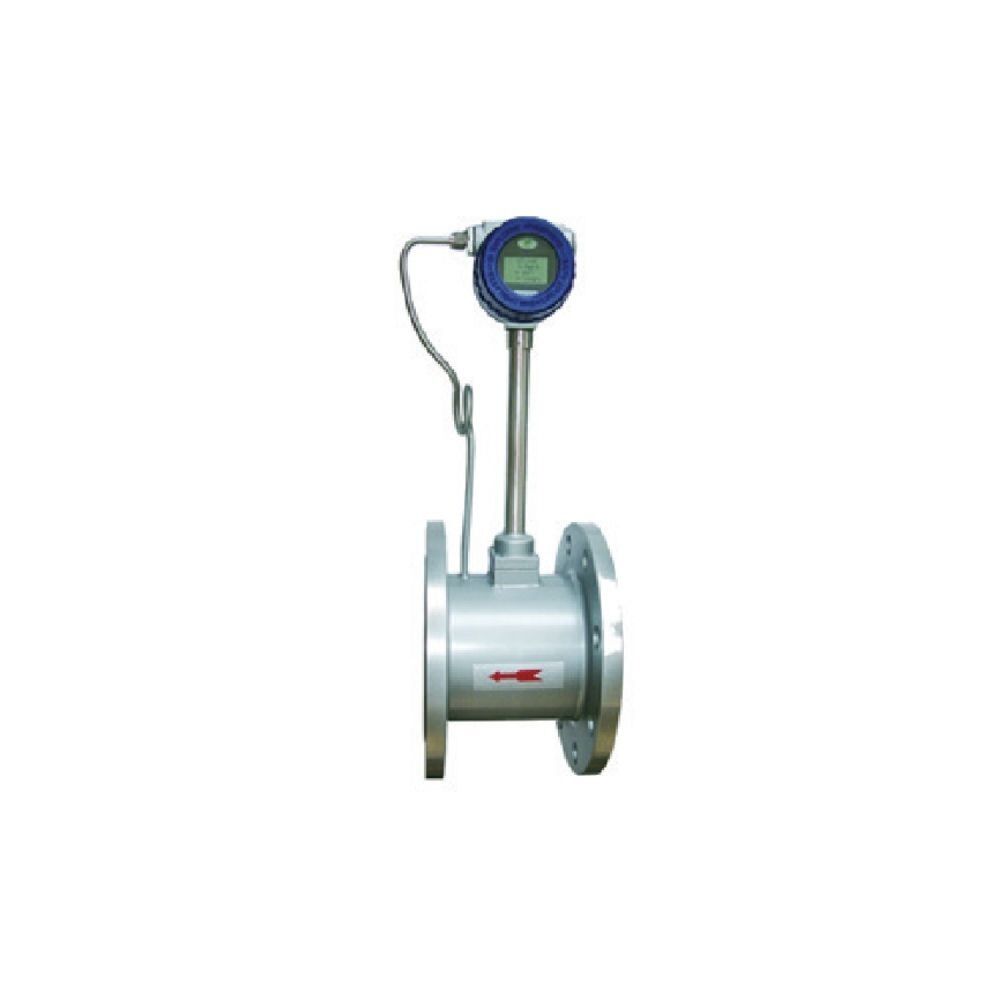

F8300 : Vortex Flow Meter (Biogas)
|
||||||
Description
P & T Compensated Flow Transmitter For Biogas
Applications
F8300 Vortex Flow Meter with new engineering innovations, consists of separate temperature and pressure sensors to monitor the changes in real-time, providing the best accuracy, even in applications to measure saturated steam. F8300 is specially designed for Biogas use, regardless of size (From 15MM to 400MM), F8300 withstands the rigors of industrial demands.
Features
Vortex Flow Meter with Pressure and Temperature Compensation High Accuracy with High Repeatability
Unique Gasket Free Design Ensuring a Clog Free Process No Moving Parts, Reducing the Maintenance Works with Air, Saturated and Super heated Steam and Liquids Optionally available for High Pressure Applications.
Additional information
| Media | Steam (Saturated / Super Heated), Air, Gas, Biogas |
|---|---|
| Line Size | 15MM to 400MM |
| Accuracy | ±0.5% For Liquids |
| Repeatability | ±0.3% For Liquids |
| Output | 4 – 20mA, 2 Wire (Optional Pulse Output) |
| Power Supply | 24VDC / Li-on 3.6V 14Ah |
| Media Temperature | – 40 °C to 250 °C / Optional -40 °C to 350 °C |
| Ambient Temp. | – 40 °C to 85 °C |
| Maximum Pressure | 16 Bar |
| Sensor MOC | AISI 304SS (Other Materials Optional) |
| Protection Grade | IP65 |
| Display | In Built LCD Display |
| Units | m3/h, m3/m, l/h, l/m, t/h, t/m, kg/h, kg/m |
