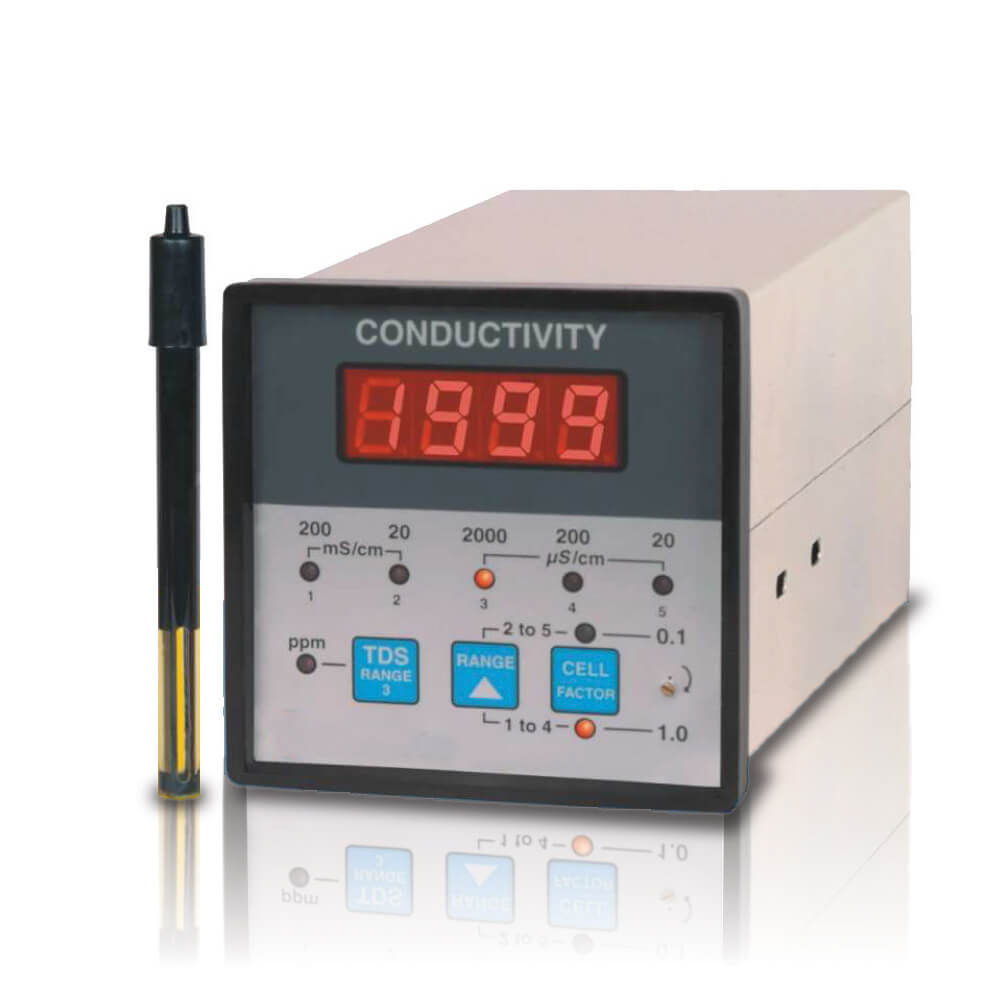

EC692 : Conductivity Transmitter With Display

Model : EC692
Download pdf :


Special Features :
Precision Online Indication of Conductivity
Automatic Temperature Compensation
Front Panel 5 Range Selection from 19.99μS/cm to 199.9 ms/cm
Cell Factor of 1.0 or 0.1 Selectable from the front panel
Bright Red LED Display
Automatic Temperature Compensation
Powder Coated Metallic Cabinet
Applications :

EC692 Conductivity Transmitter is one easy to use Panel Mounted transmitter for
continuous monitoring. Available with 4 digit LED display, the transmitter can transmit the EC value of your solution with a very high accuracy with added option of self calibration. With Automatic temperature compensation, EC692 delivers fast and high accuracy. Precision EC transmitter immediately detects changes in the conductivity of the solution. With a 230V AC power supply, This instrument features BNC composite electrode making it easier in the world to facilitate the replacement of used electrodes.


Additional information

EC Range

: 19.99 ms / 1999μS / 199.9 μS / 19.99 μS (0.1 Cell Factor)
199.9 ms / 19.99 ms / 1999μS / 199.9μS (1.0 Cell Factor)

Operating Temp.

: – 20°C to 70°C

Storage Temp.

: 30°C to 85°C

Power Supply

: 230V AC


: ±0.5% of F.S Typ ± 1 Digit

Electrode Connection

: BNC Pins

Electrode Type

: mV


: 4-20 mA, 2 Wire


: Total Dissolved Solids Factor can be read directly in ppm on the third range (1999μS/cm) by selecting the front panel ‘ TDS’ Switch


: Powder Coated Metallic Cabinet


: Panel Mounting, 92mm x 92mm Cut-Out

Front Facia

: 96mm x 96mm


: Through Trimpot on the front facia
